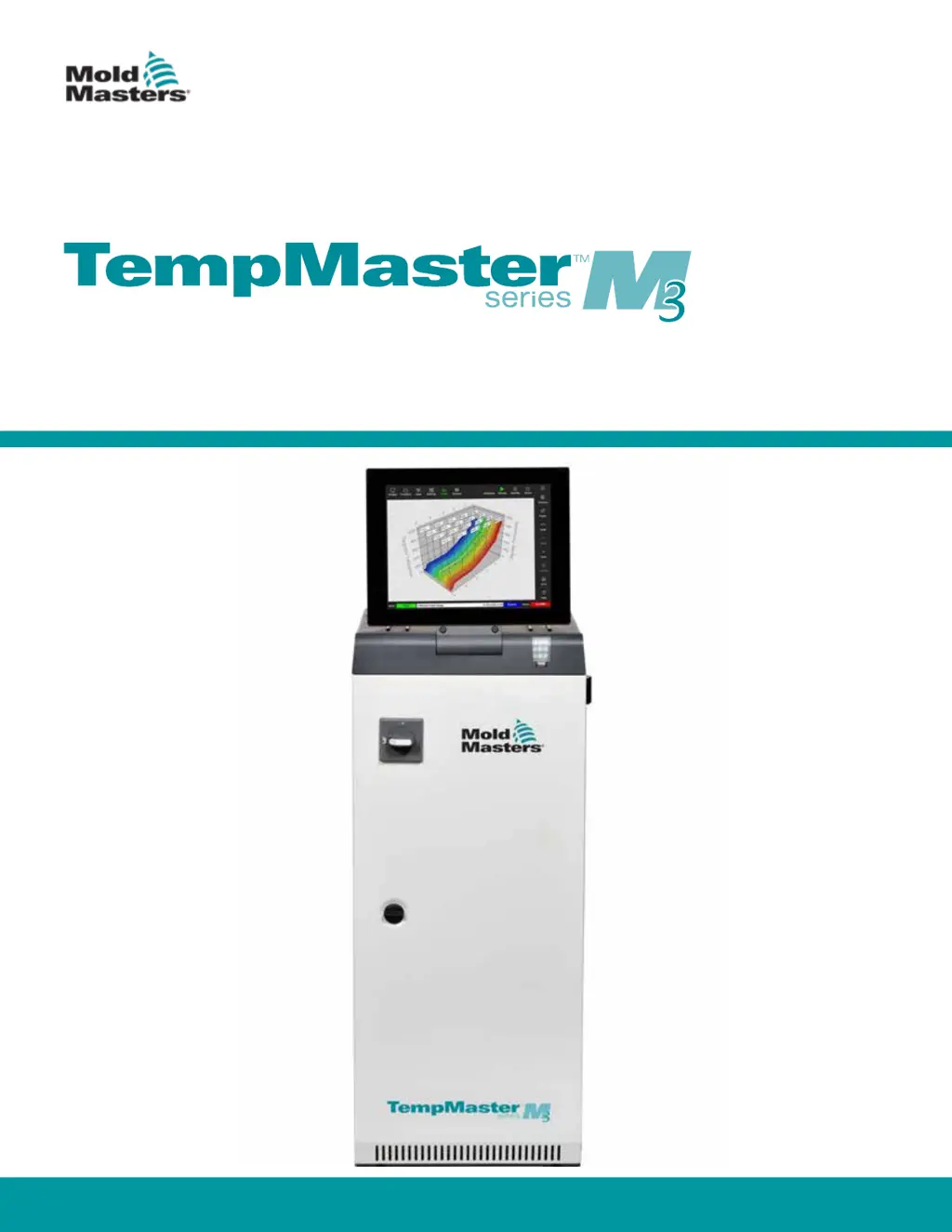

Mold-Masters TempMaster M3 Series - User Manual

Mold-Masters TempMaster M3 Series
261 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
User Manual
version 1
Original Instrucons

Table of Contents

Questions and Answers

  • T
    Tracy EllisSep 3, 2025
    What does a LINK error indicate on Mold-Masters TempMaster M3 Laboratory Equipment?
    • S
      sandrahaynesSep 4, 2025
      If your Mold-Masters Laboratory Equipment shows a LINK error, it means the console is switched to a remote controller with a network link but cannot communicate with it. Check that the network link is good and / or the remote controller is still switched on and available.
  • K
    Katherine RodriguezSep 18, 2025
    What does HELP error mean on Mold-Masters TempMaster M3?
    • H
      harold87Sep 18, 2025
      If your Mold-Masters Laboratory Equipment displays HELP, there is a system failure and the console does not know how to respond. Make a note of the serial numbers for both the controller and console. Also note the console software date on Information screen. Contact your supplier with this information.
  • E
    Edward GillespieSep 16, 2025
    What does USB4 error mean on Mold-Masters TempMaster M3 Laboratory Equipment?
    • B
      brian40Sep 16, 2025
      If your Mold-Masters Laboratory Equipment displays USB4, the M3 Comms board has been disconnected from the console. Check the connection between the M3 Comms board and the console.
  • T
    Thomas JamesSep 14, 2025
    What to do if Mold-Masters TempMaster M3 Laboratory Equipment displays RTD error?
    • B
      bettyduranSep 14, 2025
      If your Mold-Masters Laboratory Equipment displays RTD, the RTD monitor cannot see an input (RTD is open circuit). Check the RTD and its wiring for a broken connection.
  • M
    Mary YoungSep 12, 2025
    What does CN/Z error mean on Mold-Masters TempMaster M3?
    • M
      Michele MoraSep 13, 2025
      If your Mold-Masters Laboratory Equipment displays CN/Z, the console has detected a control card, but the card cannot communicate with the console. If all zones show CN/Z and no cards show / flash their SCAN LEDs, check the communication lead between the console and the controller cabinet. If only one or two zones show CN/Z, check the card for faults.
  • R
    Ronald PhillipsSep 12, 2025
    What does the NONE error mean on Mold-Masters TempMaster M3 Laboratory Equipment?
    • J
      Joshua HarrisSep 12, 2025
      If your Mold-Masters Laboratory Equipment displays NONE, the console has detected a control card that has no settings. This error message may be seen briefly during switch on, but it should disappear after the initial card scan. If the message persists then you may need to reapply the correct card settings.
  • S
    Sierra BurnsSep 9, 2025
    What causes an OVER error on Mold-Masters TempMaster M3 Laboratory Equipment?
    • B
      bradleyzacharySep 9, 2025
      If your Mold-Masters Laboratory Equipment shows OVER, the RTD zone has detected a temperature above 99°C. Check that a different RTD has not been fitted.
  • B
    Barbara YoungSep 7, 2025
    What does HIGH / LOW mean on Mold-Masters Laboratory Equipment?
    • C
      Corey OlsonSep 7, 2025
      If your Mold-Masters Laboratory Equipment displays HIGH / LOW, the waterflow sensor has detected a high or low flow rate. The coolant water system should be checked for blockages and leaks to ensure that overheating does not occur. Note: Waterflow is a monitored condition only, and these messages will not cause a pause or shutdown of the system.
  • C
    christinefreemanSep 6, 2025
    What should I do if Mold-Masters TempMaster M3 shows a CREV error?
    • M
      Michael MitchellSep 6, 2025
      If your Mold-Masters Laboratory Equipment displays a CREV error, the card has detected an abnormal input at the thermocouple termination, indicating a shorted or reversed thermocouple. If the CREV alarm persists then you should switch off the controller and investigate the malfunctioning zone. Alternatively you could slave the malfunctioning zone to a good zone until you have time to clear the fault.
  • V
    vyoungAug 21, 2025
    How to replace a blown fuse in Mold-Masters TempMaster M3 Laboratory Equipment?
    • R
      Raven BarberAug 21, 2025
      If the output fuse for a zone fails in your Mold-Masters Laboratory Equipment, this is due to an external fault. First, identify and fix the fault. Then, replace the fuse with a High Rupture Current load fuse of the same rating and type. The blown fuse is located on the control card.

Summary

Section 1 - Introduction

1.1 Intended Use

Describes the M3 controller's purpose and intended application in hot runner plastic molding.

1.7 Units of Measure and Conversion Factors

Lists units of measure and their conversion values for system parameters.

Section 2 - Global Support

2.1 Corporate Offices

Provides contact information for Mold-Masters global and regional offices.

Section 3 - Safety

3.2 Safety Hazards

Details common safety hazards associated with injection molding equipment.

3.3 Operational Hazards

Outlines potential hazards during the operation of the equipment.

3.4 General Safety Symbols

Explains typical safety symbols used for warnings and cautions.

3.6 Lockout Safety

Covers procedures for safely de-energizing equipment during maintenance.

Section 4 - Overview

4.1 Specification

Lists the general technical specifications of the M3 controller and console.

4.4 Screen Layout and Navigation

Explains the user interface layout and navigation elements of the controller.

4.15 The Display Screen

Details the functions and uses of the main display screen.

4.17 Modes of Operation

Describes the different operational modes like Run, Standby, Startup, and Shutdown.

Section 5 - Setup

5.2 Create a New Tool

Guides the user through the process of creating a new tool configuration.

5.3 Configure the Control Cards

Explains how to configure detected control cards and set zone types.

5.5 Configure the Parameters and Settings

Details how to adjust tool and system parameters for optimal performance.

5.6 Set Zone Temperature

Provides instructions on setting or changing the temperature for individual or multiple zones.

5.8 Melt Leakage Detection

Explains the setup and operation of the melt leakage detection system.

Section 6 - Operation

6.1 Switch On the Controller

Step-by-step guide on powering up the M3 controller.

6.3 Login or Logout

Covers the procedures for logging into and out of the controller system.

6.5 Control Modes for All Zones

Details the various control modes available for managing all zones.

6.11 Save a Tool

Describes methods for saving tool configurations, either overwriting or as a new tool.

6.12 Load a Tool Locally

Instructions on how to load a tool configuration from local storage.

6.16 Backup Tool Settings

Explains how to back up tool settings to an external storage device.

Section 7 - User Access and Networking

7.1 User Access Screen

Describes the user access screen and its functionalities.

7.2 Configure User Limitations

Details how to manage user access levels and permissions for functions.

7.7 Configure a Network Connection

Provides instructions for setting up wired and wireless network connections.

Section 8 - Maintenance

8.1 Upgrade Software

Covers the procedure for upgrading the controller's software.

8.2 Check the Touchscreen Alignment

Guides the user through the process of calibrating the touchscreen.

8.3 Self Diagnostic Tests

Details how to perform and interpret various diagnostic tests on the controller.

8.4 Interpret the Test Results

Explains how to understand the outcomes of diagnostic tests.

Section 9 - Troubleshooting

9.1 Controller Card Indicators

Explains the meaning of LED indicators on controller cards for diagnostics.

9.2 System Warning Messages

Lists and explains system warning messages indicating abnormal conditions.

9.4 Fault and Warning Messages

Provides a comprehensive list of error messages, their causes, and actions.

Section 10 - Controller Wiring

10.1 Three Phase Designation - Star; Delta Option

Covers wiring configurations for three-phase power supply options.

10.2 Connect the Star; Delta Option

Details how to connect the Star/Delta option in the cabinet.

10.7 USB Port

Describes the functions enabled by the USB port.

Section 11 - Quad IO Options

11.1 Quad IO Screen

Covers the configuration of the built-in Quad IO card parameters.

11.3 Quad IO - Inputs

Lists and describes the available input options for the Quad IO card.

11.4 Quad IO - Outputs

Lists and describes the available output options for the Quad IO card.

11.6 Remote Tool Selection

Explains how to enable remote tool loading using the IO5 card.
