Molnar 4 Post Hoist SM4X0

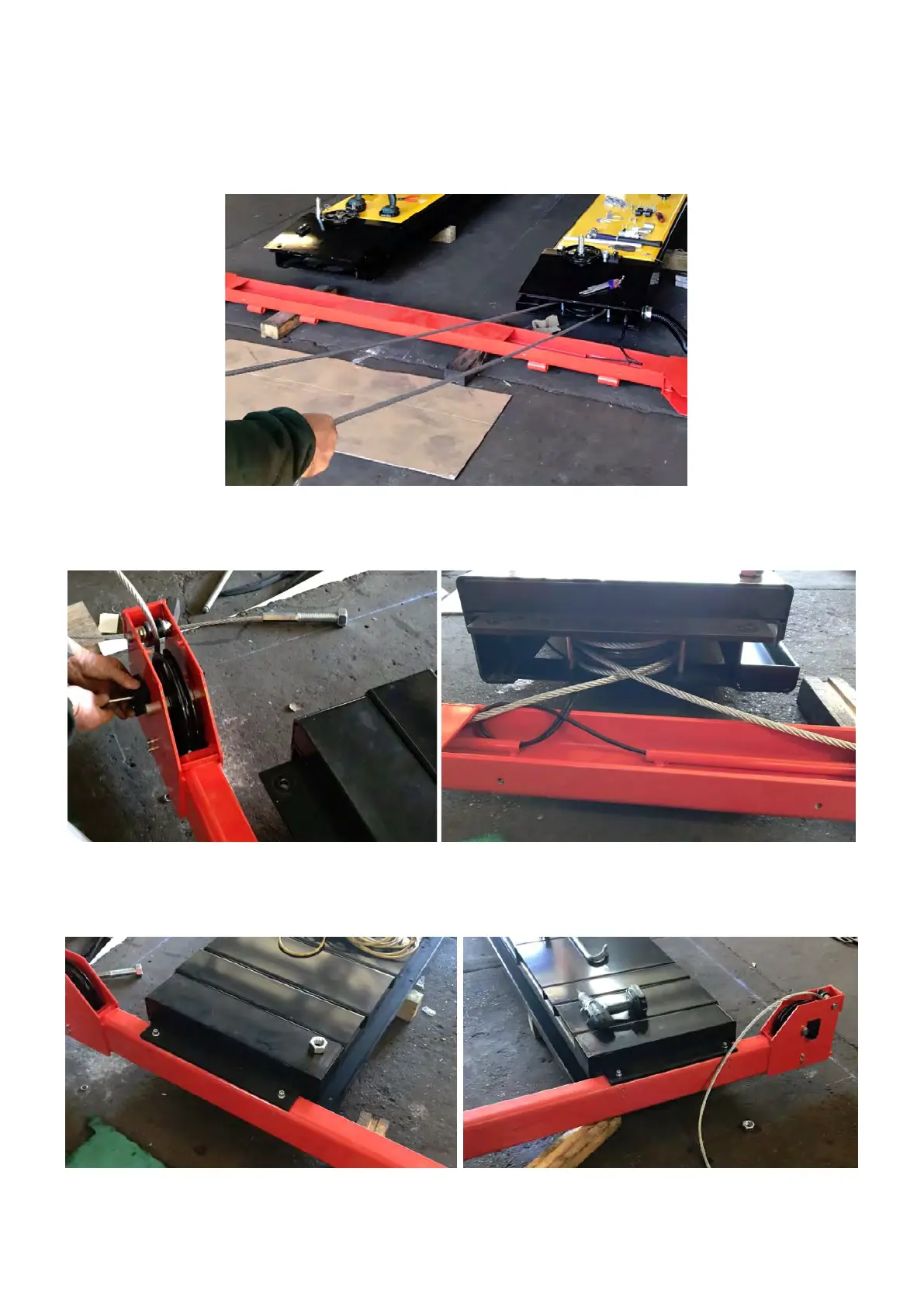

4. Take out the control platform cable and put it to the control end transverse beam. This is best done
with 2 people, one at each end of the platform pulling out each cable (one in each hand).
Please ensure the cables are positioned correctly on the platform pulleys. (Refer to
cable arrangement diagram at the back of this manual.)
NOTE! Fix nuts on each end of the cables to protect the thread from damage
5. Starting with the non-control end transverse beam, bring the cables through the ends of the
transverse beam and reassemble the pulleys in the reverse order that they were disassembled.
6. Attach the platforms to the non-control transverse beam.
NOTE! The pulley pins require greasing, further info on page 15 of this manual.
