366 • SECTION 10 — CHASSIS INFORMATION DYNASTY 2006

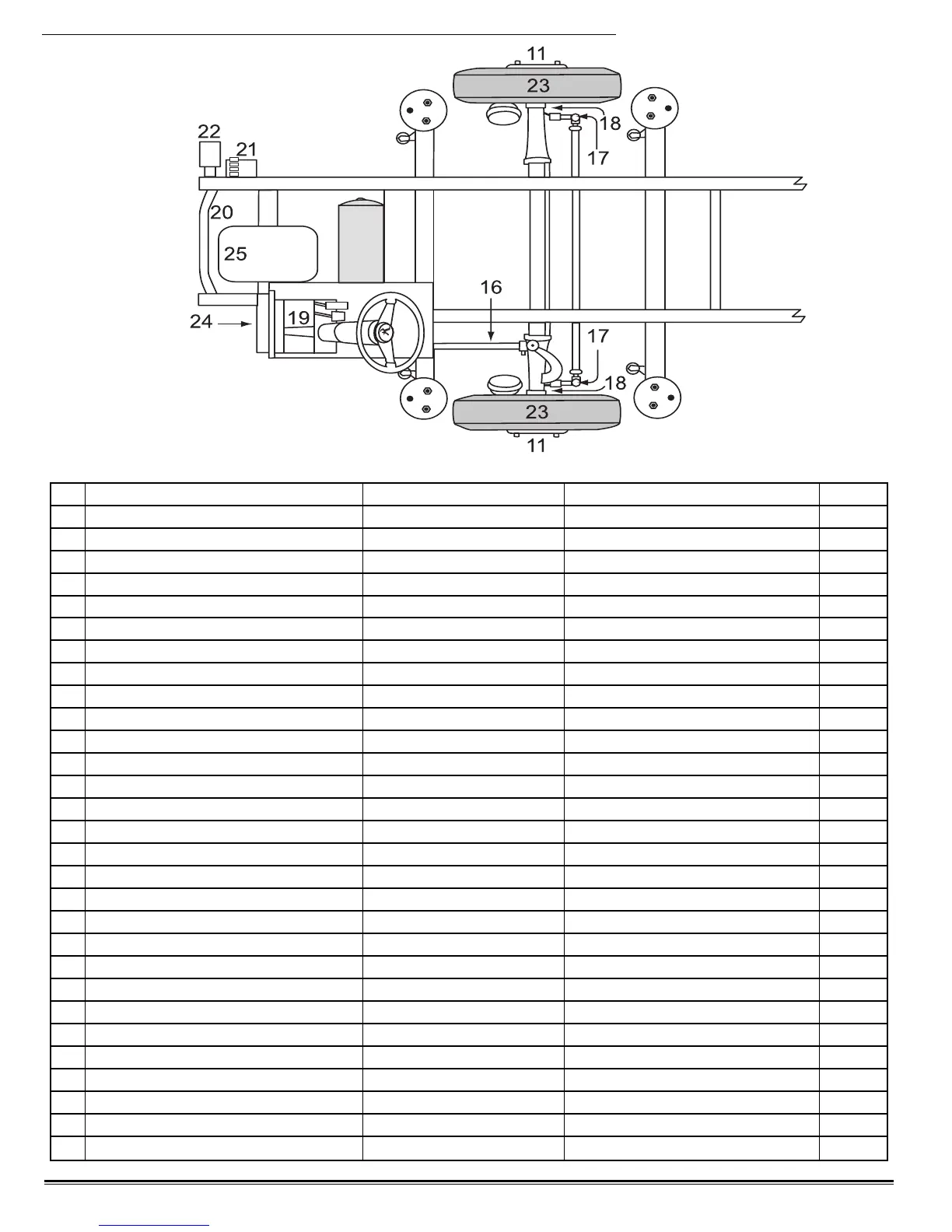

LUBRICATION CHARTS
Component: Action: When: Code
1. Engine Oil Fill/Dipstick Keep to Full Mark Before Each Trip + Daily En route EO
2. Engine Oil Filter Replace At Oil Change OEM
3. Transmission Keep to Full Mark Refer to OEM Manual TS
4. Engine Coolant Reservoir Replace Refer to OEM Manual AF
5. Hydraulic Fluid Reservoir Keep to Full Mark Quarterly TF
6. Hydraulic Filter Replace 15,000 or Annually TF
7a. Filter Fuel/Water Separator (Primary) Replace 15,000 or 6 Months FF
7b. Filter Fuel (Secondary) Replace Refer to OEM Manual OEM
8. Air Dryer Filter Replace 2 -3 Years -
9. Radiator/Charge Air Cooler Inspect Weekly OEM
10. Coolant Filter Replace Refer to OEM Manual -
11. Wheel Bearings Re-pack 30,000 or Annually HT
12. Rear Differential To Filler Plug 250,000 or 3 Years MP
13. Slack Adjusters/S-Cams Grease-3 Fittings ea. 10,000 or 6 Months CL
14. Drive Shaft Universal Joints Grease-2 Fittings 10,000 or Annually CL
15. Drive Shaft Slip Yoke Grease-1 Fitting 10,000 or Annually CL
16. Drag Link Grease-2 Fittings 5,000 or 6 Months CL
17. Center Link Grease-2 Fittings 5,000 or 6 Months CL
18. Spindles/Kingpins Grease-2 Fittings ea. 5,000 or 6 Months CL
19. Steering Intermediate Shaft Grease-3 Fittings 30,000 or Annually CL-4
20. Air Tank Drains Drains Monthly -
21. HWH Reservoir Keep to Full Mark 6,000 or 3 Months TF
22. RVA Reservoir Keep to Full Mark 6,000 or 3 Months TF
23. Tire Pressure Check Before Each Trip + Daily En route -
24. Steering Box Grease-1 Fitting Twice a Year CL
25. Generator Refer to Service Manual Refer to OEM Manual OEM
26. Batteries Inspect Every 2 Weeks DW
Batteries Apply Coating 10,000 or Quarterly P
27. Tag Axle -Oil Bath Hubs Keep to Full Mark Before Each Trip + Daily En route
MP
070173m
