Monacor ATS-42R User Manual

ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
Copyright
©
by MONACOR INTERNATIONAL. All rights reserved.
A-1359.99.03.10.2018

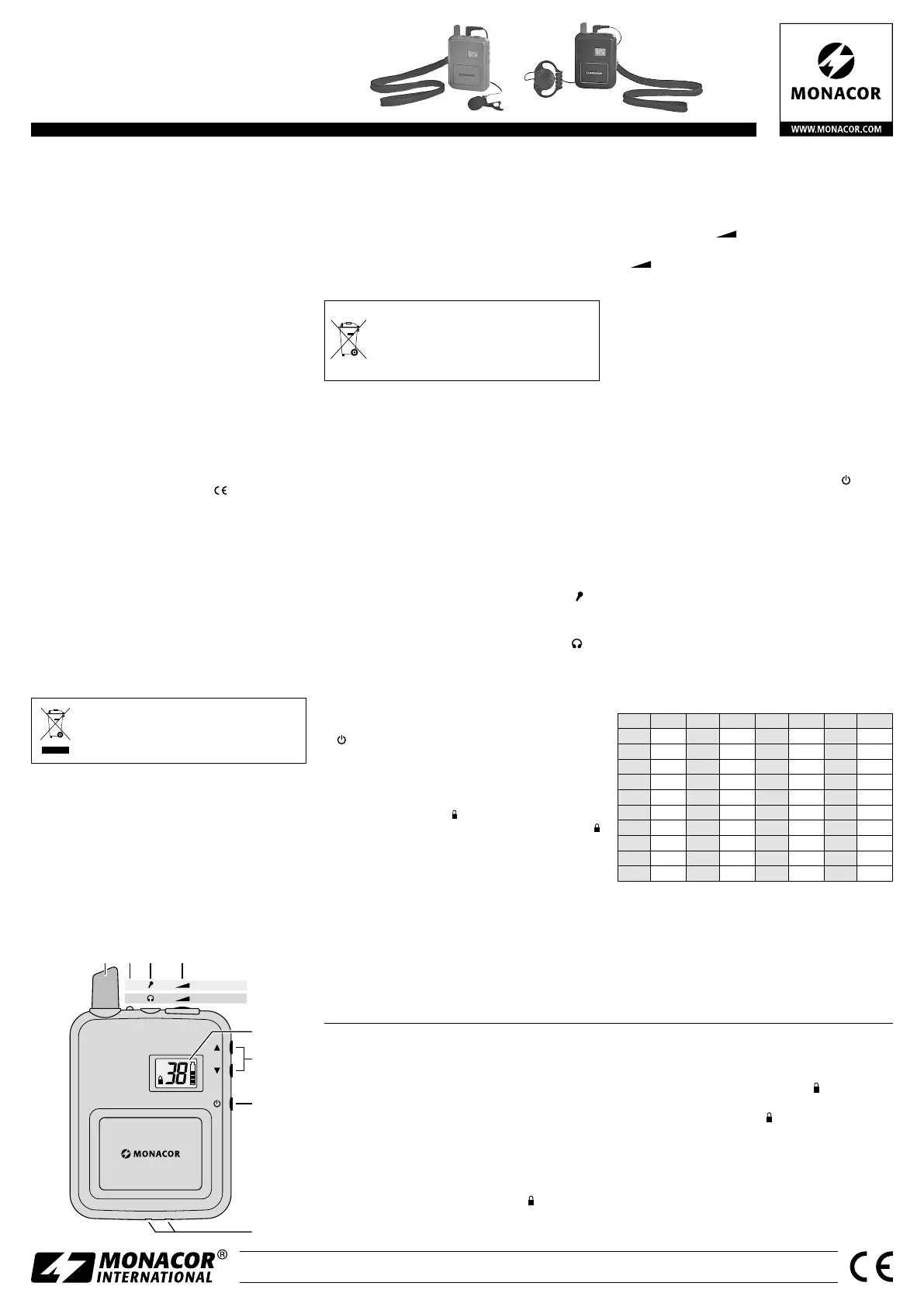

RX
TX
ATS-42T
ATS-42R
1 2 3 4
5
6
7
8
ATS-42R Order number 25.4560
ATS-42T Order number 25.4570
1 Antenna
2 Indicator LED
ATS-42T: transmitter switched on
ATS-42R: a signal is received
3 3.5 mm jack
ATS-42T: for the microphone
ATS-42R: for the earphone
4 Volume control
ATS-42T: for the microphone
ATS-42R: for the earphone
5 Display to indicate the lock feature , the trans-
mission channel (01 – 40) and the battery status
6 Buttons for setting the transmission channel
Five seconds after switching on and five seconds
after pressing a button, the buttons will be
locked automatically: The symbol appears
on the display. To unlock, keep both buttons
pressed until the symbol disappears.
7 On / off switch: keep it pressed for approx.
1second
8 Contacts to recharge the batteries inserted via a
suitable charger
(e. g. TXA-12C, TXA-36C, TXA-800PS)
Voice Transmission System
These instructions are intended for users with-
out any specific technical knowledge. Please
read the instructions carefully prior to operation
and keep them for later reference.
1 Applications
In combination with one or multiple receivers ATS-
42R, the transmitter ATS-42T provides a mobile wire-
less system for transmitting spoken language, e. g.
for guided tours, lectures in different languages or
wireless command transmission. For wireless trans-
mission, 40 channels are available in the frequency
range 863 – 865 MHz; up to 12 of these channels
may be used at the same time without mutual in-
terference. The transmission range depends on local
conditions and may reach 50 m as a maximum.
2 Important Notes
The units correspond to all relevant directives of the
EU and are therefore marked with .
•
The units are suitable for indoor use only. Protect
them against dripping water and splash water,
high air humidity and heat (admissible ambient
temperature: 0 – 40 °C).
•
For cleaning only use a dry, soft cloth; never use
water or chemicals.
•
No guarantee claims for the units and no liability
for any resulting personal damage or material dam-
age will be accepted if the units are used for other
purposes than originally intended, if they are not
correctly connected or operated, or if they are not
repaired in an expert way.
If the units are to be put out of operation
definitively, take them to a local recycling
plant for a disposal which is not harmful to
the environment.
2.1 Conformity and approval
Herewith, MONACOR INTERNATIONAL declare that
the units ATS-42R and ATS-42T comply with the di-
rective 2014 / 53 / EU. The EU declarations of conform-
ity are available on the Internet:
www.monacor.com
The units are generally approved for operation in EU
and EFTA countries; they are licence-free and require
no registration.
3 Before Operation
3.1 Inserting / Replacing the batteries
To insert or replace the batteries, remove the cover
of the battery compartment on the rear side of the
unit. Insert two batteries of size AA as indicated in
the compartment, then replace the cover. If the unit
is not in use for a longer period of time, remove the
batteries to prevent damage to the unit due to bat-
tery leakage.
Never put discharged batteries / defective
rechargeable batteries in the household
waste. To protect the environment, always
take them to a special waste disposal, e. g.
collection container at your retailer.
3.2 Recharging the batteries
Instead of batteries, rechargeable NiMH batteries
can be used for the transmitter and the receiver. To
recharge the batteries, the charging stations TXA-
12C, TXA-36C and TXA-800PS are available. Put
the receiver and the transmitter into these charging
stations, including the batteries inserted.
CAUTION! If you use non-rechargeable batteries for
the units, never put them in the charging station. If
you try to recharge non-rechargeable batteries, they
may leak or even explode.
3.3 Connecting the microphone and the earphone
1) Connect the microphone provided to the jack (3)
of the transmitter (grey housing) and use the clip
to fasten it to your clothes (e. g. tie, lapel).
2) Connect the earphone provided to the jack (3)
of the receiver (black housing) and attach it to your
ear.
4 Operation
1) First switch on the receiver only: Keep the button
(7) pressed until the display (5) shows “On”.
2) Press the button  or  (6) to set a free transmis-
sion channel on the receiver.
Note: Five seconds after switching on and five seconds
after pressing a button, the buttons will be locked auto-
matically: The symbol appears on the display. To
unlock, keep both buttons pressed until the symbol
disappears.
The LED RX (2) must not light up. If it lights up,
interference or signals from other transmitters are
received. In this case, use a different channel.
3) Switch on the transmitter; the LED TX (2) lights up.
Set the transmitter to the transmission channel of
the receiver. Once a signal is received, the LED RX
will light up on the receiver.
Note: If no signal is received for 20 minutes (in this
case, the LED RX will not light up), the receiver will be
switched off automatically to save the batteries.
4) Use the control (4) on the receiver to set the
desired volume for the earphone and the control
on the transmitter to set the volume for the
microphone so that the microphone signal is nei-
ther distorted (in this case reduce the volume) nor
noisy (in this case increase the volume).
Caution! Never adjust the earphone to a very high
volume. Permanent high volumes may damage
your hearing!
5) If several ATS-42 systems are used at the same
time for transmitting different kinds of information
or different languages, set a different transmission
channel for each separate system. You will be able
to make twelve voice transmissions at the same
time if you set the following channels:
1, 2, 13, 17, 19, 20, 21, 22, 24, 28, 39, 40.
6) To switch off the units, keep the button of each
unit pressed until the display shows “OF”.
5 Specifications
Transmission frequency: . . 863 – 865 MHz
Transmission power: . . . . . ≤ 10 mW (EIRP)
Range: . . . . . . . . . . . . . . . approx. 50 m
Power supply: . . . . . . . . . . 2 × battery or
rechargeable NiMH
battery of size AA
Ambient temperature:
. . . 0 – 40 °C
Dimensions, weight: . . . . . 66 × 102 × 26 mm, 60 g
Channel assignment
Channel MHz Channel MHz Channel MHz Channel MHz
01 863.075 11 863.175 21 863.025 31 863.125
02 863.275 12 863.375 22 863.225 32 863.325
03 863.475 13 863.575 23 863.425 33 863.525
04 863.675 14 863.775 24 863.625 34 863.725
05 863.875 15 863.975 25 863.825 35 863.925
06 864.075 16 864.175 26 864.025 36 864.125
07 864.275 17 864.375 27 864.225 37 864.325
08 864.475 18 864.575 28 864.425 38 864.525
09 864.675 19 864.775 29 864.625 39 864.725
10 864.875 20 864.975 30 864.825 40 864.925
Subject to technical modification.
English
