Blower Installation:
1. Install blower through rear access panel, removed
previously.
2. Route wires under the blower base
3. Turn the discharge vent so it is facing up. Slip
the discharge vent ange under the ange of the
mounting bracket ush up against the back wall.
4. Slide the side tabs over into the side ange. See
Figure 6.
Variable Speed Control Installation:
1. Remove the knob from the speed control.
2. Remove Blower Switch Bracket. See Figure 6.
3. Using the side access panel removed earlier reat-
tach the variable speed control to the side access
panel. See Figure 22.
4. Route wiring along the side of the chamber back
towards the blower. Wire per wiring diagram. See
Figure 13.
5. Reinstall the side access panel with the variable
speed control by adjusting the rheostat to align with
the hole in the venting support. The stem should
protrude through the hole in the venting support.
Attach the side access panel with 1 screw previ-
ously removed.
6. Reattach knob onto stem of rheostat.
Finishing Installation:
1. Conrm the wires are routed correctly under the
blower base.
2. Plug power cord into junction box in FAN plug.
3. Reinstall rear access panel with 6 screws previous-
ly removed.
4. Reinstall rebrick panels, burner and log set if pre-
viously installed. Refer to burner / log set instruc-
tions for correct placement.

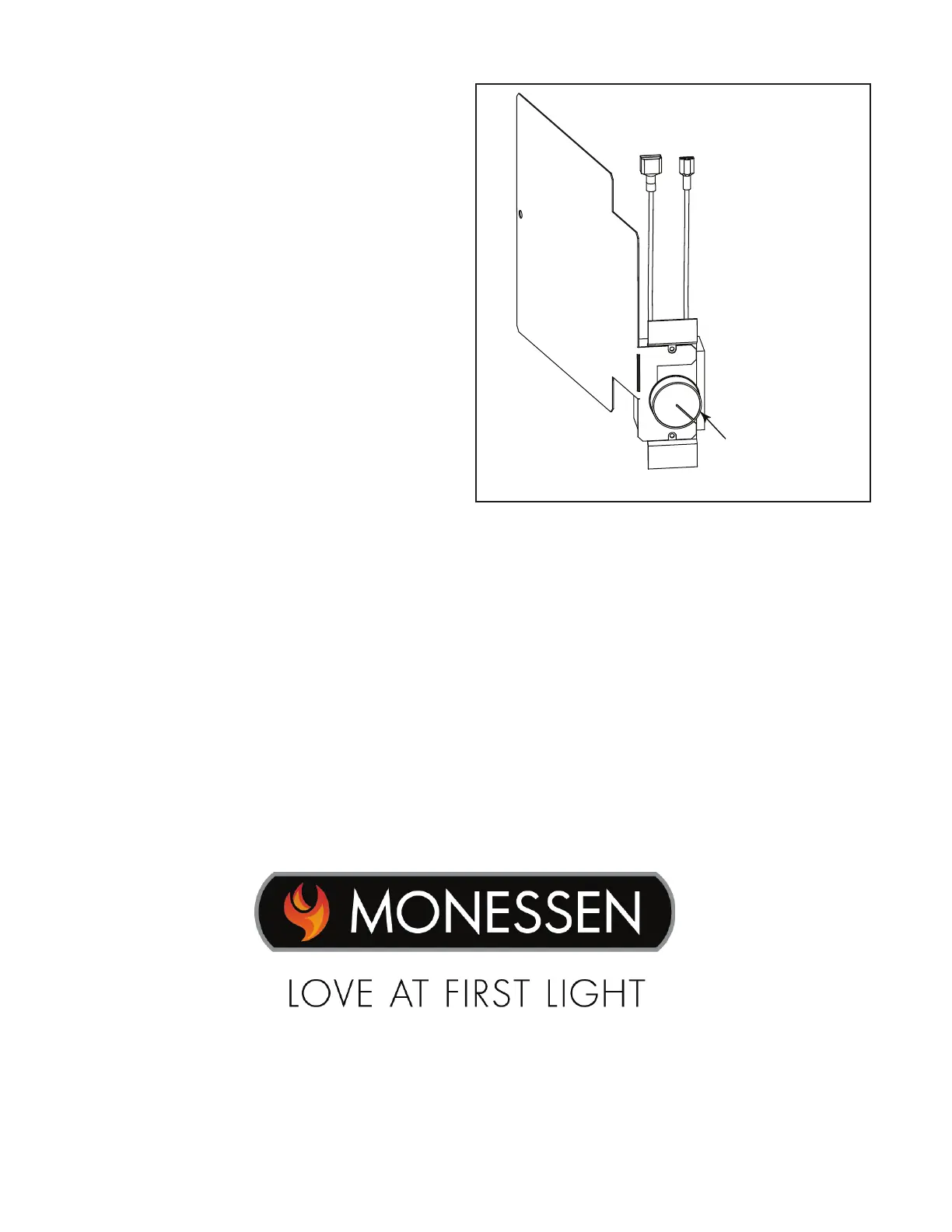

Speed control
attached to side
access panel
Figure 22
