Mongoose M20 - Wiring Information; Wiring Diagram and Connections; Jumper Settings and Options

WIRING INFORMATION: Installation to be carried out by suitably qualified persons.
MSP20 is a 12v multi-purpose siren for M20 only. Use Purple (+) trigger wire for M20.
RED = +12v BLACK = ground BLUE = negative trigger PURPLE = positive trigger
W / JUMPER MANUAL ARMING (DEFAULT)
OPEN AUTOMATIC (LAST DOOR) ARMING
W / JUMPER IGNITION SAFETY DOOR LOCK
W / JUMPER 0.5 SEC CDL OUTPUT (DEFAULT)
OPEN 3.0 SEC CDL OUTPUT
OPEN TURNS OFF THIS FEATURE (DEFAULT)
1
2
3
W / JUMPER * NSW SIREN TIMING
OPEN STANDARD SIREN TIMING (DEFAULT)
4

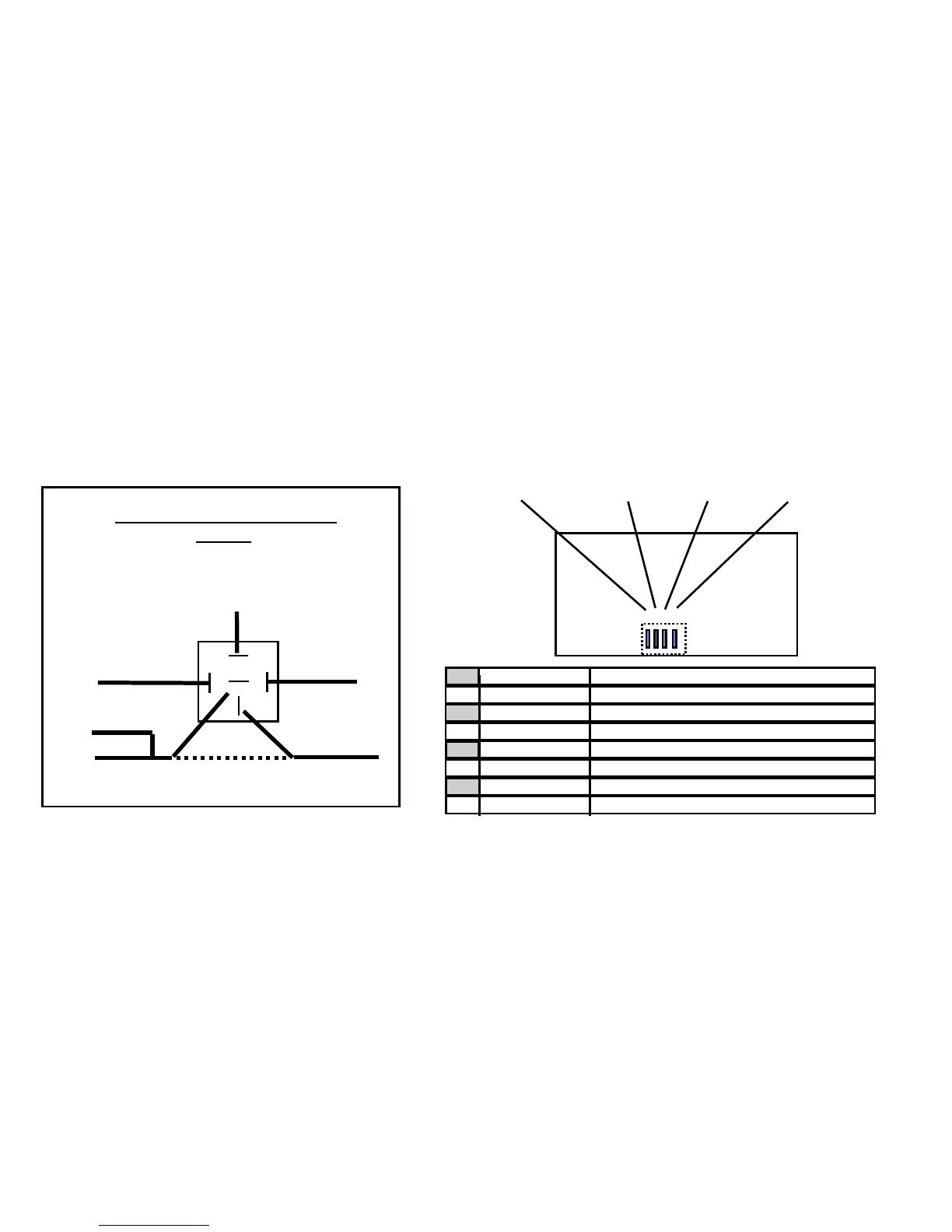

NSW SIREN (4) - AUTO ARMING (3) - IGN LOCK (2) - CDL PULSE (1)
4 3 2 1
+V FUSED
CONSTANT
87
85
86
30
87
THIN RED OF M20/24
+V FOR POSITIVE DOOR SWITCHES
OR
(-) GROUND FOR NEGATIVE DOOR SWITCHES
DOME LIGHT SUPERVISION
RELAY
OPTIONAL EXTRA COST CONNECTION

TO DOME LIGHT
TO DOOR
WIRE
TO DOOR
CUT AFTER ALL
DOOR SWITCHES
