3 Assembly
20

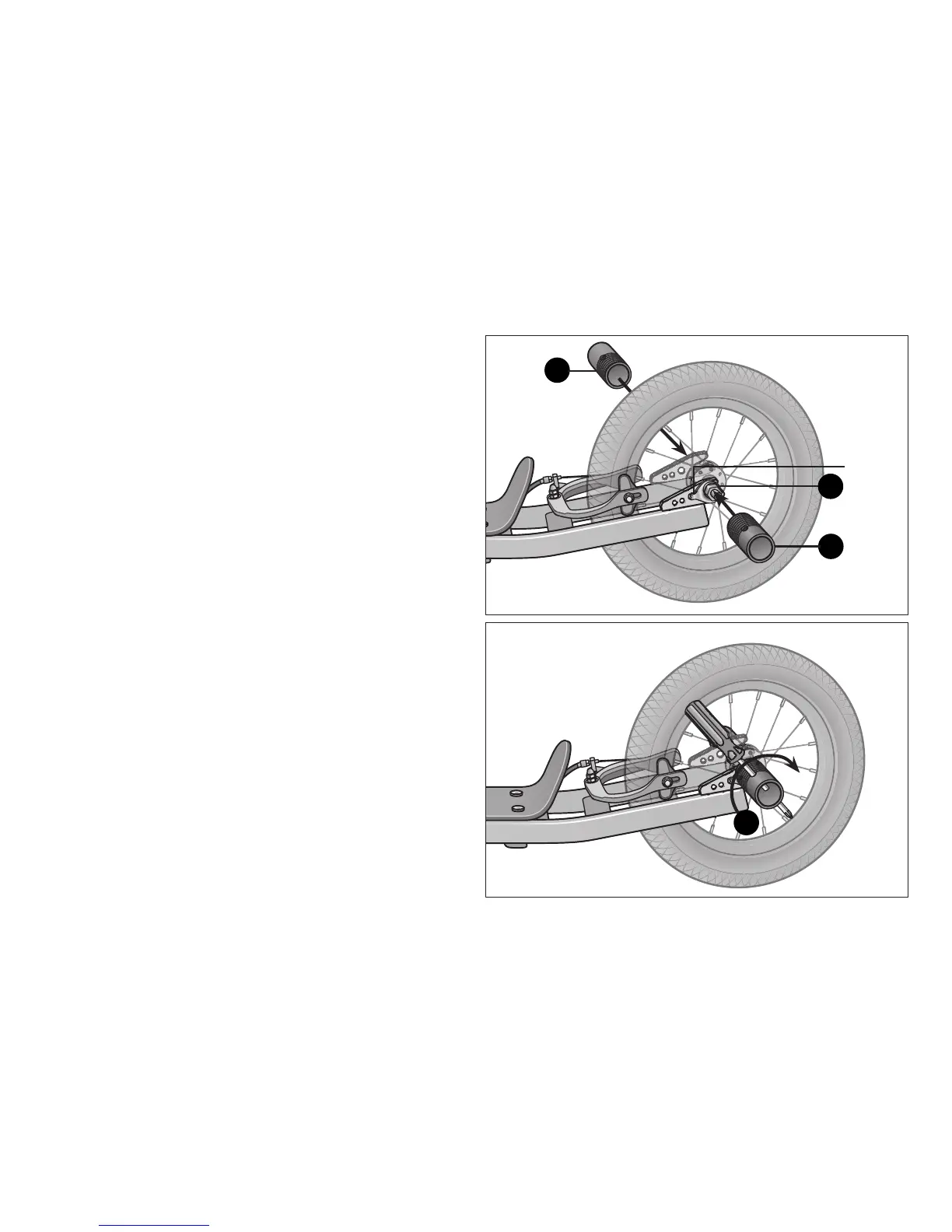

Figure 3.12
Figure 3.13
ATTACH THE PEGS
Important! Periodically check to make sure pegs are ght.
Some models may come equipped with 2 or 4 pegs.
To install pegs:
❶ Do not loosen or remove axle nuts.
❷ Check to make sure axle nuts are properly ghtened before
installing pegs. Figure 3.12
❸ Thread the pegs on the axle over the axle nut.
❹ Insert a screwdriver or similar tool through the peg holes
and ghten by turning the peg with the tool. Figure 3.13
Axle nut
Clip
retaining
washer
2
3
Peg
3
Peg
4
