The only difference with the RS-485 port is choosing whether you want 2-wire RS-485 or 4-
wire RS-485 or RS-422. This screen is shown in Figure 6.4 below.

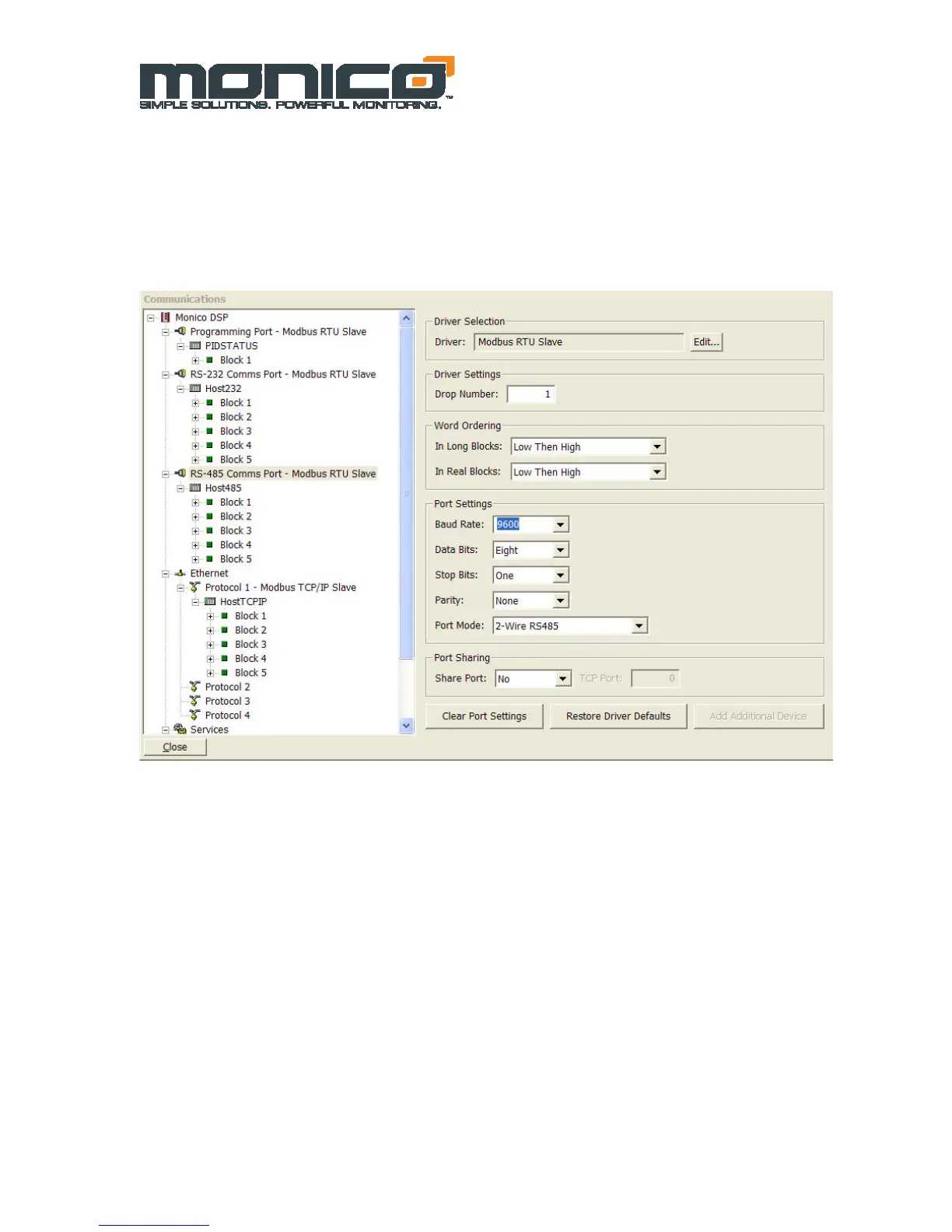

Figure 6.4: RS-485 Serial Port Settings
Settings for the Ethernet port are show in Figure 6.5 and include setting the Port Mode where
you set whether to Manually Configure the IP address, request an IP address from a DHCP
server or use IEEE 802.3. Then enter the IP address if manually configured and the
associated Network Mask and Gateway.
