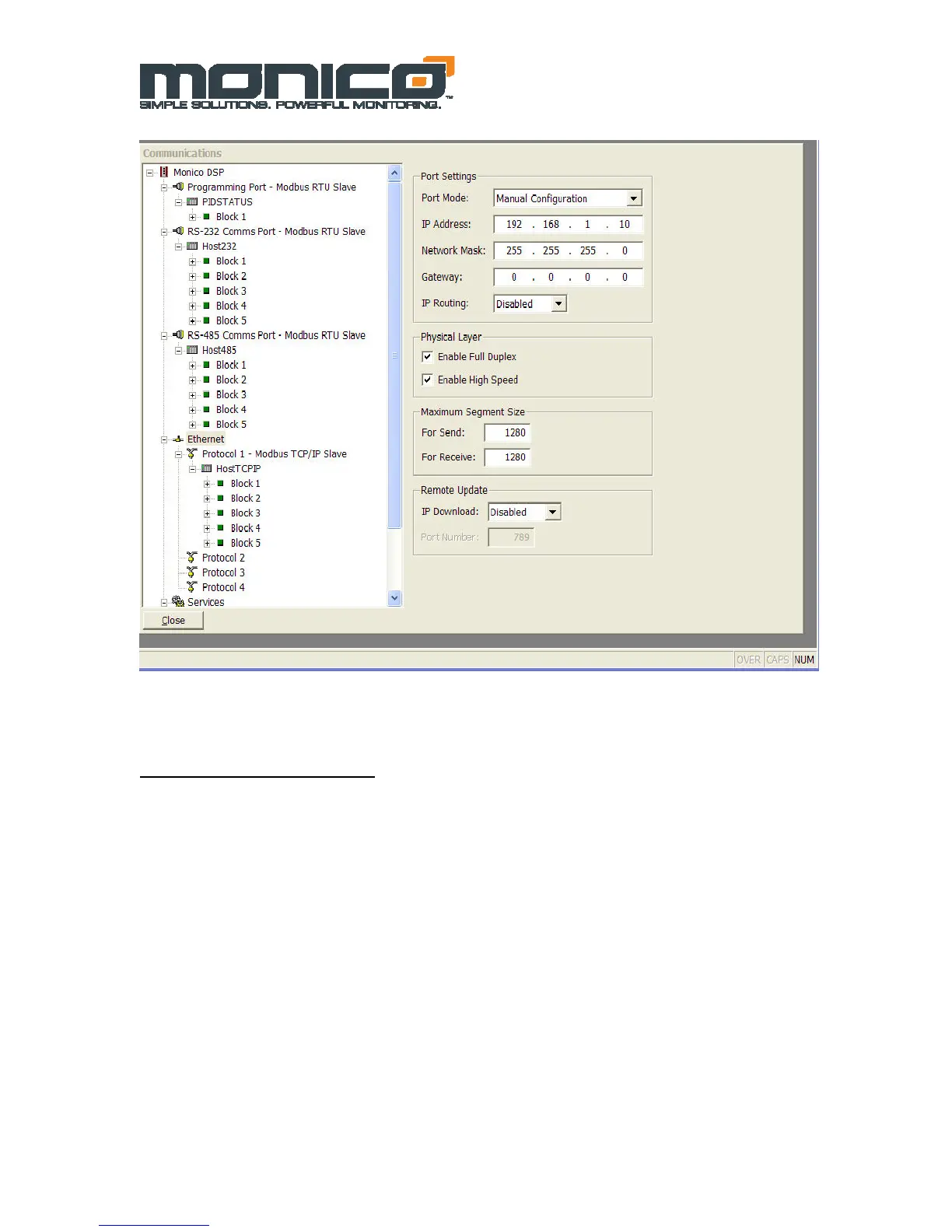

Figure 6.5: TCP/IP Ethernet Port Settings
Disabling and Enabling Ports
The CDL Gateway™ is a standard product that ships pre-configured with all ports active and
populated with a full array of values. Since each port will have over 400 registers to update,
it is recommended that you disable the unused ports by selecting the port and unchecking the
box under Device Settings labeled ENABLE DEVICE as shown in Figure 6.6 below. By
disabling unused ports you will maximize the performance of the Gateway.
