Monitor Audio IV140 User Manual

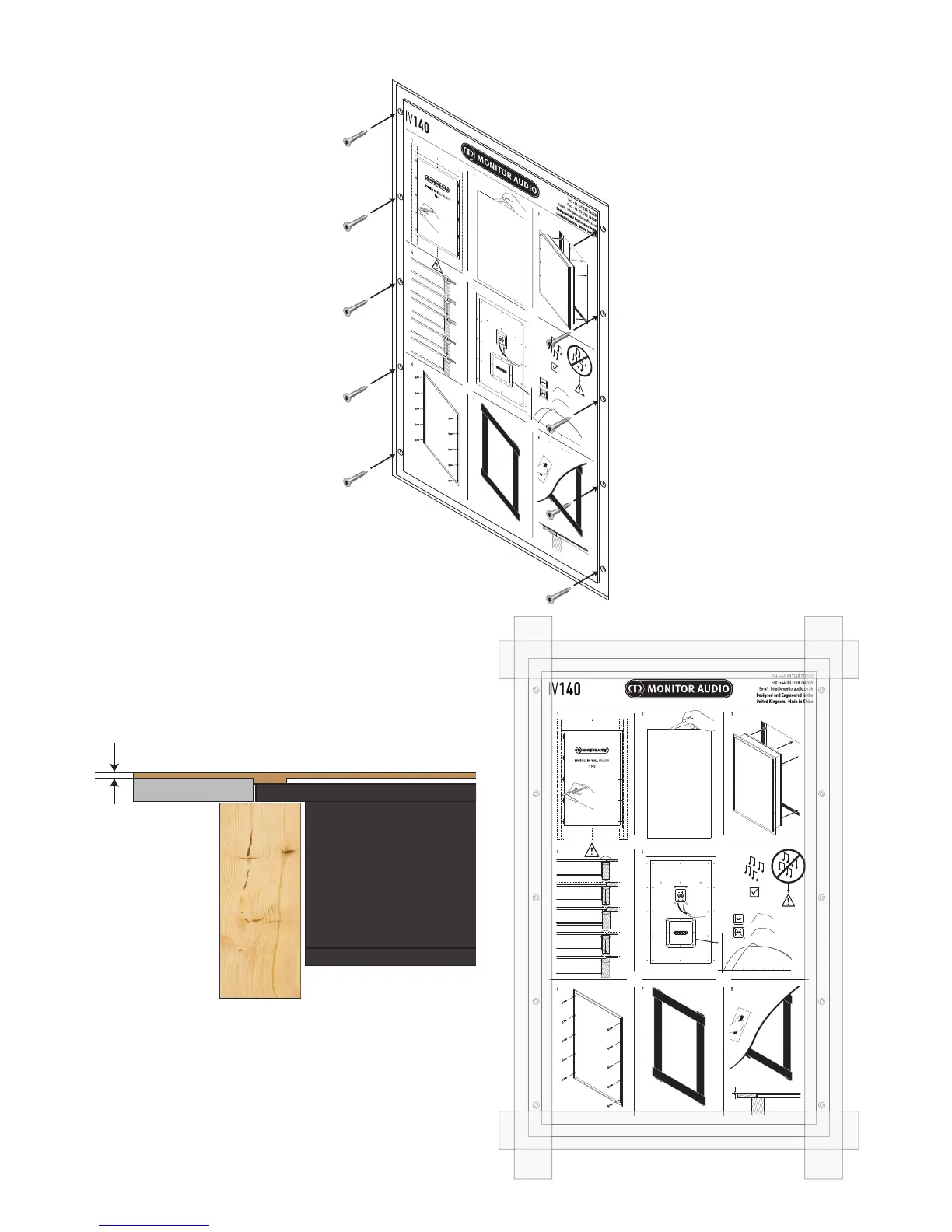

7. Once you are happy with your installation and sound choice, screw the speaker in place
8.
C
L
400mm (16”)
5
4
5
4
5
3mm
50 100 150 200 250 Hz
Apply webbed tape over the screws so that it bridges the gap between
the speaker membrane and the plasterboard. The card shims can be
used here as well if you wish to reduce the void between the outer
edge of the frame and the membrane - plasterboard level.
9. Plaster the speaker into the wall with no more than 3mm of plaster.
C
L
400mm (16”)
5
4
5
4
5
3mm
50 100 150 200 250 Hz
3mm

Monitor Audio IV140 Specifications

General

Brand	Monitor Audio
Model	IV140
Category	Speakers
Language	English
