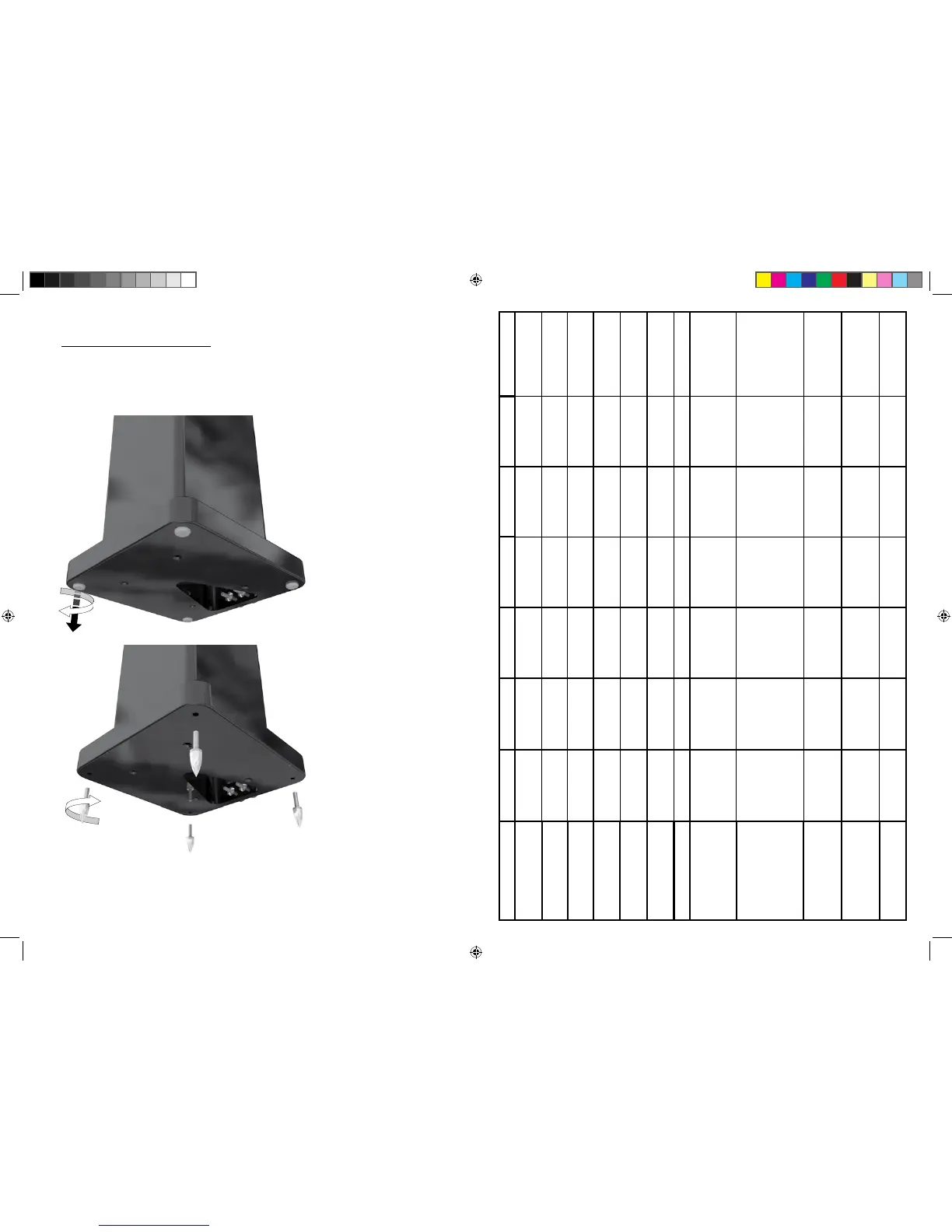

R270 Feet and Spikes
Your R270
HD
will come with rubber feet inserted into the plinth inserts (pictured below). This
is for use on hard floors or when spikes are inappropriate to use.
HD
If you wish to use spikes, you
can remove the rubber feet by
simultaneously twisting and
pulling them.
The threaded inserts in the
plinth will be revealed when
the rubber feet are removed.
Take the spikes and twist
them in a clockwise direction
in to the plinths. Ensure they
are fully inserted and stand
the cabinet up and place it
in it’s final location to see
if it is stable and level. If
it is not adjust the spikes
accordingly and then
tighten the knurled locking
nut to hold the spikes in
that position.
Radius
HD
10
Model Radius 45
HD
Radius 90
HD
Radius 180
HD
Radius 225
HD
Radius 250
HD
Radius 270
HD
R one
HD
Frequency
Response
120Hz – 20 KHz 80Hz – 35 KHz 60 Hz – 35 KHz 55Hz – 35KHz 50Hz – 35KHz 48Hz - 35KHz
C: 55Hz – 35KHz
L/R: 85Hz – 35KHz
Sensitivity (1W@1M)
87dB 87dB 87dB 90dB 90dB 90dB
C: 90dB
L/R: 87dB
Nominal Impedance
8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms
C: 8 Ohms
L/R: 8 Ohms
Power Handling
Single (R.M.S)
25W 60W 60W 100W 100W 100W C: 100W L/R 60W
System Power
Handling (RMS)
50W 100W 100W 150W 150W 150W
C: 150W
L/R: 100W
Recommended Amp
Requirements
5-50 W 10-100 W 10-100W 20-150W 20-150W 20 - 150W
C: 20-150W
L/R: 10-100W
Maximum SPL (dBA)
101 105 105 108 108 108 108
Bass Alignment
Sealed Cabinet
Bass reflex –rear
ported
Bass reflex –
front ported
Bass reflex –
front ported
Bass reflex –
front ported
Bass Reflex -
Front & Rear
Ported
C: Bass reflex –
front ported
L/R: Bass reflex –
ported to underside
Drive Unit
Complement
1x 3” MMP2
cone mid-bass
driver.
1 x 20mm
C-CAM gold
dome tweeter
1x 4” MMP2
cone bass/ mid
driver.
1 x 25mm
C-CAM gold
dome tweeter
1x 4” MMP2
cone bass/ mid
driver.
1 x 25mm
C-CAM gold
dome tweeter
2x 4” MMP2
cone bass/ mid
driver.
1 x 25mm
C-CAM gold
dome tweeter
2x 4” MMP2
cone bass/ mid
driver.
1 x 25mm
C-CAM gold
dome tweeter
2x 4” MMP2
cone bass/ mid
driver.
1 x 25mm
C-CAM gold
dome tweeter
4x 4” MMP2 cone
bass/ mid driver.
3 x 25mm C-CAM
gold dome tweeter
External
Dimensions. mm
(H x W x D)
100 x 100 x 100 198 x 125 x 140 350 x 125 x 105 610 x 125 x 105 760 x 125 x 105
100 x 125 x 140
(Without spikes)
1010 x 125 x 105
External
Dimensions. inch
(H x W x D)
3 15/16 x
3 15/16 x
3 15/16
7 13/16 x
4 15/16 x
5 1/2
13 3/4 x
4 15/16 x
4 1/8
24 x 4 15/16 x
4 1/8
29 15/16 x
4 15/16 x 4 1/8
39 3/8 x
4 15/16 x 5 ½
(Without spikes)
39 3/4 x 4 15/16 x
4 1/8
Weight (each)
Kg ( Ib)
0.95 (2 1/8) 2 (4 3/8) 2.8 (6 1/8) 4.8 (10 1/2) 5.2 (11 1/2) 10.2 (22 1/2) 8 (17 5/8)
