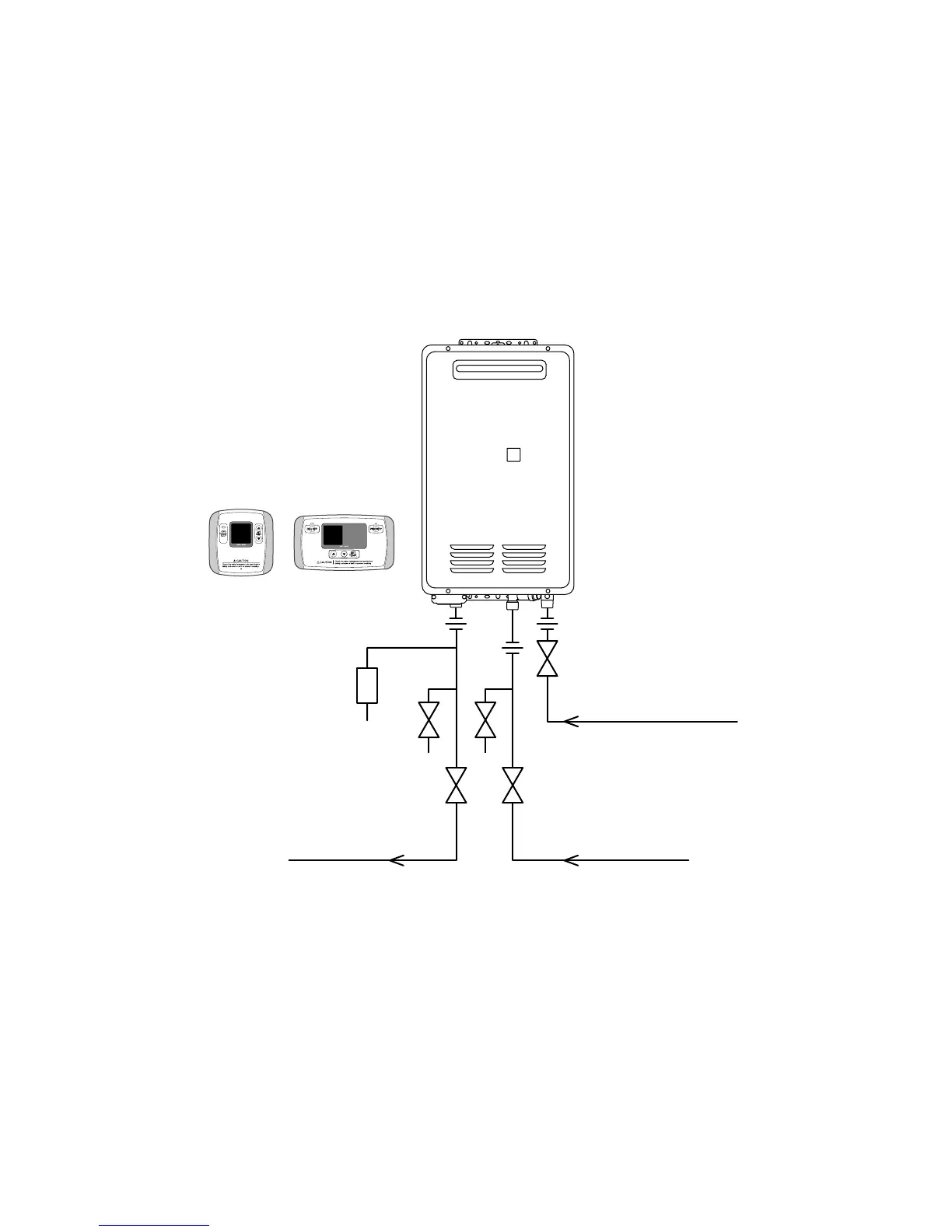

2-3 SUGGESTED PIPING-BASIC INSTALLATION
Minimum 3/4"
Hot water supply line
Minimum 3/4"
Cold water supply line
Minimum 3/4"
Gas supply
Shut off valve
Valve 3 Valve 4
Pressure relief valve
Drain
UnionUnion
Union
This drawing is intended only as a guide.
It does not imply compliance with local building codes.
Installation must be done in accordance with local building
codes and may vary depending on installation location.
Confer with local building officials before installation.
Valve 2Valve 1
To Next Page
