PART 1 / SECTION 2
–

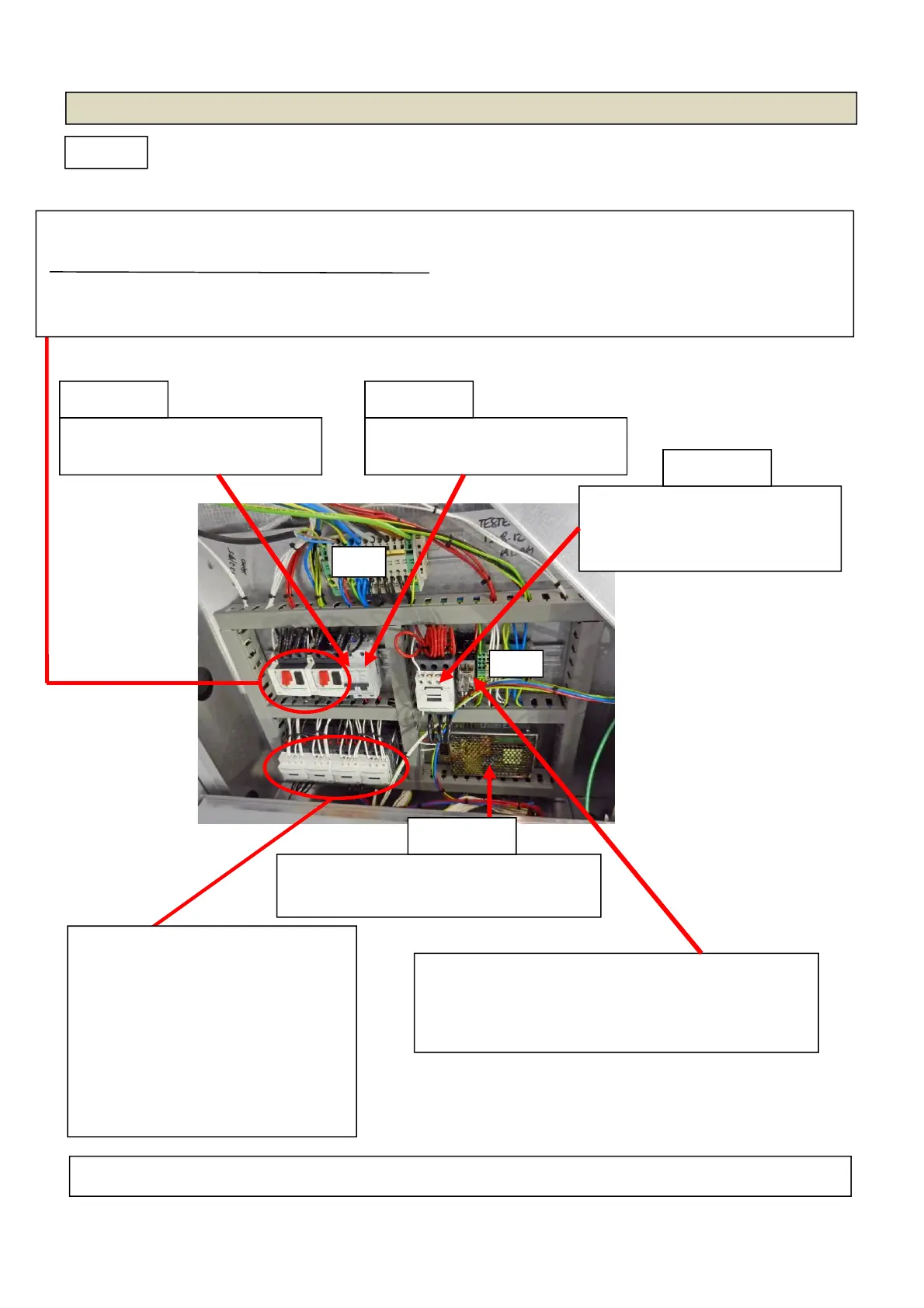

10 TRAY - MAIN PANEL
TB1
FAN MOTOR CONTACTORS
B801-08-031
PT-10A (TOP FORWARD)
PT-10B (TOP REVERSE)
PT-11A (BTM FORWARD)
PT-11B (BTM REVERSE)
INTERLOCK UNIT X2
B801-18-005
24v DC POWER SUPPLY UNIT
B801-93-005
PART 14
PT-4A FAN MOTOR OVERLOAD B801-03-020
PT4B FAN MOTOR OVERLOAD AUX. CONTACTOR B801-14-012
PT-5A FAN MOTOR OVERLOAD B801-03-020
PT5B FAN MOTOR OVERLOAD AUX. CONTACTOR B801-14-012
INTERIOR LIGHTING MCB
B872-22-063
PART 1
CONTROL CIRCUIT MCB
B872-22-062
PART 2
HEATING ELEMENT
CONTACTOR
B801-08-020
PART 15
PT-8A INTERIOR LIGHT RELAY
B723-37-004
PT8B INTERIOR LIGHT RELAY BASE
B723-36-001
TB2
PART NUMBERS REFER TO DRAWING M1500E25-75100 IN ELECTRICAL MANUAL
FG150
