MX Eco-touch Rotary Rack Gas Oven (FG166)
Rev. B21 21-05-21 MONO EQUIPMENT
11
2.0 OVERALL DIMENSIONS

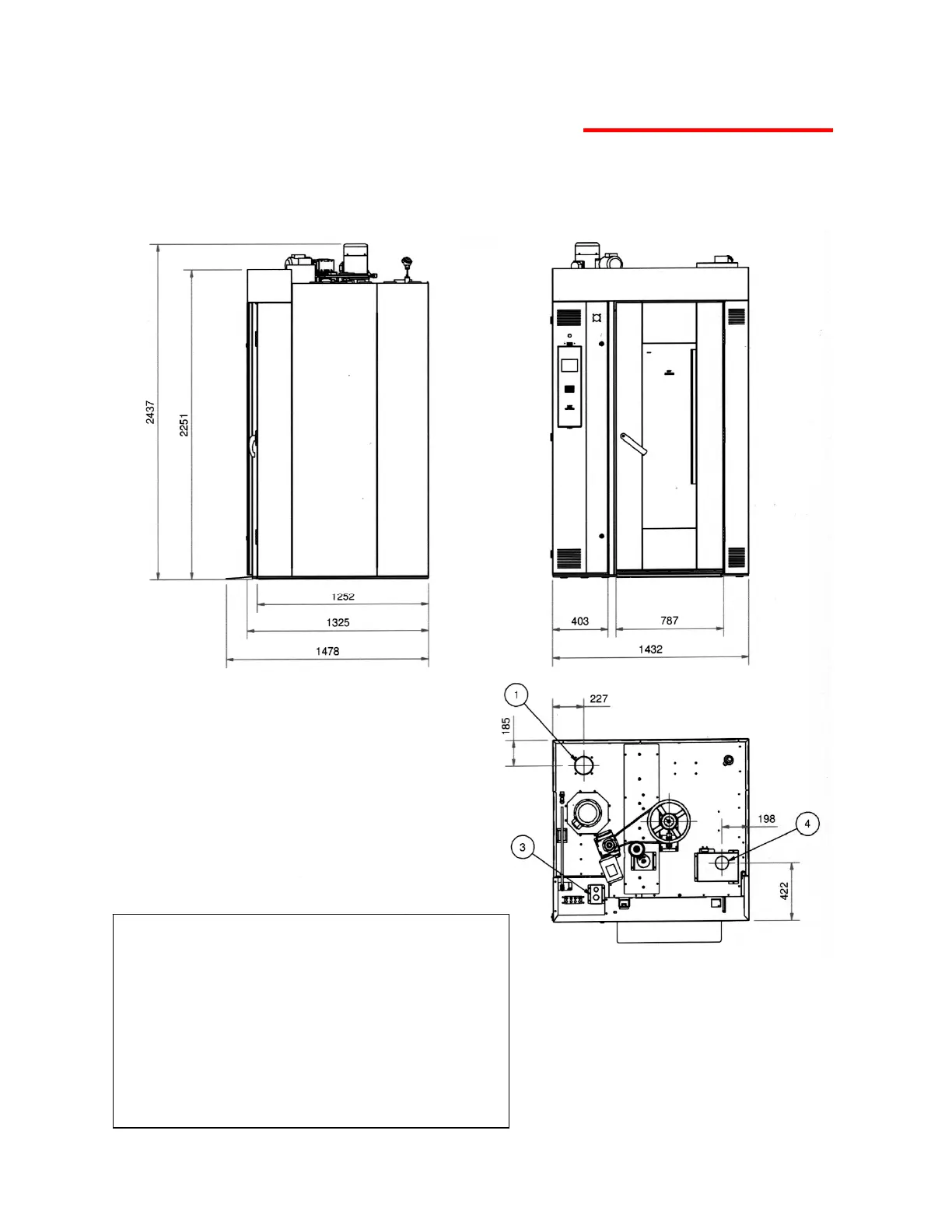

Figure 1: Dimensions for models FG166-G11LH** and FG166-G11RH**
1. FLUE GAS CONNECTION 130mm DIA.
2. WATER CONNECTION ¾-inch BSP
3. POWER CABLE INLET
4. STEAM DIVERTER BOX CONNECTION 100mm DIA.
MAX. RACK DIAGONAL = 885mm
DOOR SWING RADIUS = 790mm
