Monogram Systems
COMPONENT MAINTENANCE MANUAL
BASIC PN 15900
38-31-09
Page 707
Feb 23/04
(k) Install nameplate (45), if removed.
(l) Install motor assembly (35 or –35A) on adapter plate (50), using screws
(40).
(m) Install motor and adapter assembly (10 or –10A) on mounting plate (215)
by inserting motor shaft into drive shaft coupling (see Figure 702), secure
with nut (15), washers (20 or –20A), stud (25) and bolts (30). Lockwire in
accordance with MS33540, double twist method.
NOTE
: Motor Shaft should make full contact with drive shaft coupling.

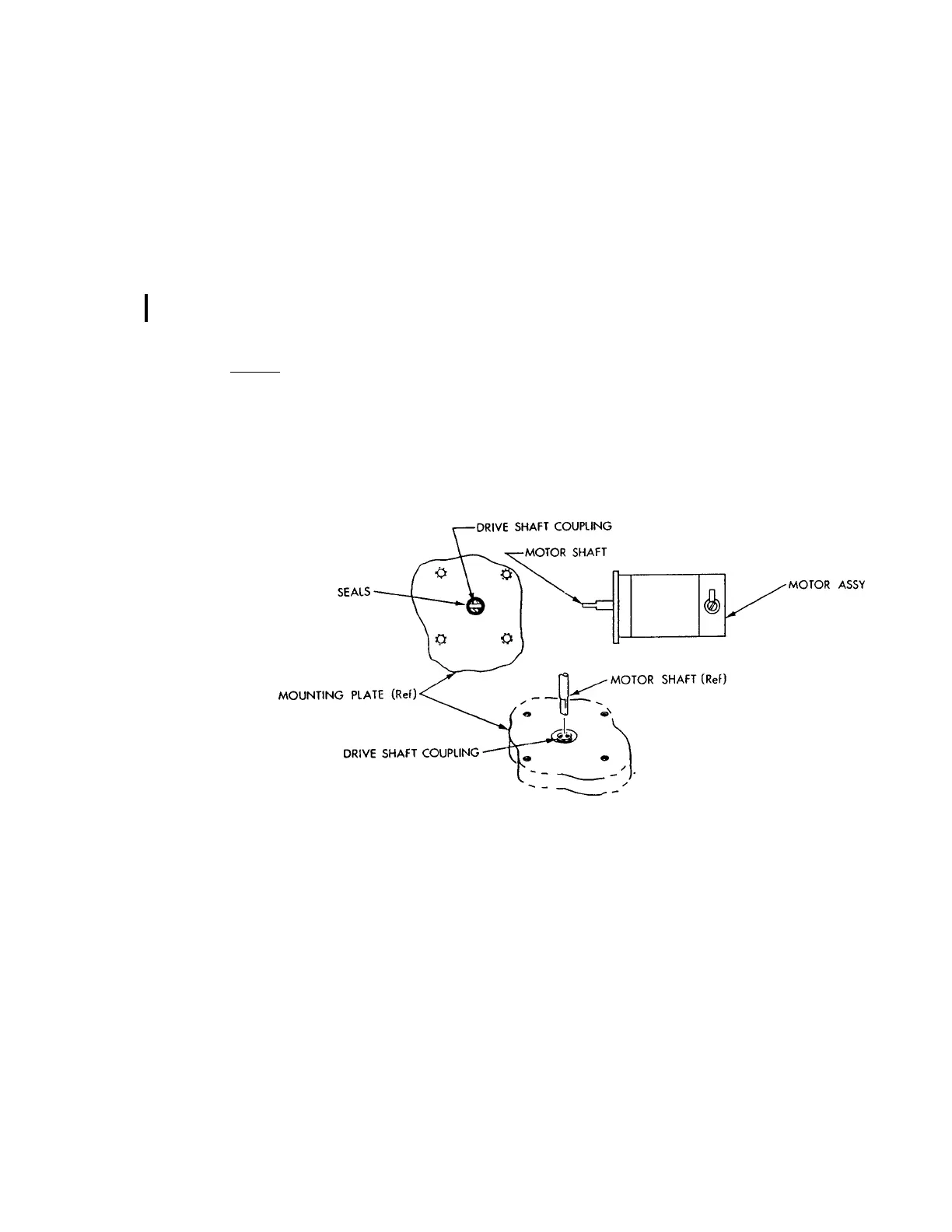

Figure 702
(n) Install decal (5), if removed.
