6

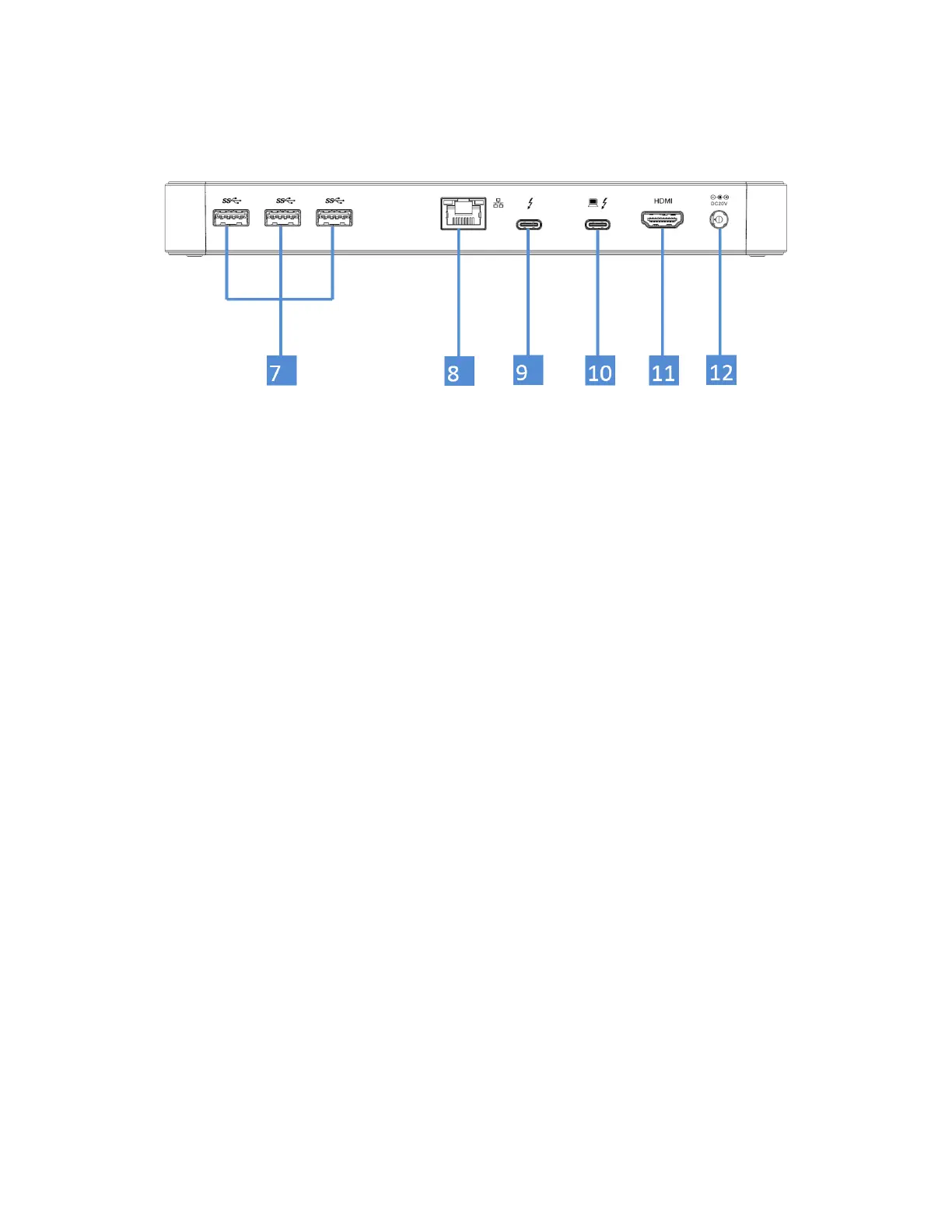

Rear Panel
7. USB 3.0 Data Ports: These USB 3.0 Type-A ports are for connecting USB compatible
devices. They do not support the BC 1.2 standard.
8. RJ45 Ethernet Jack: This RJ45 jack is for connecting to a 10/100/1000 Mbps Gigabit
Ethernet network.
9. Thunderbolt 3 Data Port: This USB Type-C port is for connecting to the USB Type-C
port of a computer or laptop. This port does not support the USB Power Delivery
(PD) revision 2 standard.
10. Thunderbolt 3 Data/Charging Port: This USB Type-C port is for connecting to the
USB Type-C port of a computer or laptop. This port supports the Power Delivery
(PD) revision 2 standard. It can provide 5, 9, 15, or 20 VDC with up to 60 watts of
charging power.
11. HDMI Port: This HDMI® 2.0 port is for connecting an HDMI-enabled video display. It
supports video resolutions up to 4K@60Hz.
12. DC Jack: This DC barrel connector is for connecting the included AC power adapter.
