PRODUCT OVERVIEW

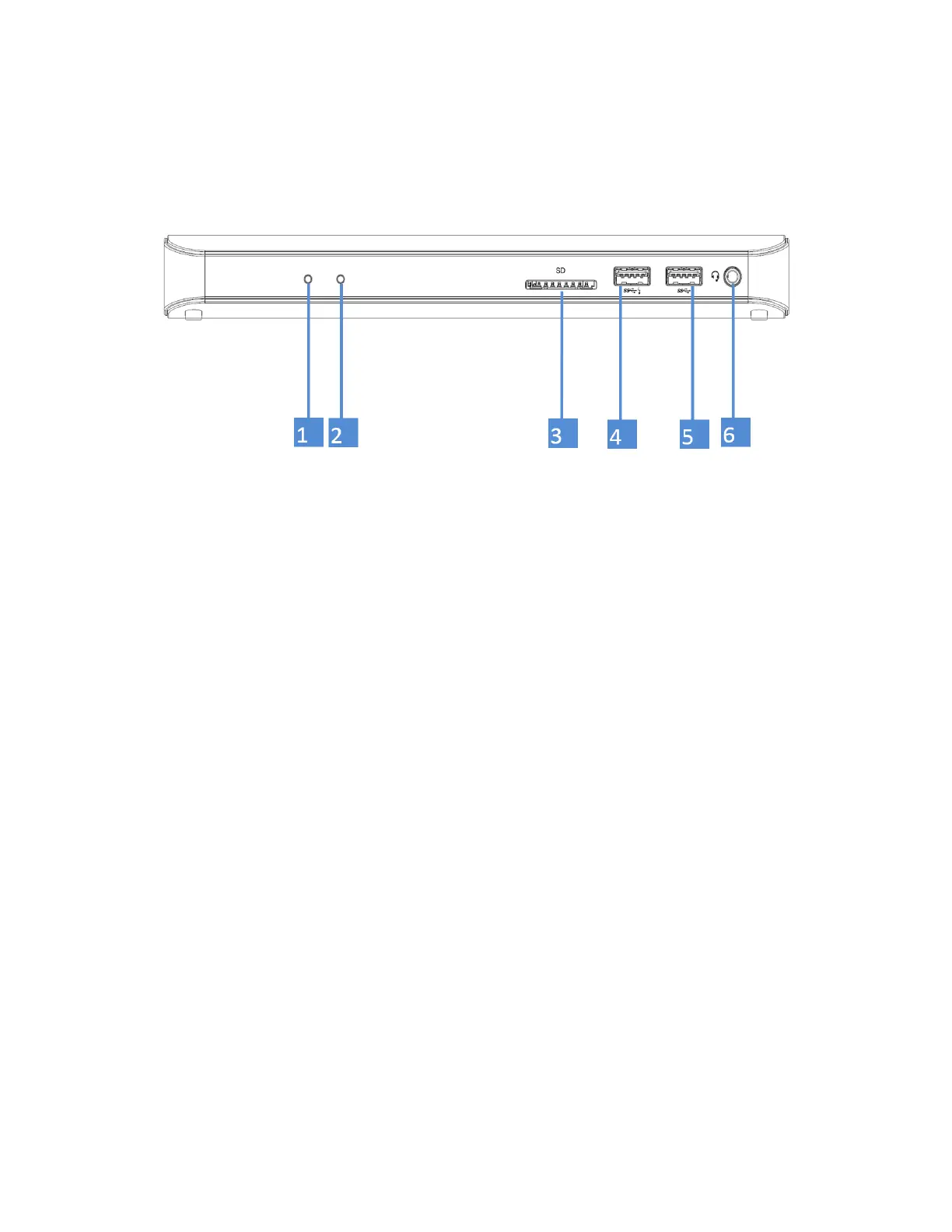

Front Panel
1. Power Indicator: The LED illuminates green when power is applied.
2. Link Indicator: The LED illuminates blue when a Thunderbolt 3 embedded device is
connected.
3. SD Card Reader: This SD™ card reader is compatible with the SD 3.0 specification.
4. USB 3.0 Data/Charging Port: This USB 3.0 Type-A port is for connecting USB
compatible devices. It supports the USB Battery Charging (BC) 1.2 standard.
5. USB 3.0 Data Port: This USB 3.0 Type-A port is for connecting USB compatible
devices. It does not support the BC 1.2 standard.
6. Audio Jack: This 3.5mm TRRS jack supports 2-channel audio output and microphone
input.
