Electrical connection (For UK type plug)
For your safety please read the following information
Warning: This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by
a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug tted
with a 13-amp fuse. Should the fuse require replacement, it must be
replaced with a fuse rated at 13 amp and approved to BS1362.
If the mains plug which is tted is unsuitable for the socket outlet in your
home or is removed for any other reason, please follow the instructions
below on how to wire a 13 amp 3 pin plug..

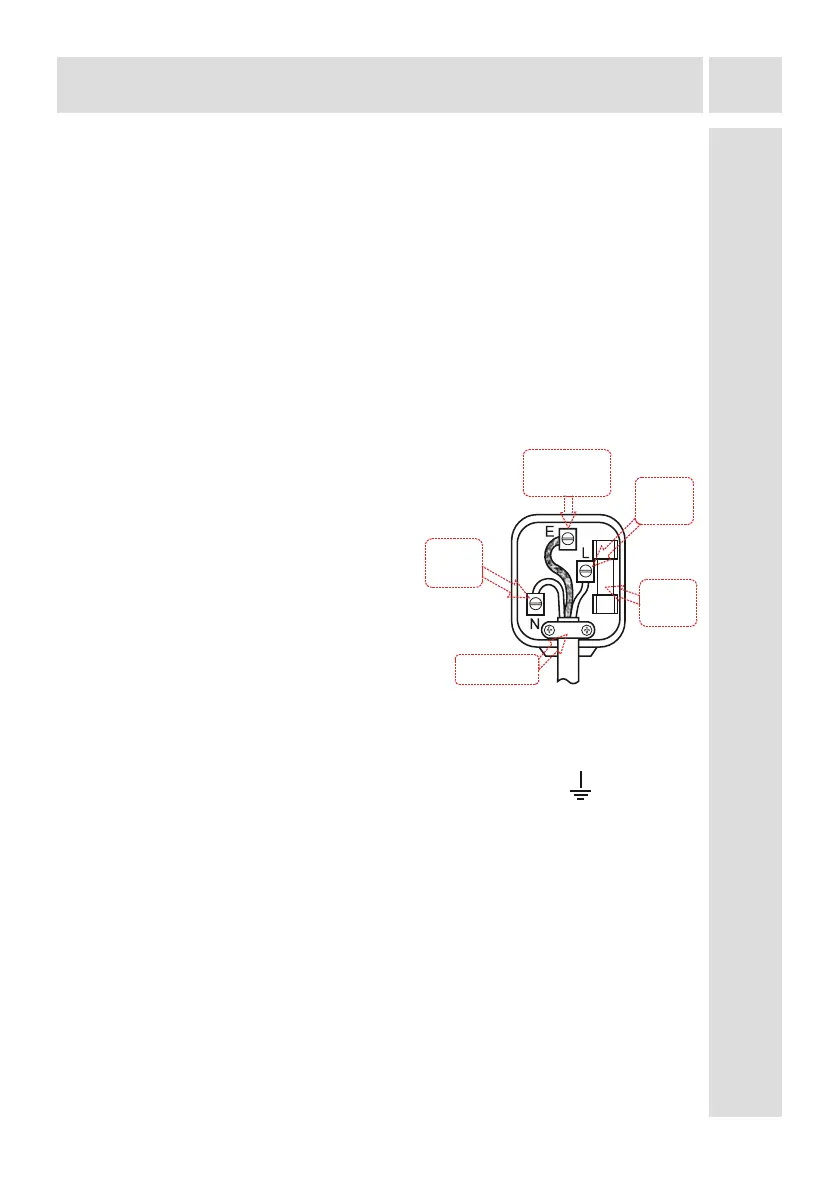

How to wire a 13 amp plug.
Important
The wires in the mains lead on this
appliance are coloured in accordance
with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings identifying the
terminals in your plug proceed as follows.
The green and yellow wire must be connected to the terminal in the plug
which is marked with the letter E or with the earth symbol or coloured
green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is rmly secured under the cord clamp.
BEFORE USING THE APPLIANCE
GREEN/YELLOW
Earth
BROWN
Live
FUSE
13 Amps
Cord Clamp
BLUE
Neutral
