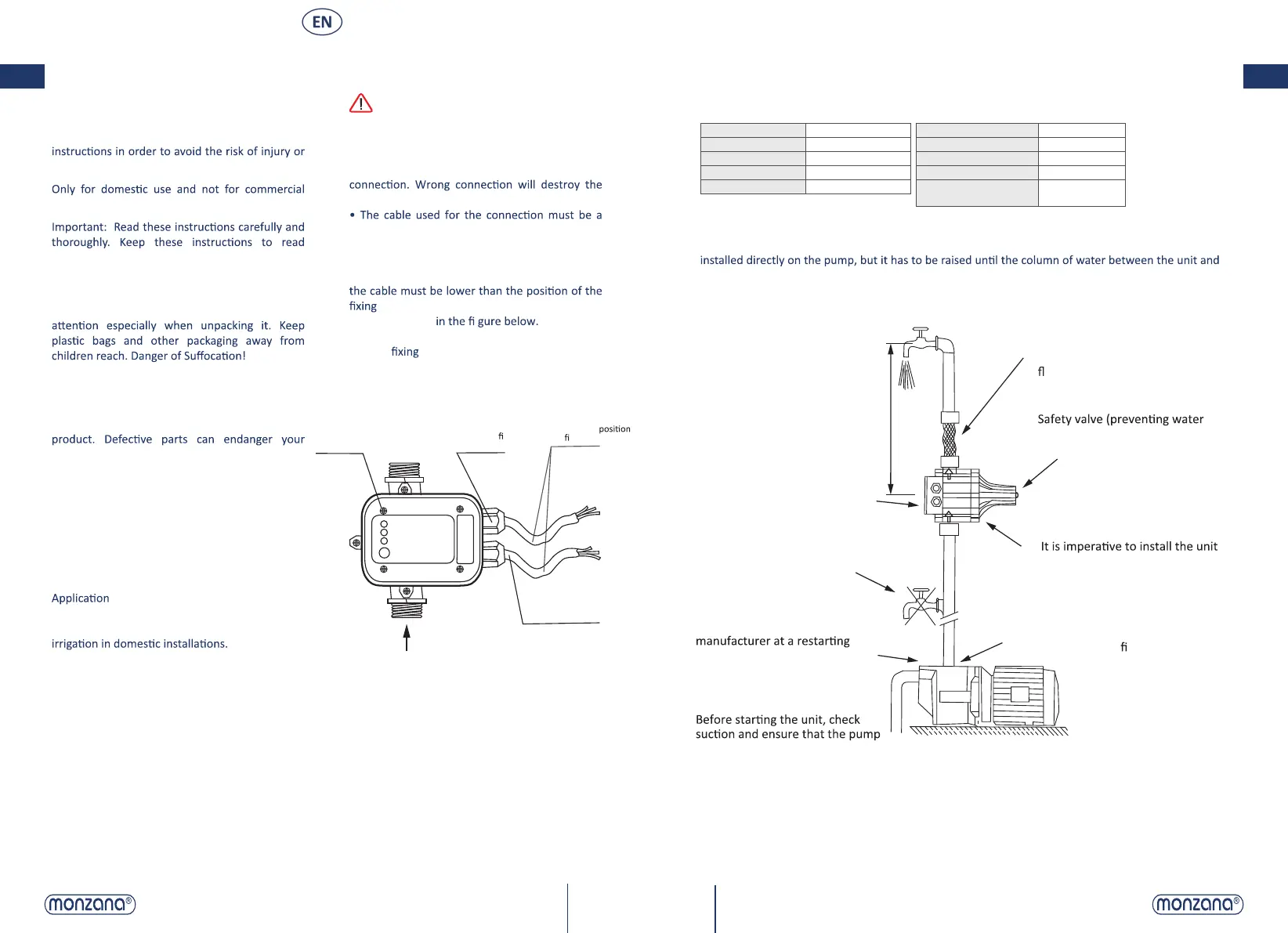

INSTRUCTIONS
ATTENTION! Observe the safety and assembly
damaging the product.
use!
through at a later date. If you give the product to
anyone else at some point in the future, please
ensure you also pass on this manual.
Keep small parts out of the reach of children. Pay
Check all elements and parts for damages.
Despite careful checks since may happen that
even the best product takes damage during the
transport. In this case, do not build up of your
health.
Never modify the product! Changes will void the
warranty and the product may be unsafe or even
dangerous.
For cleaning use a sponge and warm soapy water.
Do not use solvent based-cleaners or detergents
for example Bleach those can damage the
product.
Electronic pressure monitor for the control of
pumps for rainwater use, water supply and
For clear and slightly polluted water without
aggressive and abrasive components.
WARNING
• Never take the circuit board out of the control
box.
• The wiring diagram on the back of the panel
board will show you how to make the correct
whole electronic circuit.
three-wire (min. 3G0.75 mm²) one with a compul-
sory grounding end. The outer diameter of the
cable should be a minimum of 7.5mm and a
maximum of 8.5mm. One of the leading ends of
nuts while the cable is connected to the
power as shown
• The four screws on the panel board and the two
nuts for
cables must be securely fastened to
avoid water entering into the control box and
damaging the electronic circuit.
TECHNICAL INFORMATION
Rated voltage AC 220-240V
Frequency 50/60 Hz
Rated current 10 A
Degree of protection IP54
Start-up pressure 1,5 bar
Max. working pressure 10 bar
Max. working temperature 60 °C
Max. pump power 1,1 kW
Connection 1” male
Cut-out pressure Final pressure of
the pump
ASSEMBLY
INSTRUCTIONS FOR CORRECT UNIT INSTALLATION
If the column of water between the pump and the highest tap exceeds 15 metres, the unit cannot be
the highest tap does not exceed 15 metres. For example, if the column of water is 20 metres from the
pump, the unit must be placed 5 metres higher than the pump.
Strom AN
Pumpe AN
Störung
Neustart
The four screws must be
fastened
The two nuts for xing
cables must be fastened.
This part must be
lower than the
of the xing nuts.
Three-wire cable with the
OD of 7.5 to 8.5 mm
Power
Inlet
Pump
The unit is equipped with a
check valve to prevent the
pipeline from losing pressure.
Taps must not be installed
between the pump and the
unit.
PUMP’S PRESSURE
The unit is pre-set by the
pressure of 1.5 bar. The pressure
produced by the pump must be
normally 0.8 bar higher than the
pre-set pressure.
is primed.
It is advisable to connect the
unit outlet to the system with a
exible hose.
emission if the membrane is
damaged inside)
with the arrows in the upward
positon.
The unit can be installed directly
on the pump, or between the
pump and the rst tap.
NO
DO NOT TOUCH
max. 15 m
