760 SERIES INSTALLATION AND OPERATION INSTRUCTION NOTES
TYPICAL WIRING SCHEMATIC
The products described herein are subject to change at any time without notice, including, but not limited to, product features, specifications, and designs.
1 Valve Weight:
1.1 lbs (0.5 kg)
2 Polarity:
A&C (+), B&D (-) produces flow out
port B
3 Manifold O-Rings
0.070 (1.78) sect x 0.426 (10.82) I.D.
(Universal dash No. 13)
4 Surface:
Surface to which valve is
mounted requires
32
( ) finish, flat
within .001 [0.025] TIR
5 Electrical Connector:
Mates with MS3106-14S-2S or equivalent
6 Null Adjust:
Flow out of port B will increase with
clockwise rotations of null adjust pin
7 Compressed Oil Volume
for one control port: 0.229 in3
(3.75 cm
3
)
8 Suggested Mounting Screws:
0.312-18 x 1.750 lg (M8 x 45)
socket head screw (4 req'd)
Dimensions in parenthesis are in millimeters.
2
ABCD
∆∆

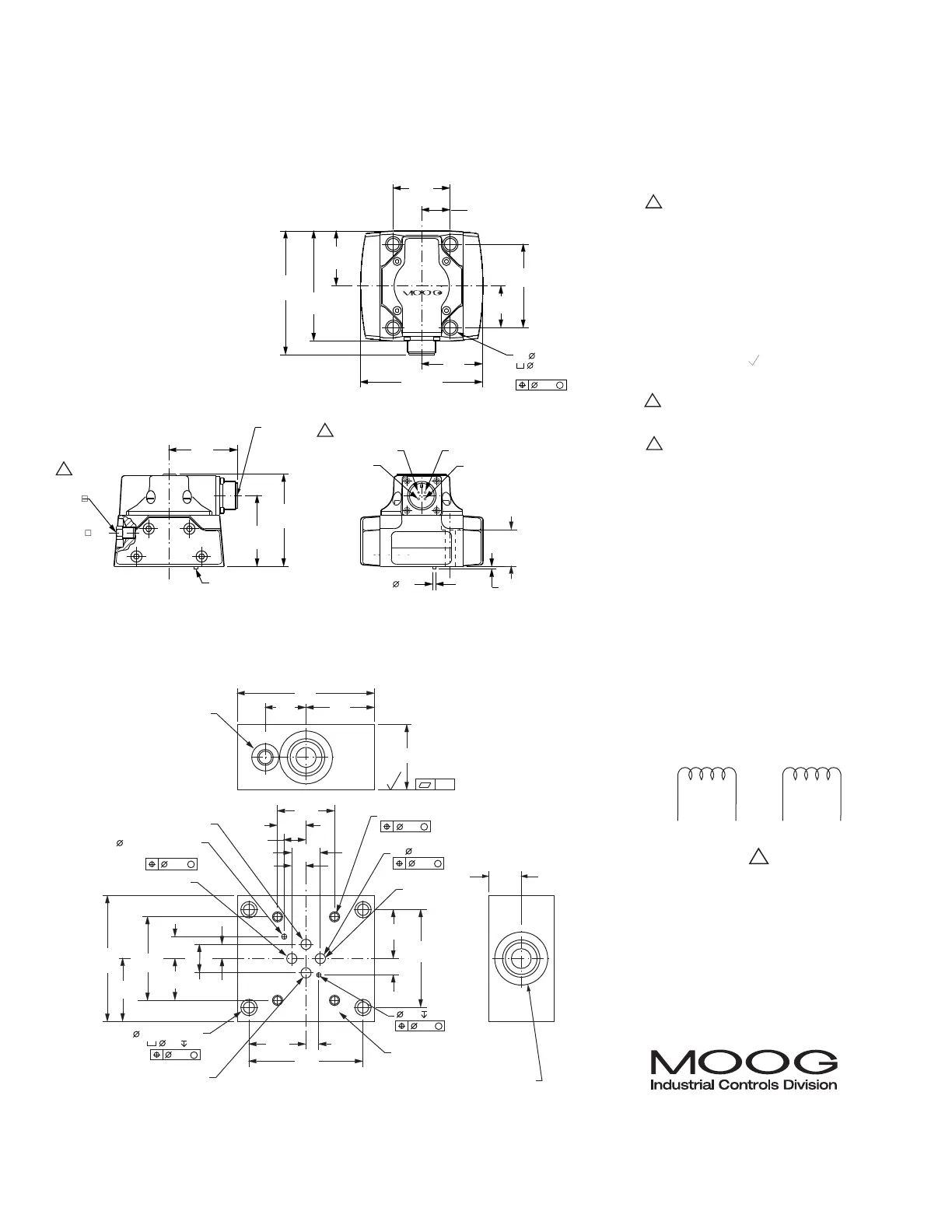

Figure 4
RETURN PORT T
PRESSURE PORT P
CONTROL PORT B
3.88
1.94
1.750
.875
.670
.875
.437
CONTROL PORT A
1.500
.500
3.000
1.750
.390
3.500
VALVE MOUNTS ON THIS
MANIFOLD SURFACE
.437
.875
.670
1.281
2.562
1
PORT PER SAE J1926
1.0625-12 UN-2B DASH 12
STR THD O-RING BOSS
(.75 [19.05] TUBE OD REF)
4 PLACES
1.00
4 PL
1.25
32
2.00
2.11
4.22
RET
AUX PRESS
760
PORT PER SAE J1926
.4375-20 UNF-2B DASH 4
STR THD O-RING BOSS
(.25 TUBE OD REF)
.001
.156 (3.96) AUXILIARY
PILOT PRESSURE PORT
.008
M
4X .312 [7.92]
.014
M
4X .3125-18 UNC-2B THD
.007
M
.015
M
.136 .20
.014
M
.50 .63
4X .344 [8.74] THRU
[50.8]
[53.6]
[107.19]
[31.75]
[44.45]
[22.23]
[50.8]
[17.02]
[11.1]
[38.1]
[76.2]
[12.7]
[9.91]
[44.45]
[88.9]
[98.55]
[49.28]
[65.07]
[32.54]
[49.28]
[11.1]
[17.02]
[25.4]
P
PIN B
PIN D
PIN C
PIN A
1.125
[28.58]
.09
[2.3]
.09
[2.3]
[44.45]
1.750
[22.23]
.875
[65.07]
2.562
[32.54]
1.281
1.89
[48.0]
3.78 MAX
[96.0]
1.72 MAX
[43.7]
3.44 MAX
[87.4]
3.83 MAX
[97.3]
ELECTRICAL
LOCATING PIN
2.11
[53.6]
2.17
[55.1]
2.85 MAX
[72.4]
EXTERNAL
NULL
ADJUST
3/32 IN.
HEX
SOCKET
4X .328 [8.33] THRU
TO DEPTH SHOWN (1.125 REF)
.008
M
.531 [13.49]
CONNECTOR
