Moo
Guitar Service Manual
Example

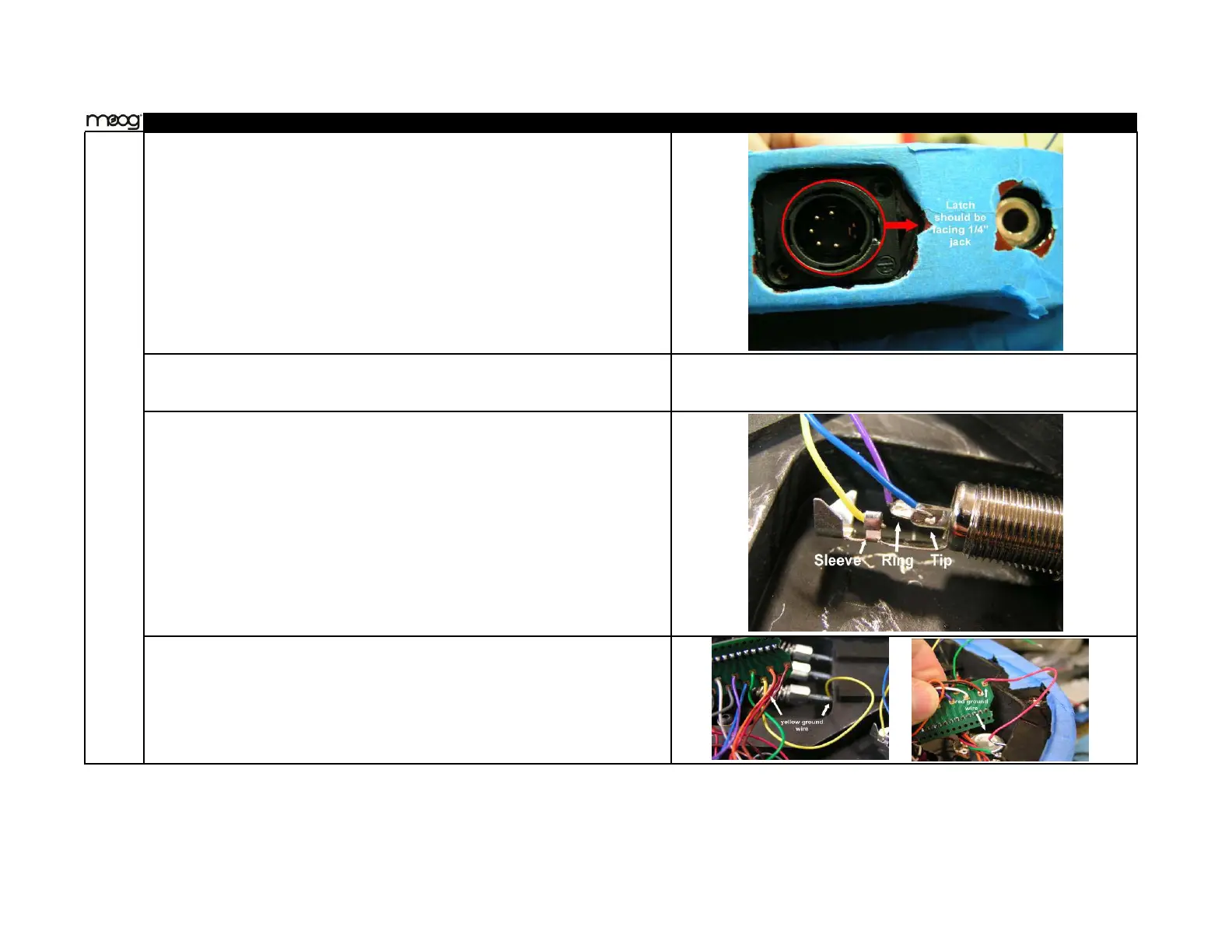

Insert XLR assembly so that release tab on XLR plug will be towards to ¼” jack.
Install 2 wood screws (add part number). If pilot holes have not been drilled, mark
the center location of the two XLR holes and drill small pilot holes about ½” deep,
then install screws.
Make sure 1/4" jack's nut is secure. Wire ¼” jack according to Fig D. Please be
careful of solder splatter around guitar finish.
Solder yellow and red ground wires to proper locations on breakout boards (see Fig
B, and C). Please be careful of solder splatter around guitar.
