User's Guide
_______________________________________________________
Connection

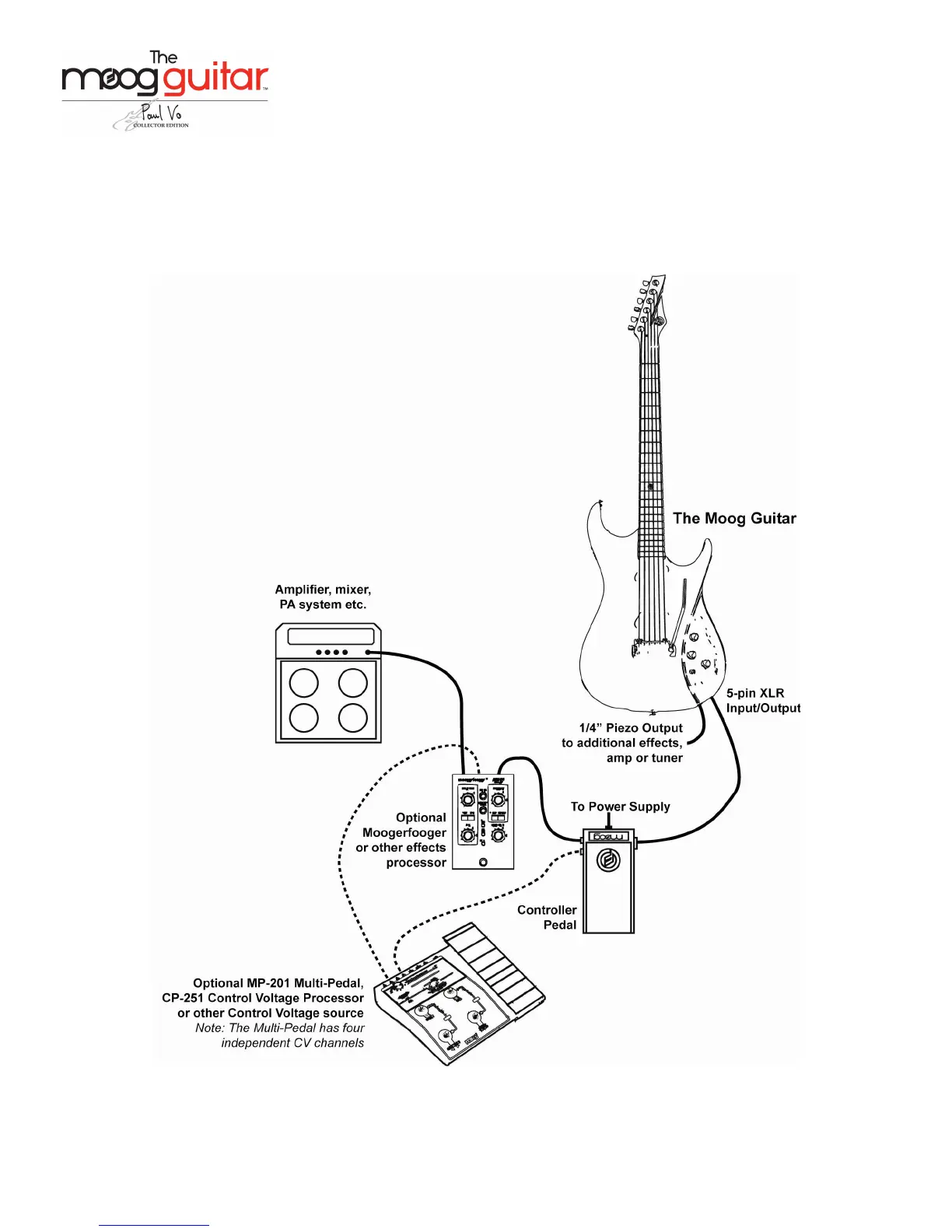

The following diagram shows a typical connection setup for The Moog Guitar. The effects processor and control voltage
source are optional. As with any Moog product, experimentation is richly rewarded.
.
Note: Once the Moog Guitar is powered, it takes approximately 30 seconds for the Moog electronics to activate
© 2008 Moog Music Inc Specifications subject to change without notice www.moogmusic.com
