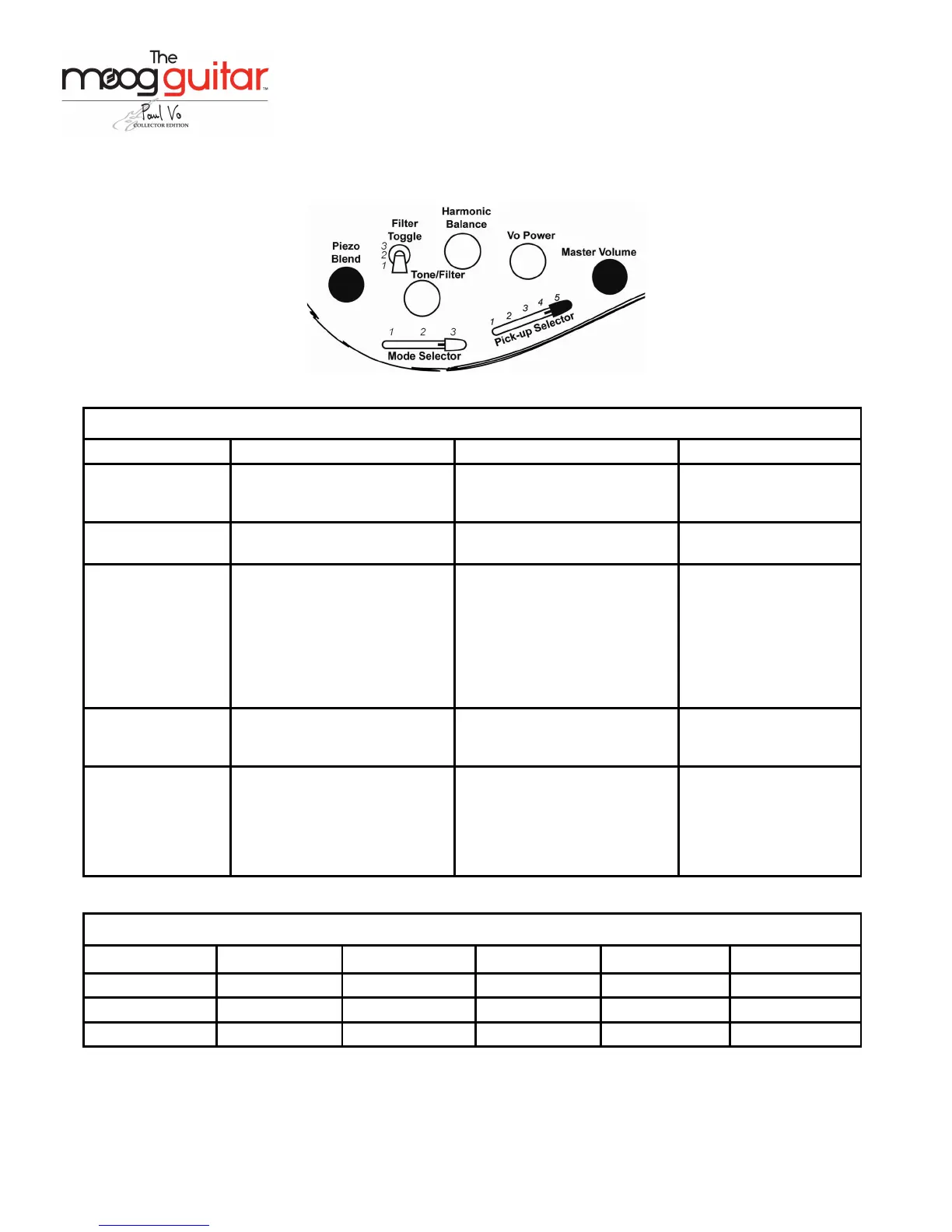

Knobs and Switches Overview
Knobs
Full Clockwise Full Counter Clockwise Comments
MASTER VOLUME Full volume No volume Controls overall volume of
Moog pick-ups and piezo
output
VO POWER Full Vo Power No Vo Power Turn fully CCW when playing
as a normal guitar
HARMONIC BALANCE Neck pick-up only Bridge pick-up only In center detent position, Vo
Power is equal on neck and
bridge pick-up.
When the Filter Toggle switch
is in the TONE position,
HARMONIC BALANCE is set
by foot pedal and knob has no
effect.
PIEZO BLEND The output signal is 100% from the
piezo pick-ups, but still passes through
the Moog filter.
The output signal is 100% from the
neck and/or bridge pick-up, via the
pickup selector switch.
Sets a blend of the piezo and
magnetic pickups.
TONE With the FILTER TOGGLE in the
TONE POSITION: Emphasizes treble
frequencies.
With the FILTER TOGGLE in the
FILTER & ARTICULATED FILTER
POSITION: Full resonance.
With the FILTER TOGGLE in the
TONE POSITION: Emphasizes bass
frequencies.
With the FILTER TOGGLE in the
FILTER & ARTICULATED FILTER
POSITION: Minimum resonance
Controls either the basic guitar
tone or Moog filter resonance,
depending on the FILTER
TOGGLE position.
Switches
Position 1 Position 2 Position 3 Position 4 Position 5
PICK-UP SELECTOR Piezo Bridge Out of Phase In Phase Neck
FILTER TOGGLE Tone Articulated Moog Filter Moog Filter n/a n/a
MODE SELECTOR Mute Controlled Sustain Full Sustain n/a n/a
