Mooney M20V - Page 129

MOONEY INTERNATIONAL CORPORATION
M20V SERVICE AND MAINTENANCE MANUAL
Page
Date
6
MAR 2017
Rev Date
211.50
STA
176.00
STA
142.00
STA
100.00
STA
21.80
STA
53.00
STA
-5.00
STA
- 5.375
3.68
STA
STA
10
4
6
7
5
3
5
8
9
9
1
5
INDEX SKIN MATERIAL
NO. THICKNESS
1. 0.025 2024 T- 3 CLAD............ ..................
2 . 0.032 2024 T- 3 CLAD............ ..................
3. Polyester Glass- Fiber Reinforced....................................
4. 0.025 2024 T- 3 CLAD Right side only............. ..................
5. 0.020 2024 T- 3 CLAD............ ..................
6. 0.025 2024 T- 3 CLAD............ ..................
7. 0.032(b)(c) 2024 T- 0 CLAD Heat treated to T- 42 condition after forming & Shell.......... ...............
8. 0.025 2024 T- 3 CLAD............ ..................
9 . 0.032 2024 T- 3 CLAD............ ..................
10. Composite/Fiberglass Shell and Entrance Doors...................................

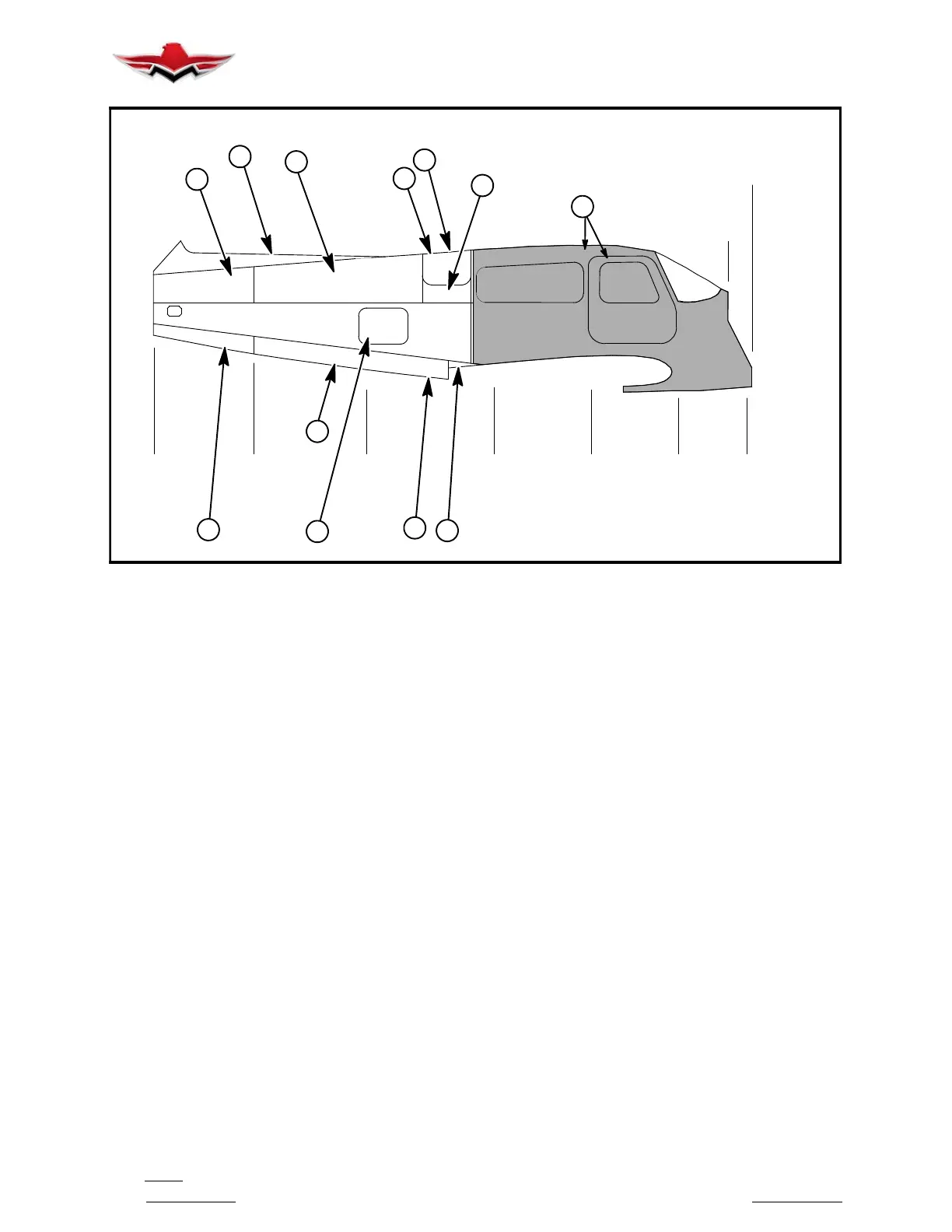

FUSELAGE SKIN PANELS
FIGURE 20- 2
20- 00- 01
