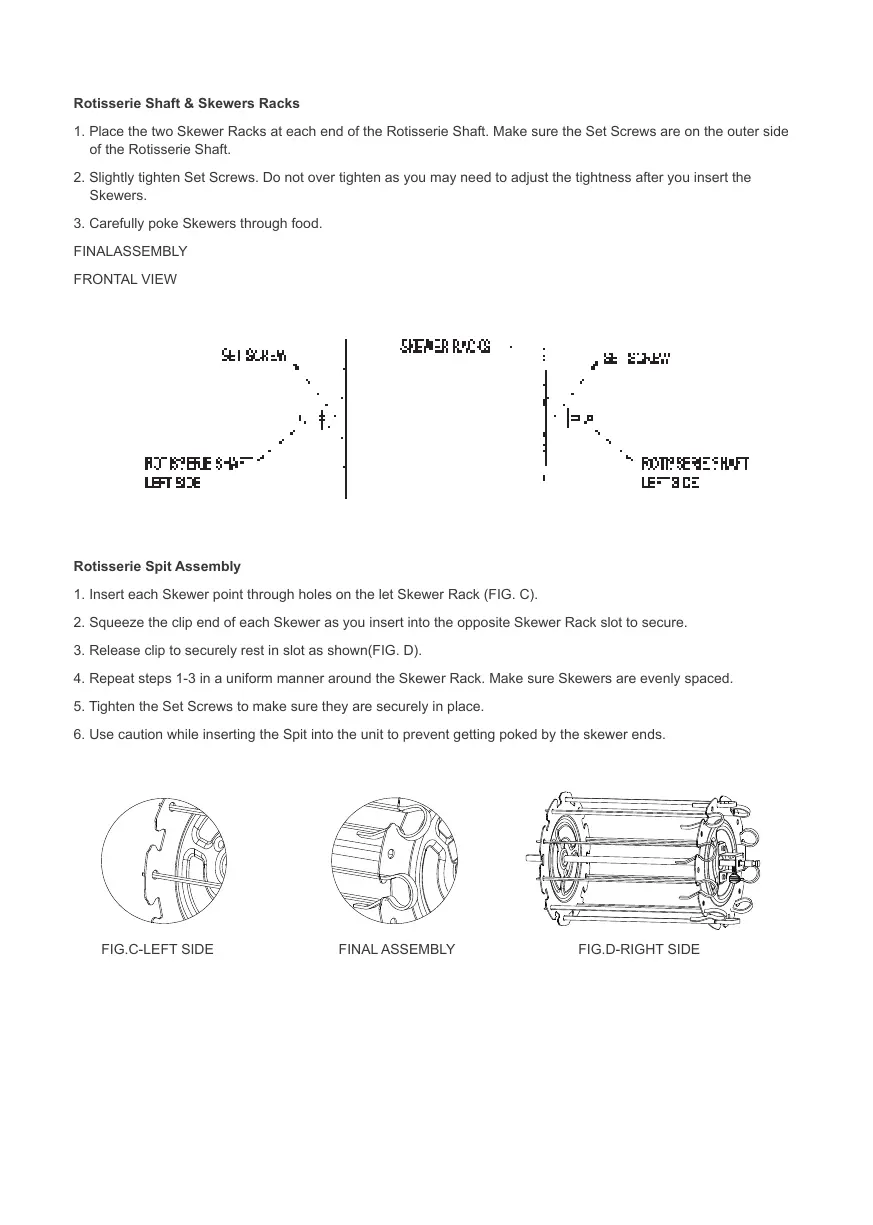

Rotisserie Shaft & Skewers Racks
1. Place the two Skewer Racks at each end of the Rotisserie Shaft. Make sure the Set Screws are on the outer side
of the Rotisserie Shaft.
2. Slightly tighten Set Screws. Do not over tighten as you may need to adjust the tightness after you insert the
Skewers.
3. Carefully poke Skewers through food.
FINALASSEMBLY
FRONTAL VIEW
Rotisserie Spit Assembly
1. Insert each Skewer point through holes on the let Skewer Rack (FIG. C).
2. Squeeze the clip end of each Skewer as you insert into the opposite Skewer Rack slot to secure.
3. Release clip to securely rest in slot as shown(FIG. D).
4. Repeat steps 1-3 in a uniform manner around the Skewer Rack. Make sure Skewers are evenly spaced.
5. Tighten the Set Screws to make sure they are securely in place.
6. Use caution while inserting the Spit into the unit to prevent getting poked by the skewer ends.
