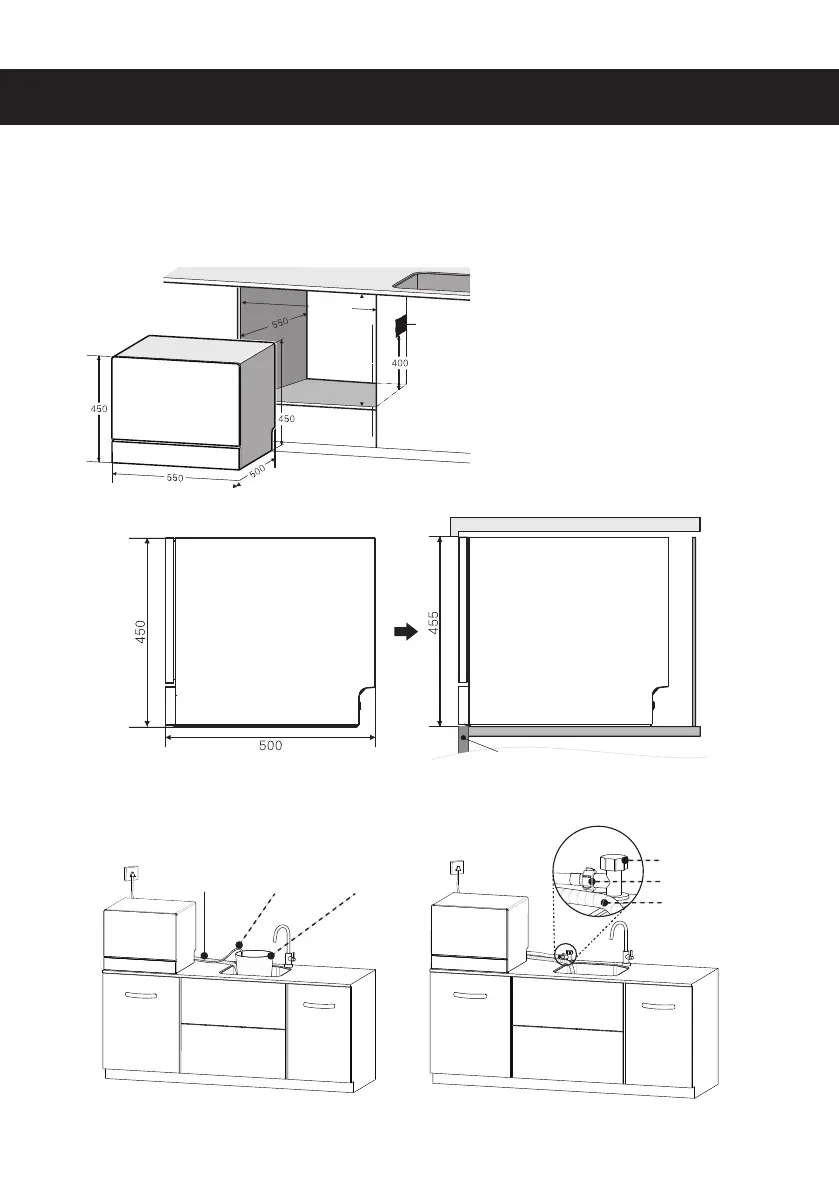

INSTALLATION INSTRUCTIONS
04
1. The dishwasher can be placed on a flat table or insert into a cabinet
1.1 In a cabinet:
1.2 Free placement on the table; leave a space for opening the door
Dimension diagram(Unit: mm)
455
460
~
Attention:
a. The hole holds drain pipe is up to
the position of sewage system.
b. The material of cabinet should be
heat-resistant and moisture-proof
c. The shade on the side of cabinet
is the recommended area for the
hole holding the drain pie. The hole
size should be 60×60 which is 400
up from the bottom of the cabinet.
555
~
560
Drain pipe
hole size
60×60
Dishwasher
Sink
Side of dishwasher Side of dishwasher
Door of the cabinet
Dishwasher Dishwasher
Drain
pipe
Suction
pipe
Water
Container
Figure 1(Suction pipe) Figure 2(Injection pipe)
Valve
Convenient port
Drain pipe
