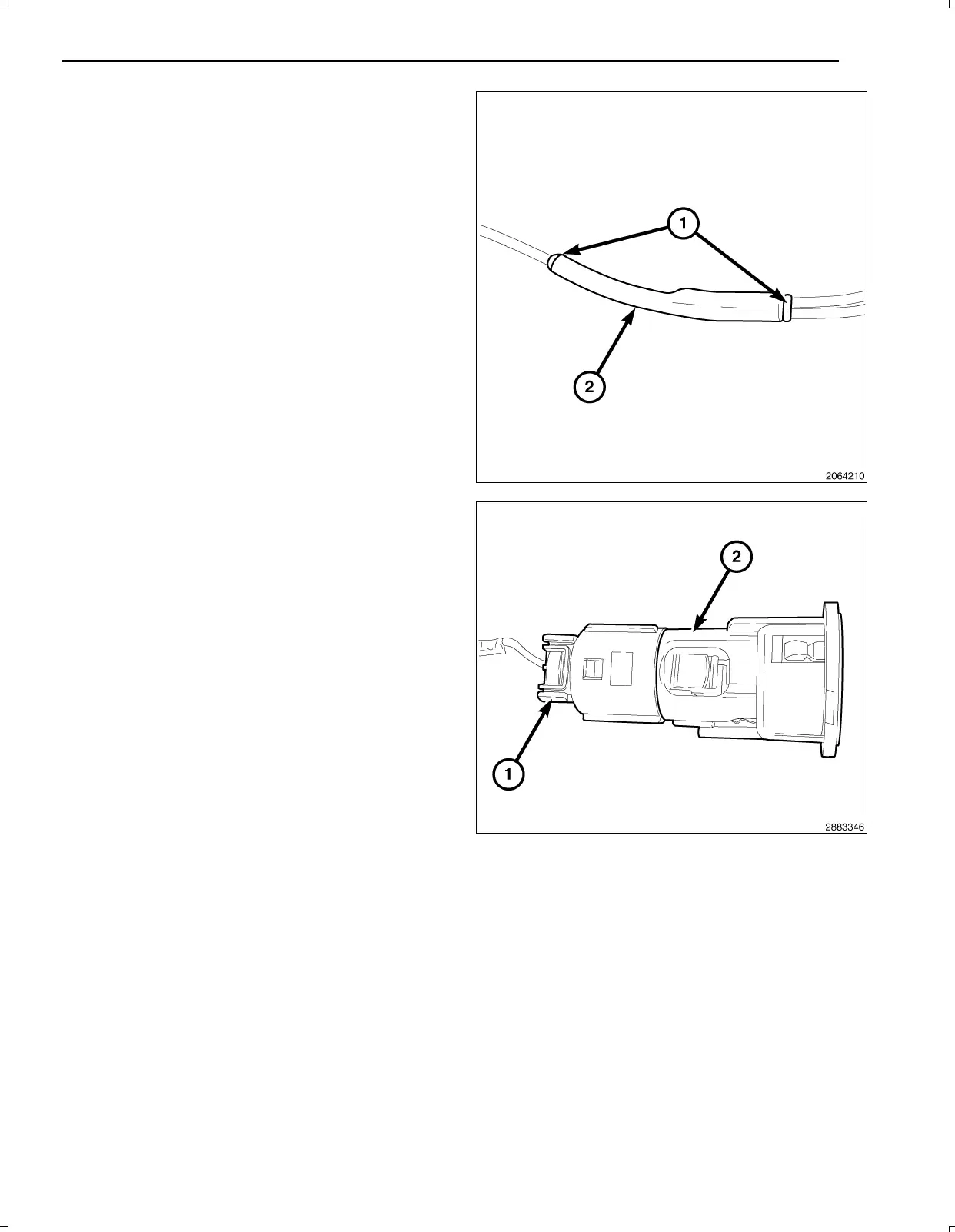

58.Centertheheatshrinktubing(2)overthesolderjoint
andheatusingaheatgun.Heatthejointuntilthetub
ingistightlysealedandsealant(1)comesoutofboth
endsofthetubing.
59.Crimp/splicethebackupcameragroundwire(BK)to
theground(BK)ofthe12Vignitionpoweroutletwiring
harnessconnectorasabove.
60.Installthe12Vignitionpoweroutletasfollows:
a.Feedthe12Vignitionpoweroutletwiringharnesscon
nector(1)throughtheopeninginthebackofthecenter
stackareaandconnecttothereceptacle(2).
b.Alignthesplinesontheoutsideofthepoweroutletre
ceptaclebaseconnectorreceptaclewiththegrooveson
theinsideofthemount.
c.Installthepoweroutletintothepanelbypressingfirmly
onthepoweroutletreceptaclebaseuntiltheretaining
bossesofthemountarefullyengagedintheirrecepta
cles.
Feb02,2011K6861161
