NOTE: If equipped with a power lock actuator, remove
and discard the lock actuator harness.

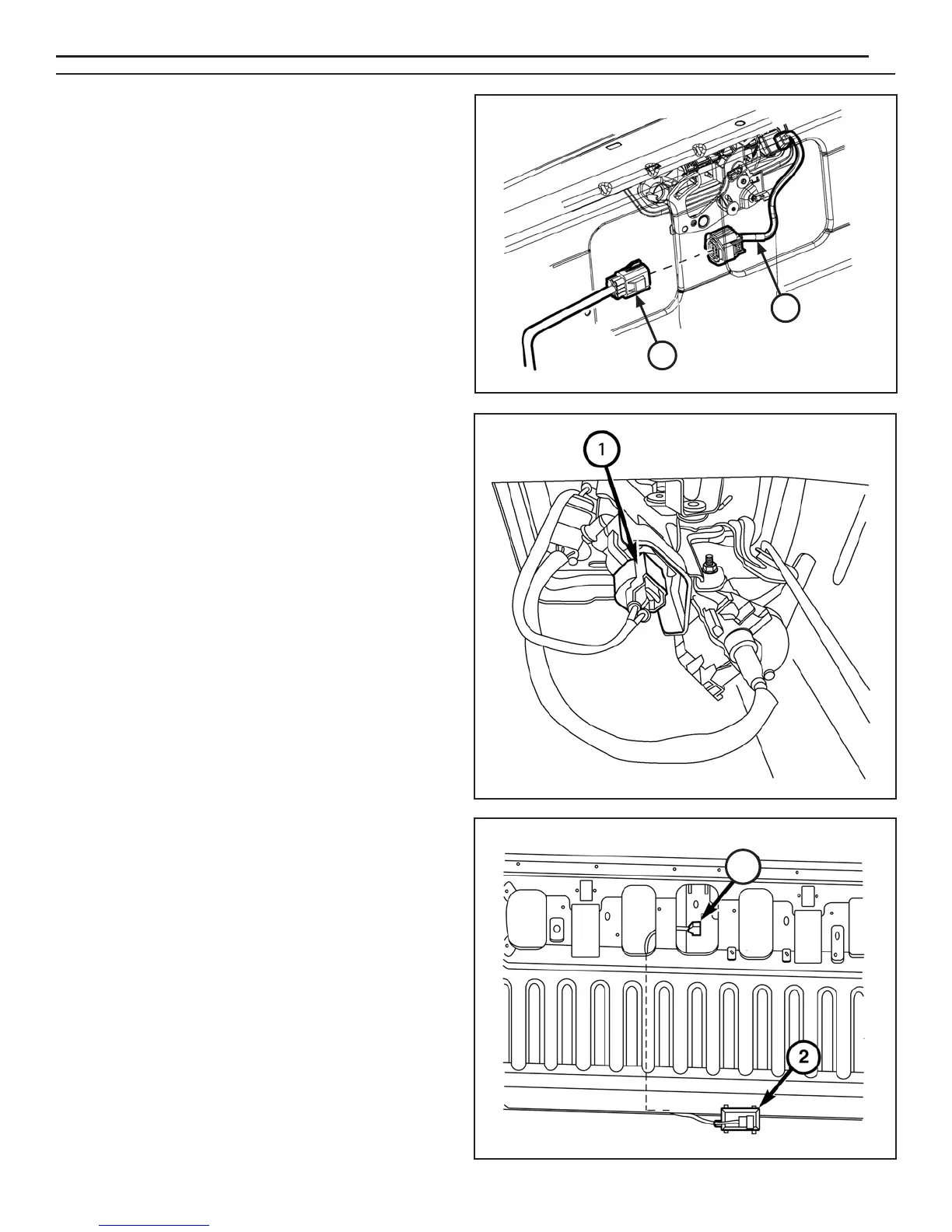

13. Connect the supplied harness (E) to the camera and
connect the supplied tailgate harness (D) to harness (E).
NOTE: Tape back the lock actuator connector if
vehicle is not equipped with a lock actuator.
14. Connect the lock actuator connector (1) (if equipped).
15. Route tailgate jumper harness (D) through the
tailgate as shown to the tailgate closeout panel (2).
