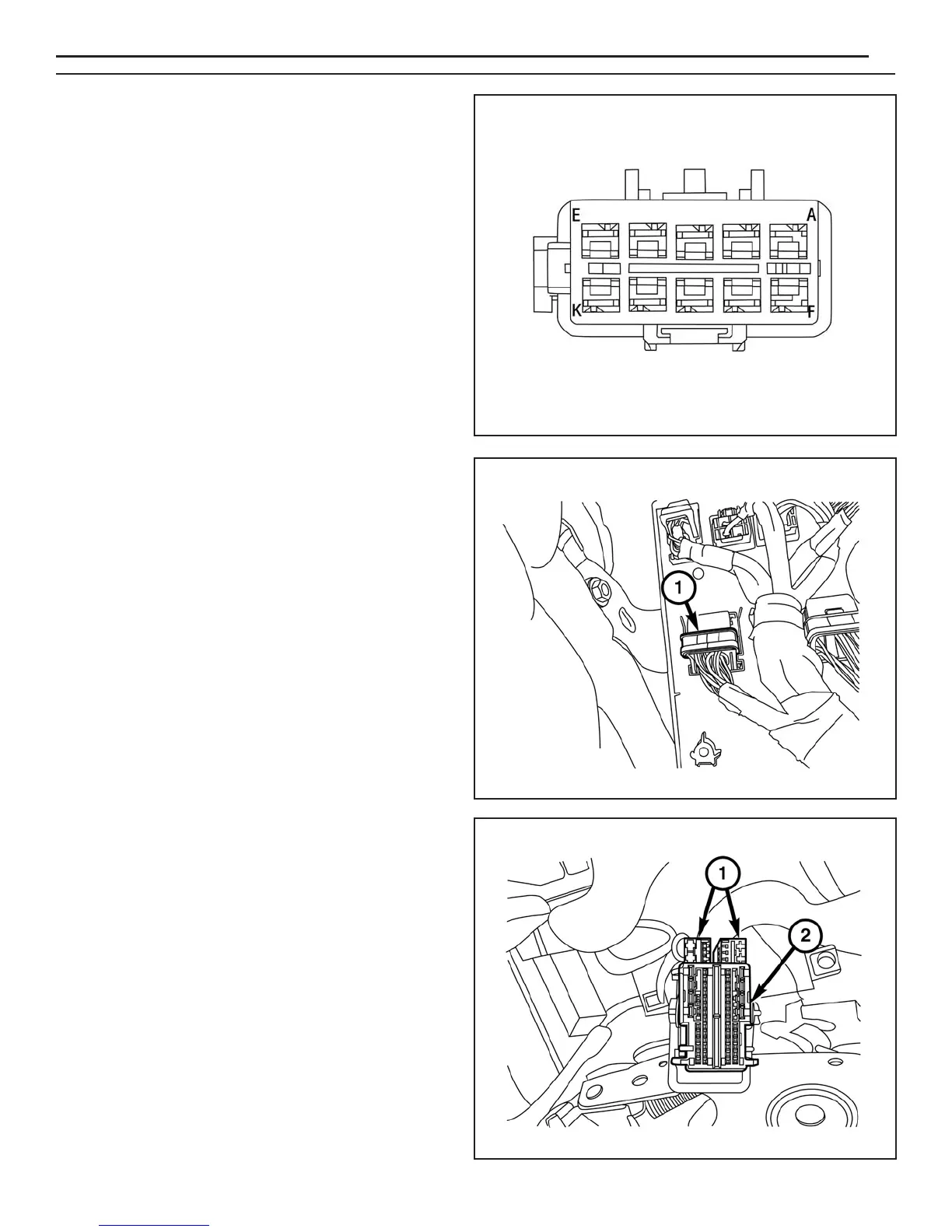

39. Continue to route the supplied body harness (A) to
the driver kick panel area.
40. Insert wires into supplied connector (taped to
harness in polybag) as listed below:
Cavity A GRY/BLU
Cavity B YEL
Cavity C - GRN
Cavity D GRY/ORG
Cavity E Bare
Cavity F - BLU
41. Release and remove connector C5 (1) from the
Body Control Module (BCM).
42. Remove the housing (2) to gain access to the
terminal blocks (1).
