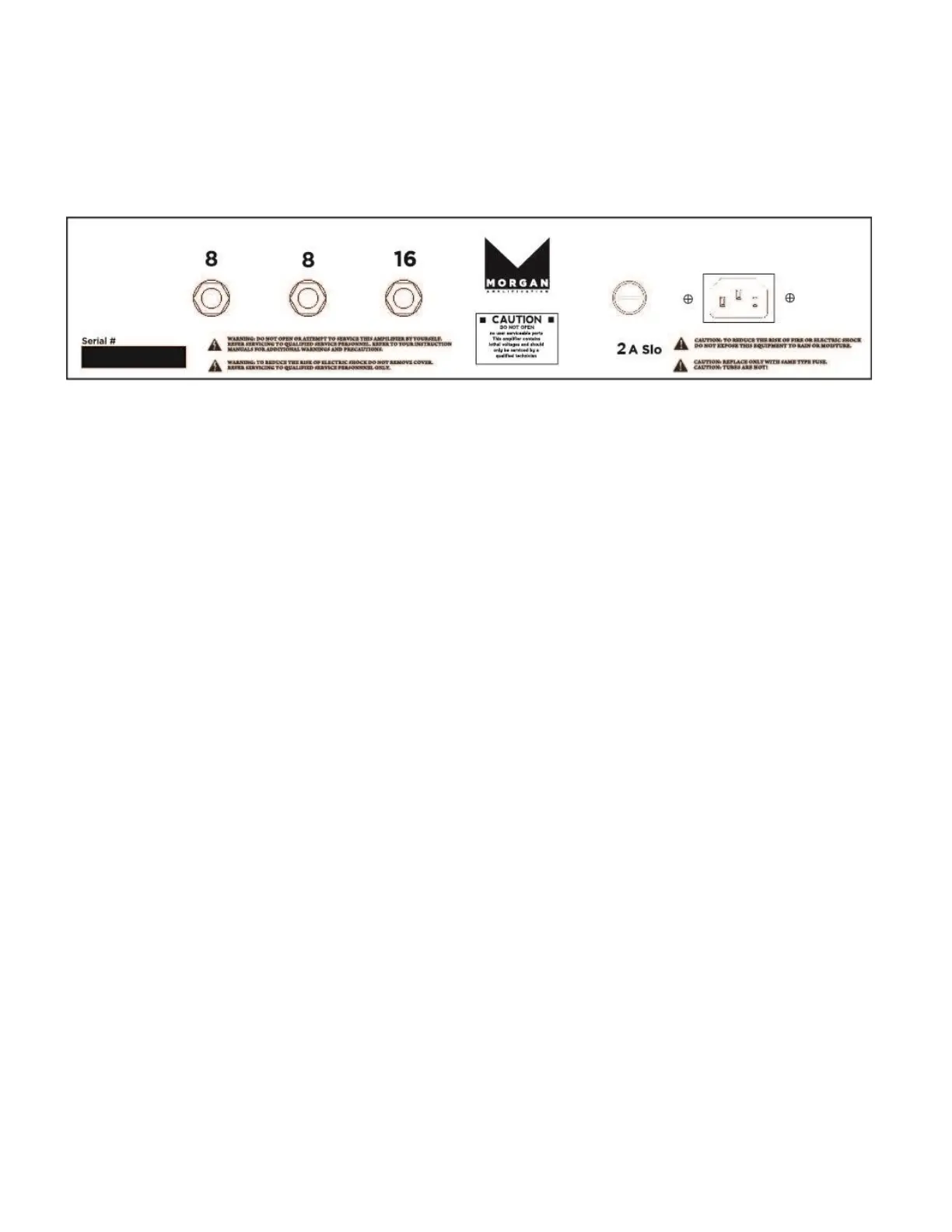

REAR PANEL
Speaker Jacks: Your amp is equipped with one 16 ohm and two 8 ohm speaker outputs. The amplifier
should only be operated with a SPEAKER cable connected to the proper impedance output. The two 8
ohm jacks are wired in parallel. If you want to run 2 cabs they need to be 16 ohms and each connected
to the two 8 ohm output jacks
MAIN FUSE: Replace with a 2 Amp slo blow fuse for 120V or 1.5 Amp slo blow for 230V. If this fuse
blows the most likely the result of a bad tube. Constant blowing of this fuse (even when using new
tubes) is an indication that something could be seriously wrong with your amp. STOP and call us so we
may help you diagnose.
MAINS INPUT: Plug the supplied IEC power cord here and into a 115v wall outlet to power the amplifier.
