Morgan MEDesign BASIC-ONE CSA-UL - Page 16

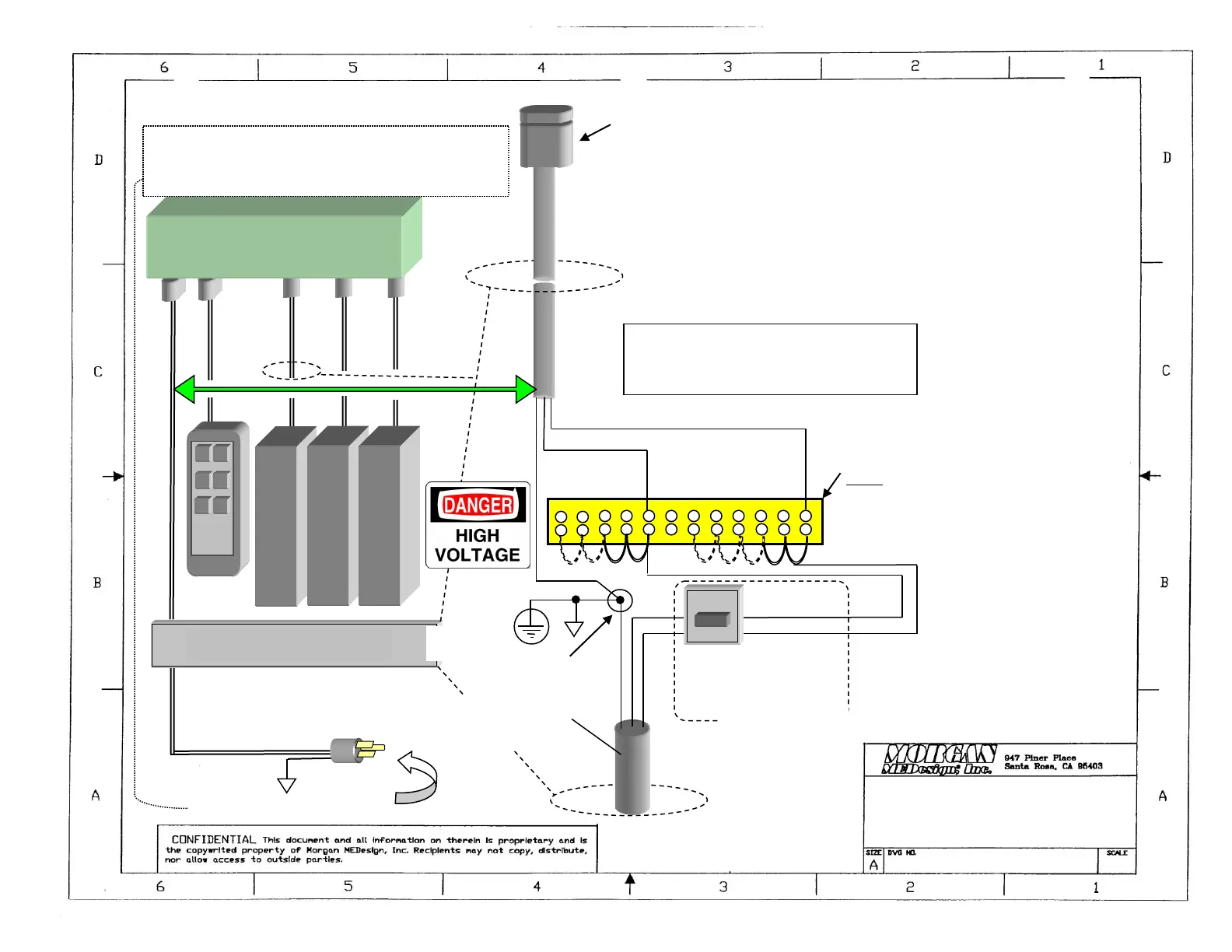

Schematic AC 220 V Model
BASIC-ONE – (UL- 544)
90001-02
AC INPUT
AC INPUT 220 VAC, 60 HZ
12 11 10 9 8 7 6 5 4 3 2 1
TERMINAL STRIP S1
NOTE:
MAY HAVE ANY NUMER OF
TERMINALS DEPENDING ON
APPLICATION
DUAL CIRCUIT
BREAKER 16A
ON LID COVER, BASE
POWER CABLE TO “MAGNETICS” “KOM” SERIES POWER CONTROLLER
LEGEND-
W = WHITE WIRES - NEUTRAL - COMMON
B = BLACK WIRES – HOT – ACTIVE PHASE
G = GREEN AND GROUND WIRES
BLOCK DIAGRAM
CHASSIS
CONNECTION
G B
W
W
B
HOLE IN LID
OF BASE
HOLE IN LID OF BASE
B
W
G
WITHIN BASE
LIFT MOTOR
TREND MOTOR
R/L TILT MOTOR
AC CONTROL 1 2 3
KOM CONTROLLER
IN
OUT
OUT
IN
TYPES OF KOM CONTROL UNITS – 220 V
KOM 14-020A-000 5 PORT, 3 PORTS USED
KOM 33-020A-000 3 PORT, ALL PORTS USED
W
B
HOLE
MAINS, LINE IN, 3 WIRE,
PROTECTIVE GROUND
HOSPITAL GRADE
ON FRONT PANEL
