C-2 OUTLINE OF SYSTEMS
4. CHUCK AND CYLINDER SYSTEM
The chuck and cylinder system consists of the following elements:
• Hydraulic unit
• Solenoid valve
• Hydraulic cylinder
• Draw bar (pipe)
• Chuck
• Other accessories
The chuck is mounted on the spindle nose and the hydraulic cylinder at the rear end of the
spindle.
The chuck and the cylinder are connected by a pipe.

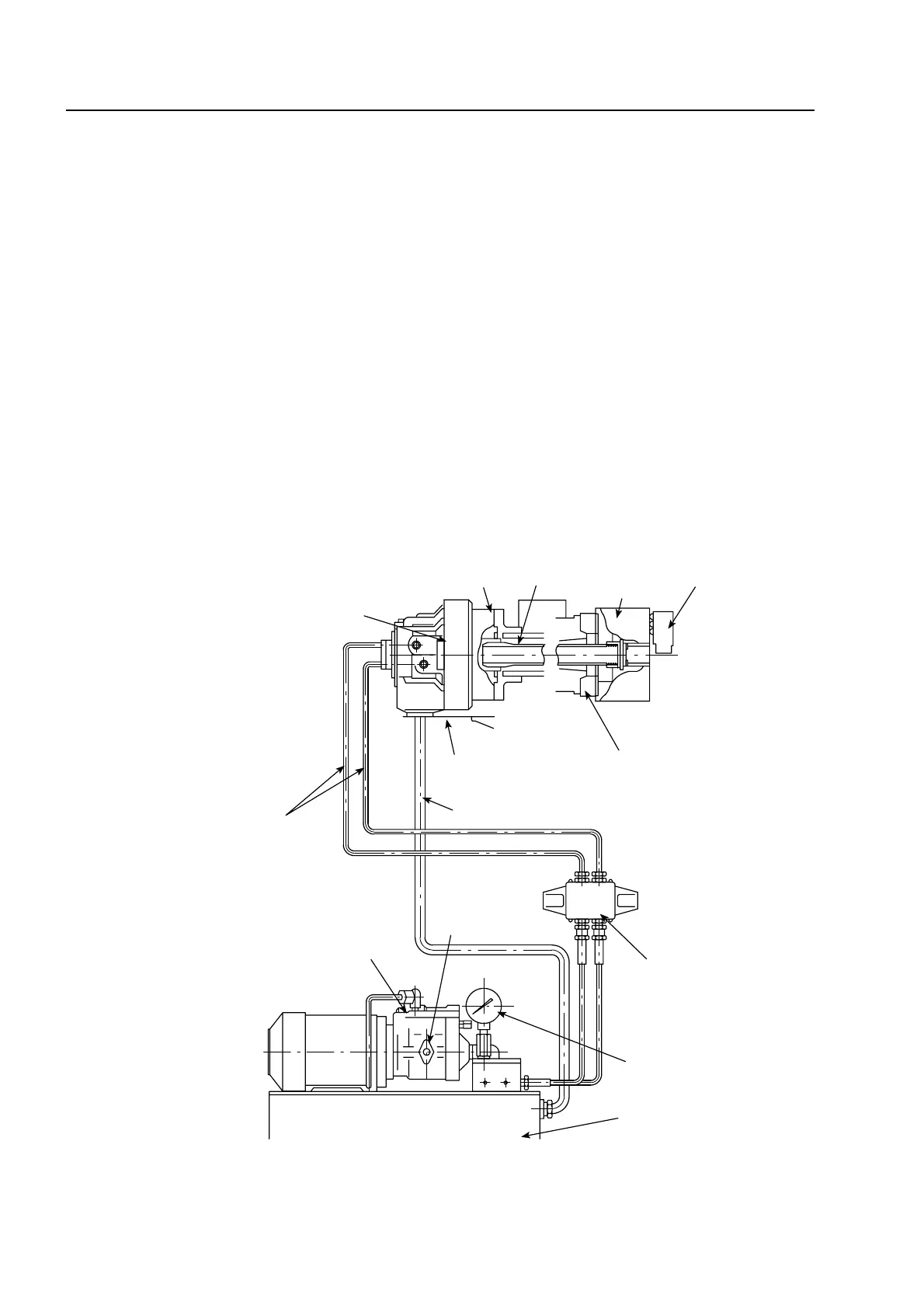

<Schematic>
Cylinder
Cylinder adapter
Draw bar (pipe)
Chuck
Top jaw
Flexible hose
Support
Drain hose
Back plate (flange)
Solenoid valve
Tank
Pressure gage
Hydraulic unit
Pump
Pressure adjusting screw
