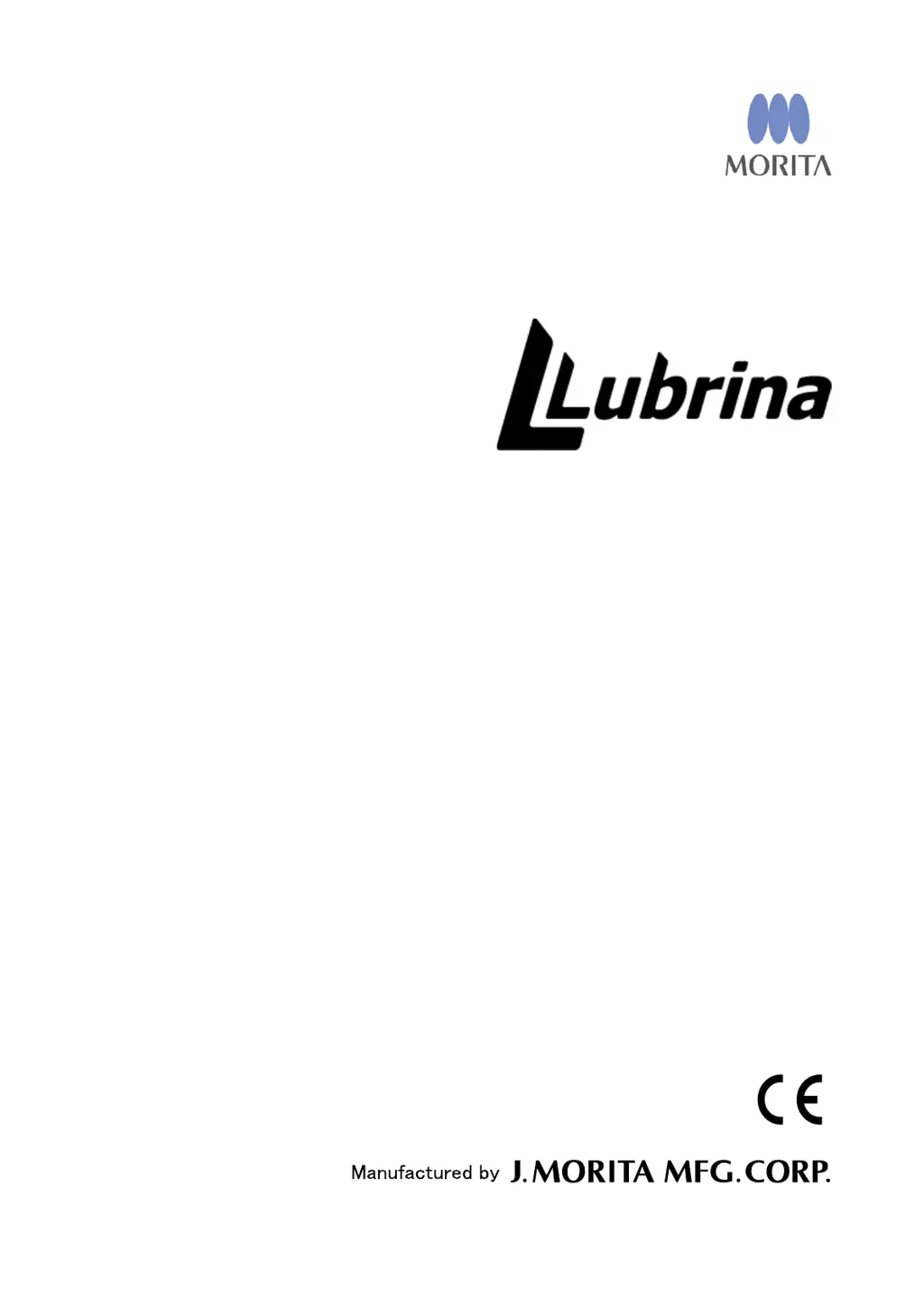

Morita Lubrina HIM-1 User Manual (English)

Questions and Answers:

J
Jeffery HowardAug 4, 2025
Why is my Morita Lubrina HIM-1 releasing oil mist and making surfaces oily?
- R
  Ryan WareAug 4, 2025
  If your Morita dental equipment releases oil mist and the surfaces become oily, several factors could be at play. First, the type of handpiece and coupling used might contribute to oil mist release. Second, high air pressure could be the culprit; try lowering the pressure to 0.3 MPa. Finally, if using a straight attachment, ensure a bur is properly inserted, consulting the handpiece's user instructions for guidance.
A
Andre LopezAug 11, 2025
What to do if Morita Dental equipment doesn't start and the spray can empty lamp is blinking?
- G
  Greg TownsendAug 11, 2025
  If your Morita dental equipment doesn't start when you press the Start Switch and you hear a double beep while the Spray can Empty Lamp is blinking, consider these possible causes: 1. The front door may be open, so ensure it is properly closed. 2. The empty can might not be correctly installed; replace it. 3. The compressor air might not be connected; ensure it is properly connected. 4. The air regulator might not be set correctly; adjust it as needed.
K
Kristen TaylorAug 16, 2025
Why does my Morita Lubrina HIM-1 Dental equipment have an unusual odor and dirty surfaces?
- T
  tgregoryAug 16, 2025
  If you notice an unusual odor or unusually dirty surfaces with your Morita dental equipment, it could be due to several reasons. Avoid use without connecting a handpiece, and only select couplings that have a handpiece connected. Also, the oil pad or tray filter might be saturated, so clean the Lubrina and replace the oil pad or filter accordingly. Ensure the spray can is installed correctly and the air regulator is properly set.
C
Carlos MillerAug 22, 2025
What to do if I cannot install the spray can or oil leaks from the spray can on my Morita Lubrina HIM-1?
- M
  Marissa BrownAug 22, 2025
  If you cannot install the spray can or notice oil leaks from the spray can with your Morita dental equipment, it might be due to a bent spray can nozzle pin, in which case you should replace the can. Alternatively, you might be using the wrong stand for the spray can; ensure you are using the proper stand. Finally, if you are using a spray can from a maker other than Morita, switch to using a Morita spray can.
K
Kevin RandolphAug 28, 2025
How to fix a Morita Lubrina HIM-1 Dental equipment when the main power lamp does not light up?
- K
  Karen BrownAug 28, 2025
  If the main power lamp on your Morita dental equipment does not light up, make sure the power supply cord is properly plugged into both the supply socket and the Lubrina unit. If not, plug them in correctly.

Morita Lubrina HIM-1 Specifications

General

Brand	Morita
Model	Lubrina HIM-1
Category	Dental equipment
Language	English

Summary

Prevent Accidents

Warning and Prohibitions

Technical Specifications

Product Description

Details on the unit's purpose, application, and function for maintaining dental handpieces.

Operating Principle

Explanation of the physical methods and mechanisms used for dental handpiece maintenance.

Parts Identification

Set Up: Air Connection

Air Regulator Adjustment

Setting the air regulator dial between 0.3 and 0.5 MPa for optimal performance.

Set Up: Power and Coupling

Power Cord Connection

Connecting the power cord to the unit and receptacle, with safety precautions.

Coupling Installation

Fitting the coupling onto the nozzle and tightening its nut securely.

Set Up: Tray and Spray Cans

Tray and Filter Installation

Placing the tray filter in the tray and sliding it into place.

Spray Can Stand Setup

Opening the side door and positioning spray can stands.

Spray Can Installation

Securing Spray Cans

Pushing lock levers down to secure spray cans and ensure proper operation.

Spray Can Removal

Operation: Handpiece Sterilization

Handpiece Preparation and Sterilization

Steps to take off, clean, disinfect, and autoclave the handpiece.

Lubrina Maintenance Procedure

Performing chuck maintenance and the lubrication process.

Operation: Chuck Cleaning

Unit Activation and Handpiece Prep

Turning on the unit and preparing the handpiece for maintenance.

Chuck Lubrication Process

Aligning and Holding Handpiece

Aligning the handpiece and holding it for the cleaning and lubrication cycle.

Handpiece Maintenance Details

Connecting Handpiece to Coupling

Attaching the handpiece to its coupling securely, noting spray can usage.

Lubrication Mode Selection

Selector Switch Operation

Using selector switches for connected handpieces and initiating maintenance.

Completing Handpiece Maintenance

Removing Handpieces and Post-Wipe

Removing handpieces and wiping them with Ethanol after maintenance.

Changing Lubrication Modes

Lubrication Mode Settings

Adjusting lubrication time for different modes (Short, Long, Blow-out).

Adjusting Lubrication Settings

Setting Selector Switch Modes

Configuring lubrication time for each selector switch using the Start Switch.

Component Replacement

Coupling Replacement Procedure

Steps for loosening, fitting, and tightening replacement couplings.

Fuse Replacement

Instructions and warnings for replacing fuses in the unit.

Maintenance: Front Door

Front Door Removal and Cleaning

Removing the front door by releasing pins and washing it.

Maintenance: Internal Components

Cleaning the Main Body

Cleaning the main body with approved solutions, avoiding harsh chemicals.

Oil Pad Replacement

Replacing the oil pad when saturated to maintain unit cleanliness.

Maintenance: Air Regulator and Tray

Draining the Air Regulator

Periodically draining water from the air regulator to prevent equipment damage.

Cleaning the Tray

Cleaning the tray monthly to prevent oily film buildup.

Maintenance: Filters and Couplings

Tray Filter Replacement

Replacing the tray filter and ensuring the tray is fully inserted.

Cleaning Couplings

Cleaning couplings with Ethanol, checking O-ring seating.

Maintenance and Inspection

Regular Inspection Checklist

Routine checks of power cord, switches, pads, regulators, and filters.

Required Replacement Parts

List of parts requiring regular replacement, such as fuses and pads.

Troubleshooting

Service Contacts

Electromagnetic Disturbances (EMD) - Emissions

Emissions Compliance and Environment

Compliance with standards for emissions and guidance for the operating environment.

EMD Safety Precautions

Warnings and guidelines for safe use regarding electromagnetic disturbances.

Electromagnetic Disturbances (EMD) - Immunity

Immunity Test Levels and Guidance

IEC 60601 immunity levels and guidance for electrostatic discharge, transients, surge, and voltage variations.

Electromagnetic Disturbances (EMD) - RF Immunity

RF Immunity Standards and Calculations

RF immunity standards, test levels, and separation distance calculations.

RF Environment and Interference

Guidance for RF equipment and managing interference from fixed transmitters.
