Installing the Gas Cylinder
To operate you will need (1) precision-filled gas cylinder between 11kg and 15kg.
Your barbecue will perform better if propane gas cylinder is used.
CAUTION: Gas cylinder must be properly disconnected and removed prior to moving this grill.
Specification of Gas Cylinder（not included）.
• Gas Type: I3+(28-30/37) (Propane at 37mbar)
• Connection: 27mm (compatible with Press-on type regulator).
Note: Propane gas sold with the press-on/push-on/snap-on type connector is often sold as “Patio Gas”.
• Weight: 11 - 15 kg
Place Gas Cylinder
Gas Regulator
The type of the regulator to be used shall comply with the standard EN 16129: 2013.
Read thoroughly before use

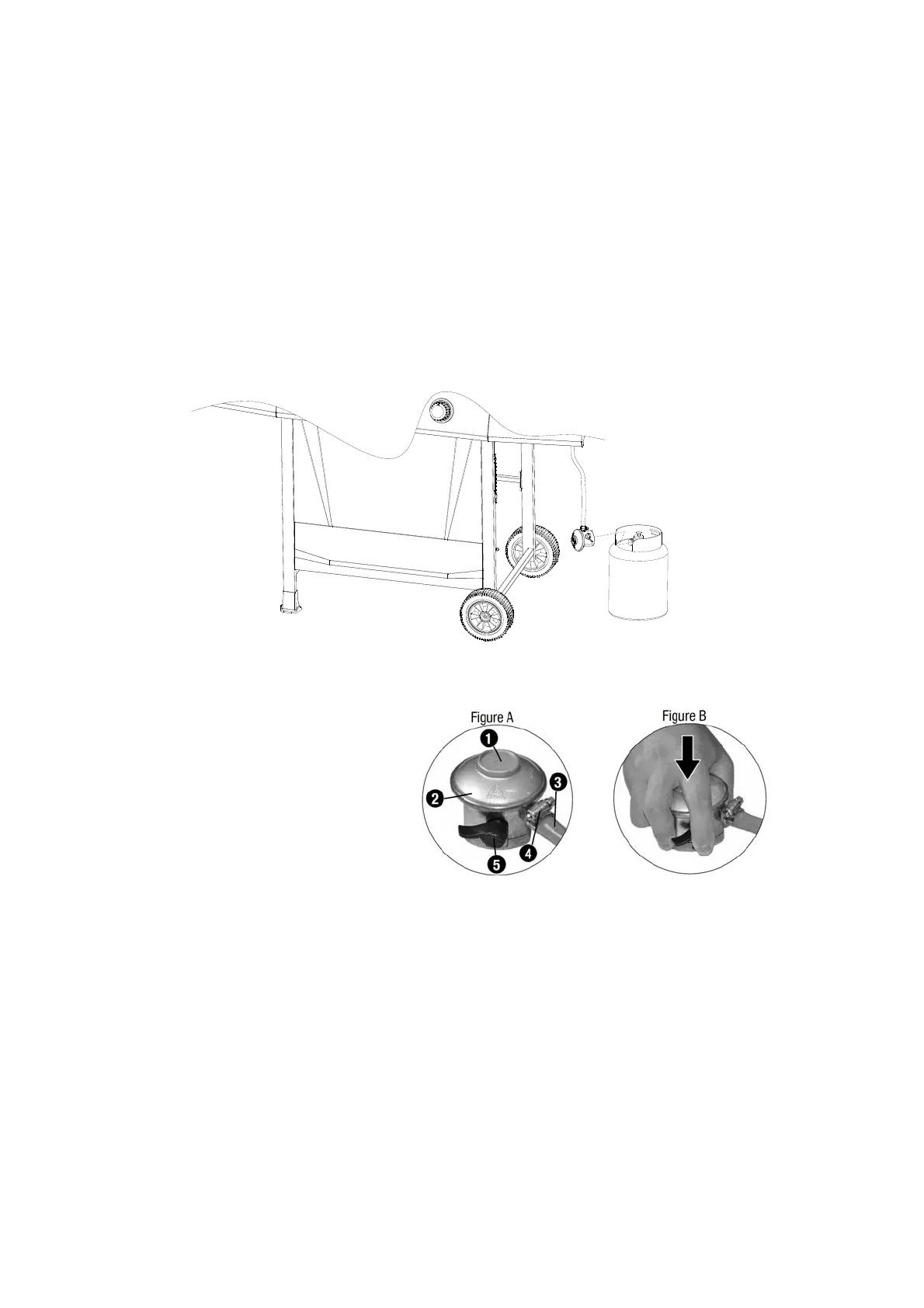

Gas Regulator Parts
① Regulator Identification Label
② Regulator Assembly
③ Regulator Rubber Hose
④ Hose Clamp
⑤ Regulator Valve Handle and Release Button
Connecting and Operating Conditions
The “Snap on compact’’ is a regulator designed to supply gas to consuming appliance at a pressure and capacity as
indicated on the regulator identification label.
CAUTION: The gas cylinder must always be used on the upright position.
CAUTION: Whenever used outdoors, the ‘’snap on compact’’ should be suitable protected against rain.
CAUTION: Never use a flame to look for leaks, do it using a soap solution.
CAUTION: In case of any difficulties or problems, close the gas supply immediately and contact your dealer.
CAUTION: Never move or displace the gas cylinder when it is on.
CAUTION: Gas cylinder must be properly disconnected and removed prior to moving this grill.
Fitting the Hose
The Regulator Rubber Hose is ready-fitted to the Regulator – ensure that the hose clamp is firmly securing it.
WARNING!
When in use place the gas
bottle on the floor away from
the base of the BBQ.
Gas
