MODEL 15
CAN TIPPER
The Specialist In Drum Handling Equipment
Website: www.MORSEmfgco.com
COPYRIGHT 2006 MORSE MFG. CO., INC. Form PL 15 (0506) (Updated 10/2006) Page 2
ASSEMBLY INSTRUCTIONS:
1. Please unpack and identify the following parts:
1 - Can Holder with Catch
1 - Base Assembly
1 - Center Brace
6 - 1/4-20 x 5/8 Panhead Screws
6 - 1/4-20 Two Way Lock Nuts

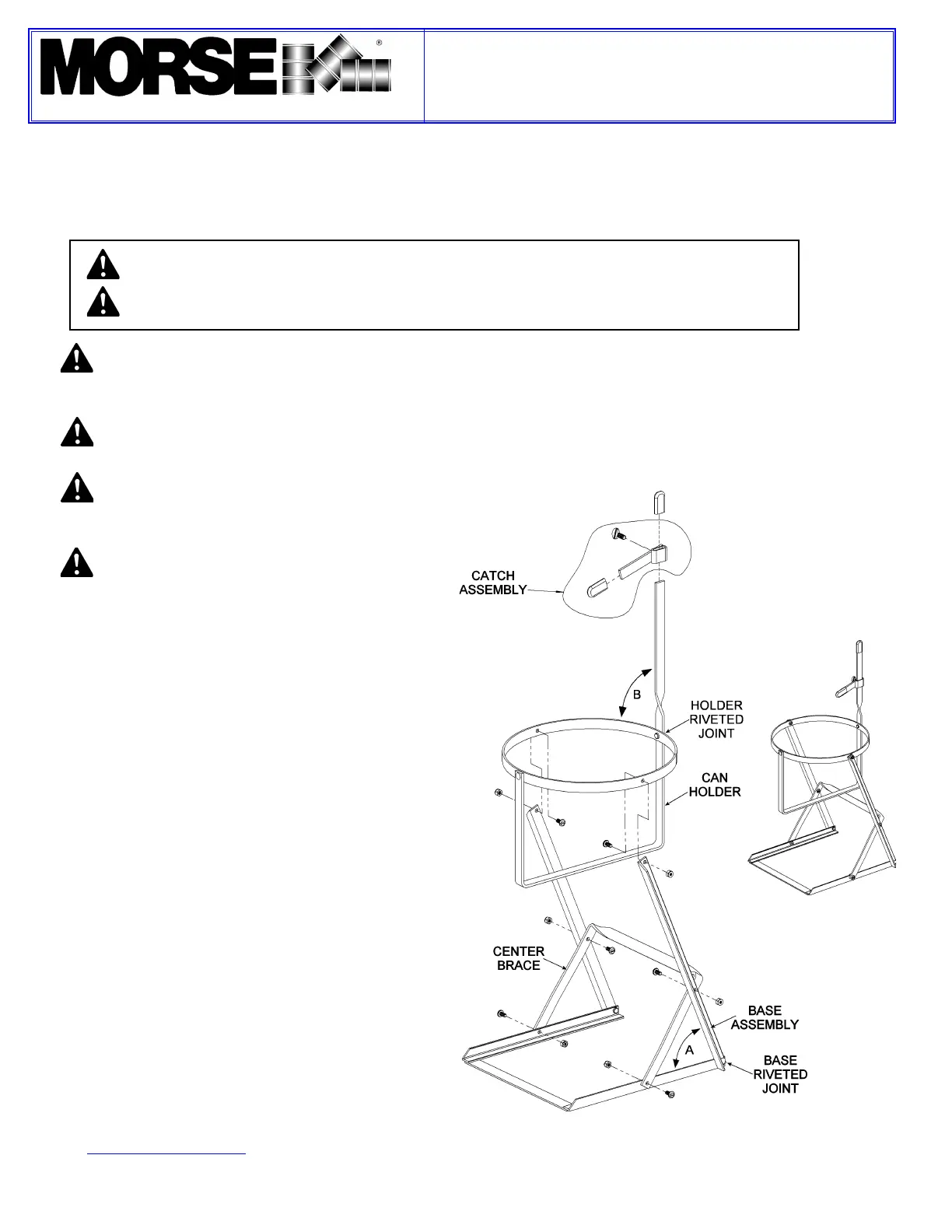

2. Spread the base assembly open, hinging at the base riveted
joints (see curved arrow A in parts diagram).
3. Fasten the center brace in place using four screws and nuts
as shown. Tighten securely.
4. Rotate the can holder ring to horizontal position, hinging at the
holder riveted joint, with the catch upright as shown (see
curved arrow B in parts diagram).
5. Place the can holder between the uprights of the base as
shown. Insert screws (from inside of ring) through holes in the
can holder ring and through the base uprights. Thread the
nuts onto the bolts but do not tighten completely. The nuts
should be just loose enough to allow the can holder to pivot
freely.
6. Place a few drops of oil on the pivot bolts before using and
reapply oil periodically to minimize wear.
MAINTENANCE:
1. Periodically inspect all moving parts, framework, and contact
areas for signs of wear, fatigue, or loosening.
for Morse Can Tipper Model 15
Manufactured 05/2006 to _______
Safety Information (continued)
WARNING - Indicates a situation which, if not avoided, could result in serious injury or death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the machine.
CAUTION - Do Not Modify the Unit - Under no circumstances should any modifications be made to the Morse
machinery without factory authorization. Any modifications may void the warranty. This machine was designed to
perform a specific job and alterations may result in injury to operator or damge to the machine.
WARNING - No Loose Fitting Clothing - Wear close-fitting clothing and safety equipment appropriate to the job.
Loose fitting clothing may become caught on the machinery and cause severe personal injury.
WARNING - Wear Safety Shoes -
Wear safety shoes with non-slip
soles and hard toe protection.
CAUTION: DO NOT exceed
weight capacity of 75 Lb.
