morse 40 - Parts Lists and Diagrams

The Specialist In Drum Handling Equipment
Models 40 and 40-30
Drum Cradle Trucks
Operator’s Manual for Morse Drum Cradle Truck Models 40 and 40-30
morsedrum.com
Copyright 2020 - Morse Mfg. Co., Inc. Form PL40 (Updated 8 Jan, 2020) 4

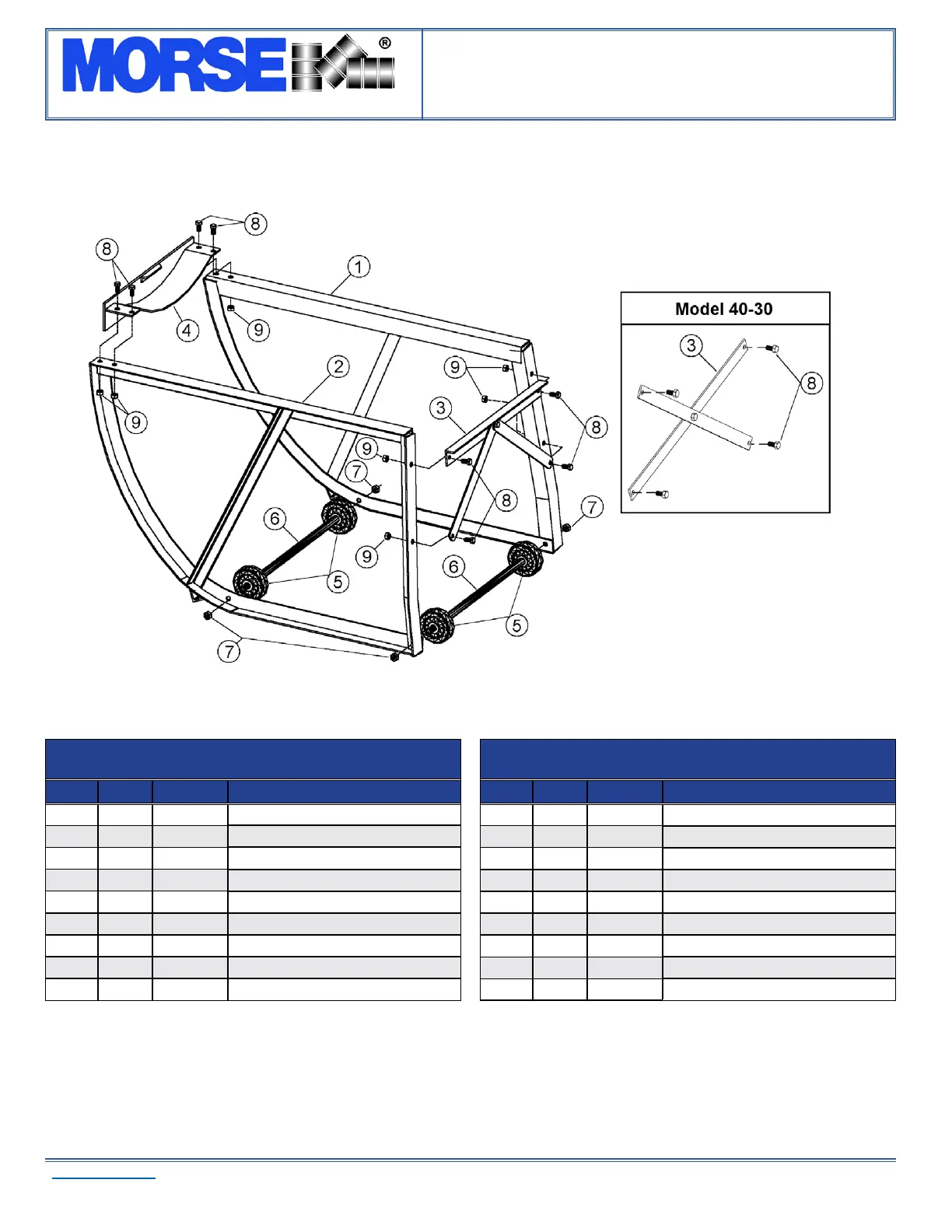

Model 40
ITEM QTY. PART # DESCRIPTION
1 1 1910L-P
SIDE FRAME WELD, LEFT, 40
2 1 1910R-P
SIDE FRAME WELD, RIGHT 40
3 1 1915-P
ASM, BACK STRAP, 40
4 1 1918-P
WELD, NOSE PIECE, 40
5 4 210-P
WHEEL, MORTUF 3” X 1/2”BORE 36
6 2 209-P
AXLE, 5/8” X 18”, 40
7 4 1169-P
NUT, 3/8-16 REV HEX LOCK
8 8 215-P
HHCS, 5/16-18 X 5/8 GR2
9 8 1634-P
NUT, 5/16-18 WHIZ LOCK
Model 40-30
ITEM QTY. PART # DESCRIPTION
1 1 1910L-P
SIDE FRAME WELD, LEFT, 40
2 1 1910R-P
SIDE FRAME WELD, RIGHT 40
3 1 1922-P
ASM, BACK STRAP, 40-30
4 1 1918-P
WELD, NOSE PIECE, 40
5 4 210-P
WHEEL, MORTUF 3” X 1/2”BORE 36
6 2 209-P
AXLE, 5/8” X 18”, 40
7 4 1169-P
NUT, 3/8-16 REV HEX LOCK
8 8 215-P
HHCS, 5/16-18 X 5/8 GR2
9 8 1634-P NUT, 5/16-18 WHIZ LOCK
