54

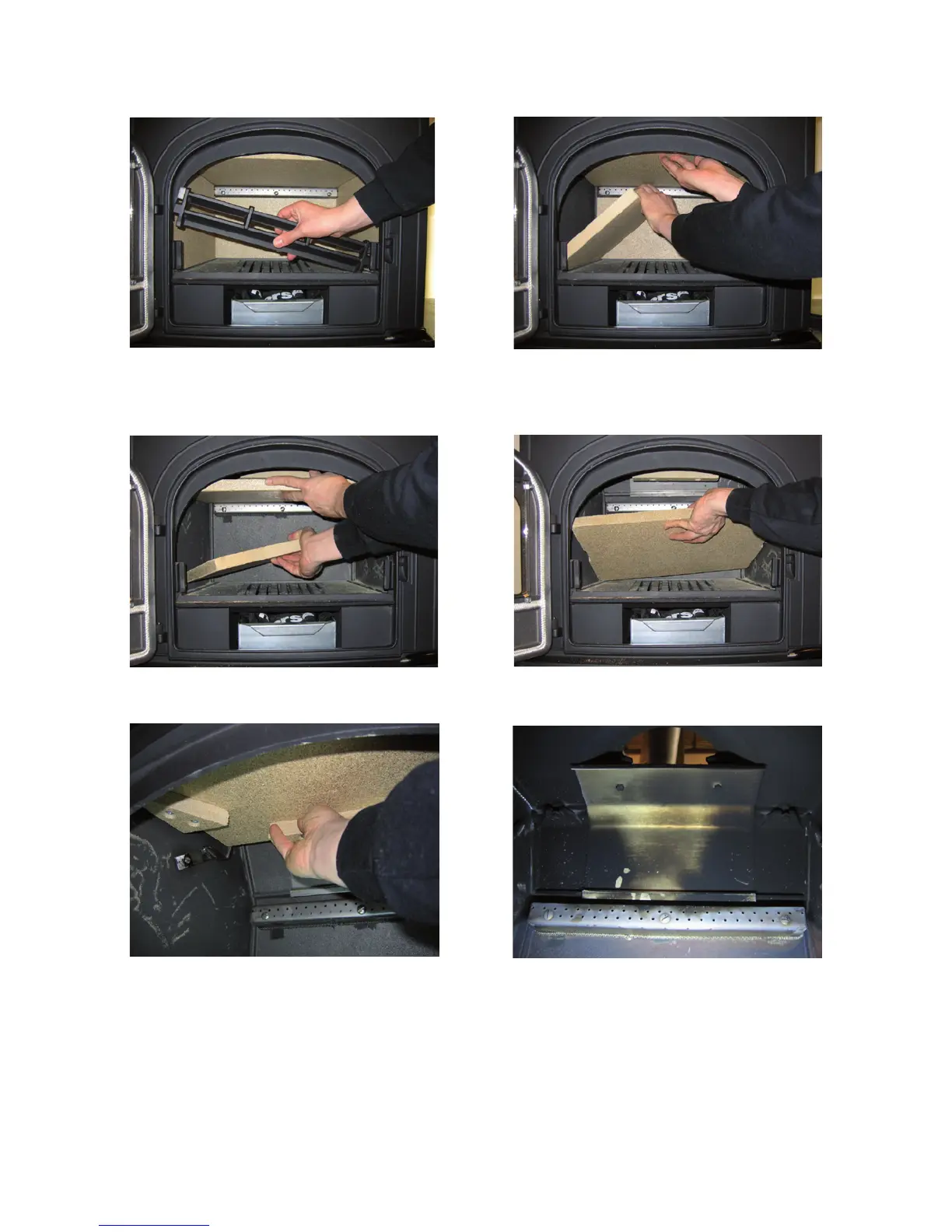

b. Lift the lower baffleplate a bit and hold
in that position. Carefully lift and remove
the two side bricks.
c. Remove the firebrick from the back-
wall
d. Remove the lower baffleplate
e. The upper baffleplate is removed from
the brackets and lifted out of the fire-
champer
f. Unscrew the 2 bolts, which is mounted
to the stainless steel baffle Dismantle the
flue collar. Pull out the cast iron insert
from the steel box
Dismantling the steel-box
a. Lift and remove the front grate.
