Do not connect to any air distribution duct or system.
Important: If the installation instructions are not followed carefully, it may cause
dangerous situations like chimney - and house fires. Follow the instructions
carefully and do not deviate from them as it may cause injuries to people or
property.
material until the bottom becomes horizontal. It
is an advantage to fasten the box by two screws
drilled through the bottom 2-3 cm. from the
corners of the back.

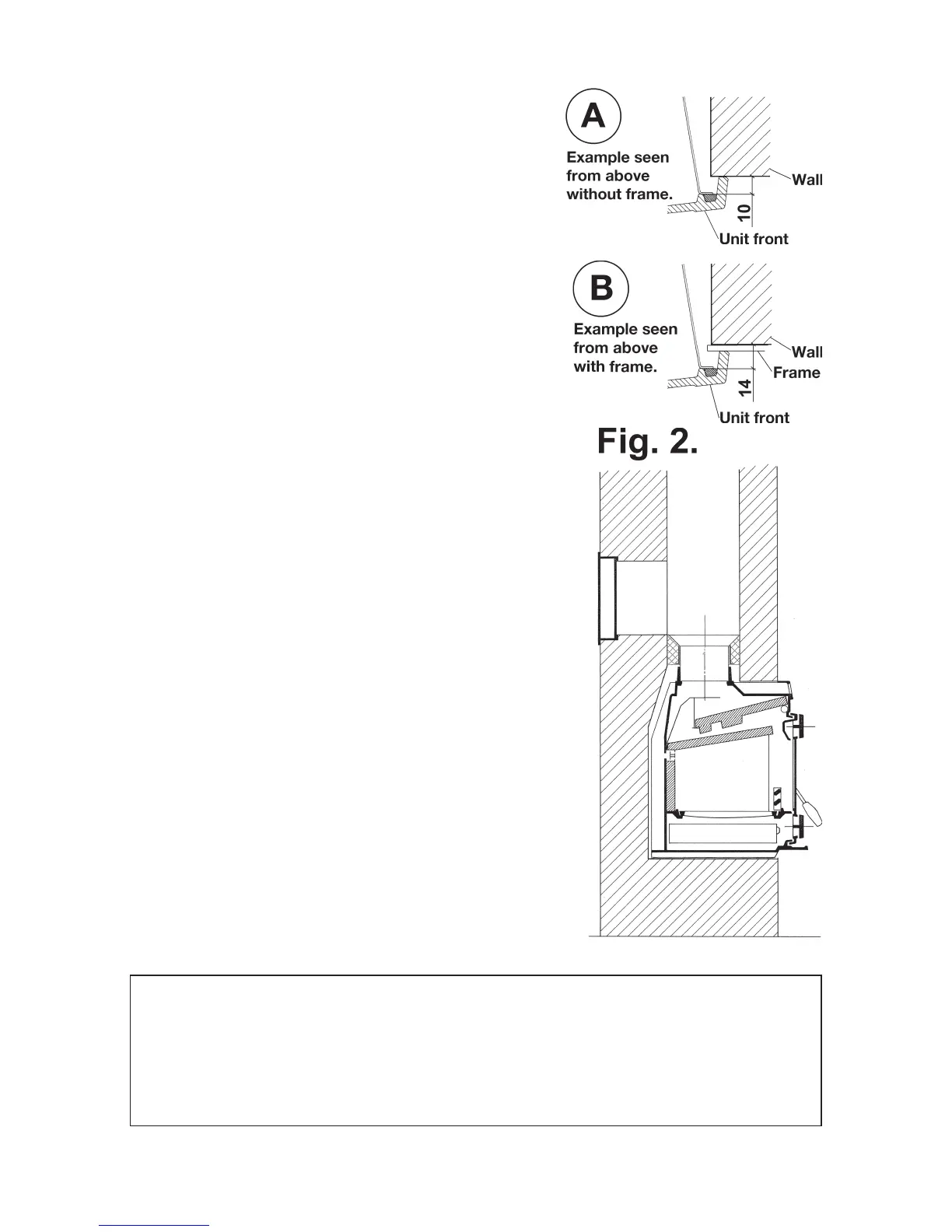

Figure 2:
The connection between the insert and the
chimney is made by a dia. 155 mm. fluecollar,
which is fasten in the smoke pipe socket by the
enclosed selfcutting screws (spoil in the boring
dia. 3 mm.) and tightened by the enclosed
fireproof seal. Tighten between smoke pipe and
chimney with fireproof clay. It is important to use
a pipe bush and fireproof seal in order to avoid
cracks in the fireproof clay, caused by thermal
exspansion of the smoke pipe. If no access door
exists beforehand, as shown in figure 2, it may be
an advantage to mount one. Thus the mounting
of the smoke pipe is facilitated and some times
it is a demand from the building authorities. In
order to obtain a correct execution of the above,
it might be an advantage to consult the local
chimneysweep or the building authorities.
4. Lift and push the insert in its place in the steel
box. Assemble the internal of the stove and flue
collar. (see item a-f page 5, reverse order)
5. The initial fire should be small in order to properly
cure the cast iron parts. Allow the stove to warm
up before creating a very hot fire. Never let the
stove become superheated. Superheating may
damage the casting, fire bricks and the Senotherm
painted finish. Superheating is when any part of
the stove, grates or stove pipe assumes a red
glow
