MORTEX E30B5D015ABC - Parts for 1;2 HP Constant Torque Motor Models

MORTEXPRODUCTSINC FORTWORTH,TX76106 Page18






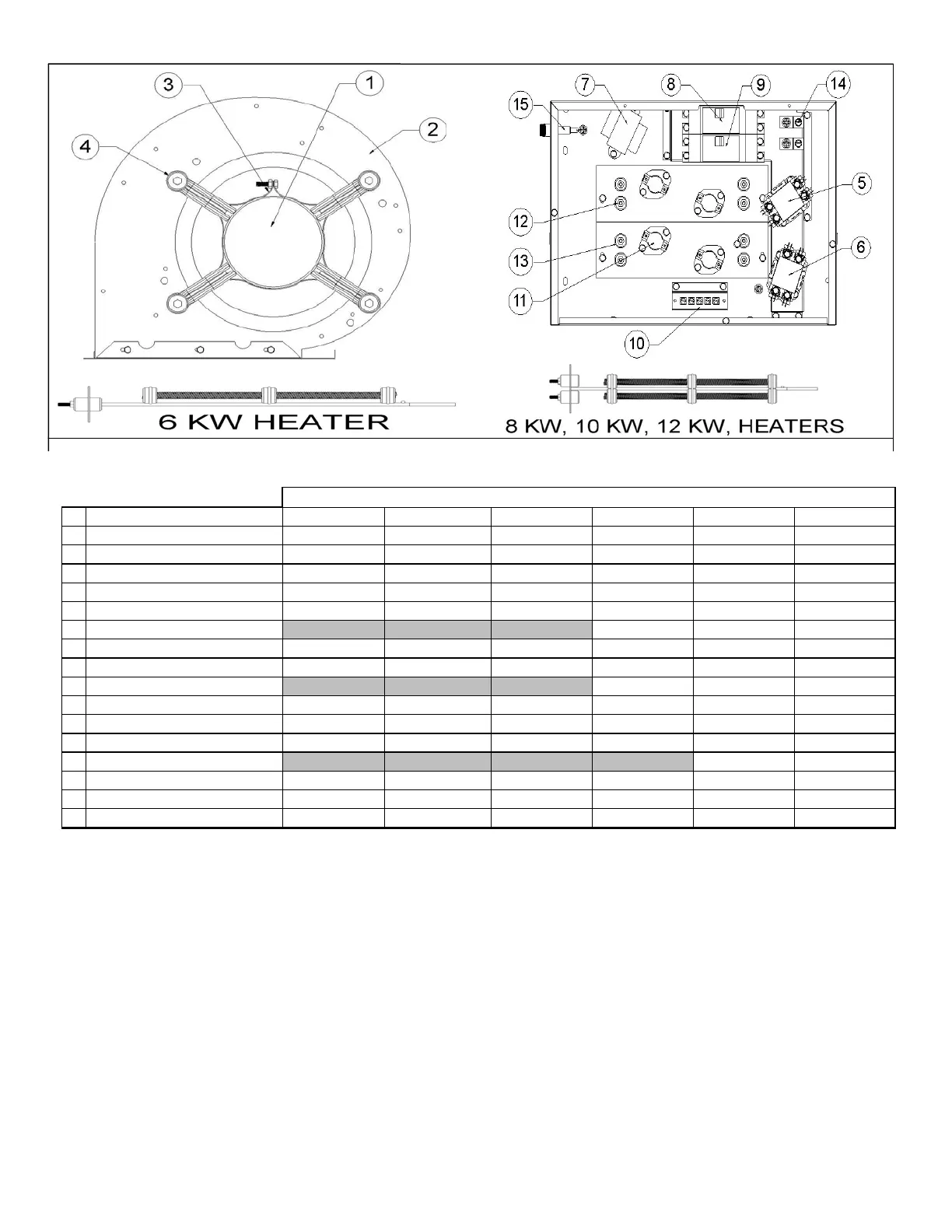

Figure 14: Replacement Parts Item Identification for Electric Heat Models with a 1/2 HP Constant Torque Blower Motor
Item Description E30B4D006AAC E30B4D008AAC E30B4D010AAC E30B4D012ABC E30B4D015ABC E30B4D020ABC
1 1/2 HP CT BLOWER MOTOR R65BV0026 R65BV0026 R65BV0026 R65BV0026 R65BV0026 R65BV0026
2 BLOWER HOUSING & WHEEL R69AD0018 R69AD0018 R69AD0018 R69AD0018 R69AD0018 R69AD0018
3 MOTOR MOUNT BAND R66AB0065 R66AB0065 R66AB0065 R66AB0065 R66AB0065 R66AB0065
4 MTR MT ARM & GROMMET R66AB0066 R66AB0066 R66AB0066 R66AB0066 R66AB0066 R66AB0066
5 HEATER CONTACTOR 1 R68AB0019P R68AB0019P R68AB0019P R68AB0019P R68AB0019P R68AB0019P
6 HEATER CONTACTOR 2 R68AB0019P R68AB0019P R68AB0019P
7 TRANSFORMER R68AA0003 R68AA0003 R68AA0003 R68AA0003 R68AA0003 R68AA0003
8 CIRCUIT BREAKER 1 R68BAD015 R68BAD017 R68BAD018 R68BAD015 R68BAD018 R68BAD018
9 CIRCUIT BREAKER 2 R68BAD014 R68BAD013 R68BAD017
10 LOW VOLTAGE TERMINAL BLOCK 68DC0013 68DC0013 68DC0013 68DC0013 68DC0013 68DC0013
11 LIMIT 155
°F
R68CA0008 R68CA0008 R68CA0008 R68CA0008 R68CA0008 R68CA0008
12 ELECTRIC HEATER ELEMENT 1 R67AB0022 R67AB0016 R67AB0017 R67AB0018 R67AB0017 R67AB0017
13 ELECTRIC HEATER ELEMENT 2 R67AB0015 R67AB0017
14 GROUND LUG R66GF0022 R66GF0022 R66GF0022 R66GF0022 R66GF0022 R66GF0022
15 FUSE HOLDER R68MHA001 R68MHA001 R68MHA001 R68MHA001 R68MHA001 R68MHA001
15 3 AMP FUSE R68MH0001 R68MH0001 R68MH0001 R68MH0001 R68MH0001 R68MH0001
MODELS
Table 8: Replacement Parts for Electric Heat Models with a 1/2 HP Constant Torque Blower Motor

