Mosley TRAP MASTER MINI-32-AW - Page 2

A S S E M B L Y I N S T R U C T I O N S F O R
MOSLEY MODEL MINI-32-AW
Specifications
Frequency, MHz
28, 24, 21, 18, 14
Power Rating, watts CW
500
Power Rating, watts SSB
1000
Power Rating, AM/FM
250
Power Rating, RTTY/AMTOR
250
VSWR at frequency
1.0/1 to 1.5/1
Forward Gain, dBd 10 meters
5.1
Forward Gain, dBd 12 meters
0
Forward Gain, dBd 15 meters
4.5
Forward Gain, dBd 17 meters
0
Forward Gain, dBd 20 meters
3.3
Front-to-Back Ratio, dB 10 meters
17 (avg.)
Front-to-Back Ratio, dB 12 meters
0
Front-to-Back Ratio, dB 15 meters
17 (avg.)
Front-to-Back Ratio, dB 17 meters
0
Front-to-Back Ratio, dB 20 meters
17 (avg.)
Boom Length
6 ft
1.83 m
Maximum Element Length
19.6875 ft
6 m
Turning Radius
10.29 ft
3.14 m
Mast Size hardware (equipped)
1.5 in
3.81 cm
Assembled weight
12.5 lbs
5.67 kg
Wind Surface Area
3.7 sq ft
.344 sq m
Wind Load, EIA Standard 80 MPH
49 lbs
22.23 kg
Warranty
2
Recommended Coax
Belden RG-8 / RG-213

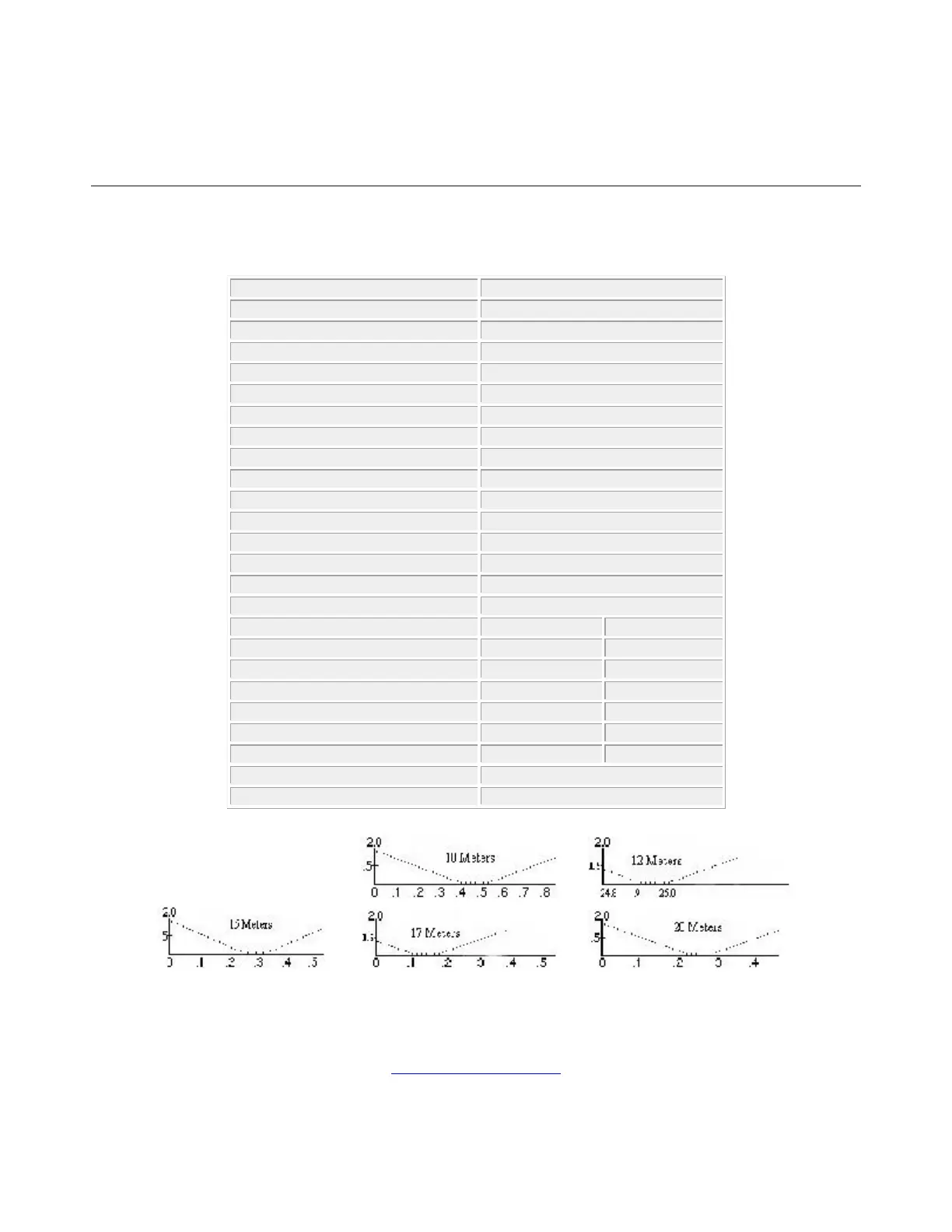

Average SWR Curves
 Mosley Electronics, Inc.
1325 Style Master Drive
Union, Missouri 63084
Phone 636-583-8595 • Fax 636-583-0890
www.mosley-electronics.com
