Motive DELPHI series User Manual

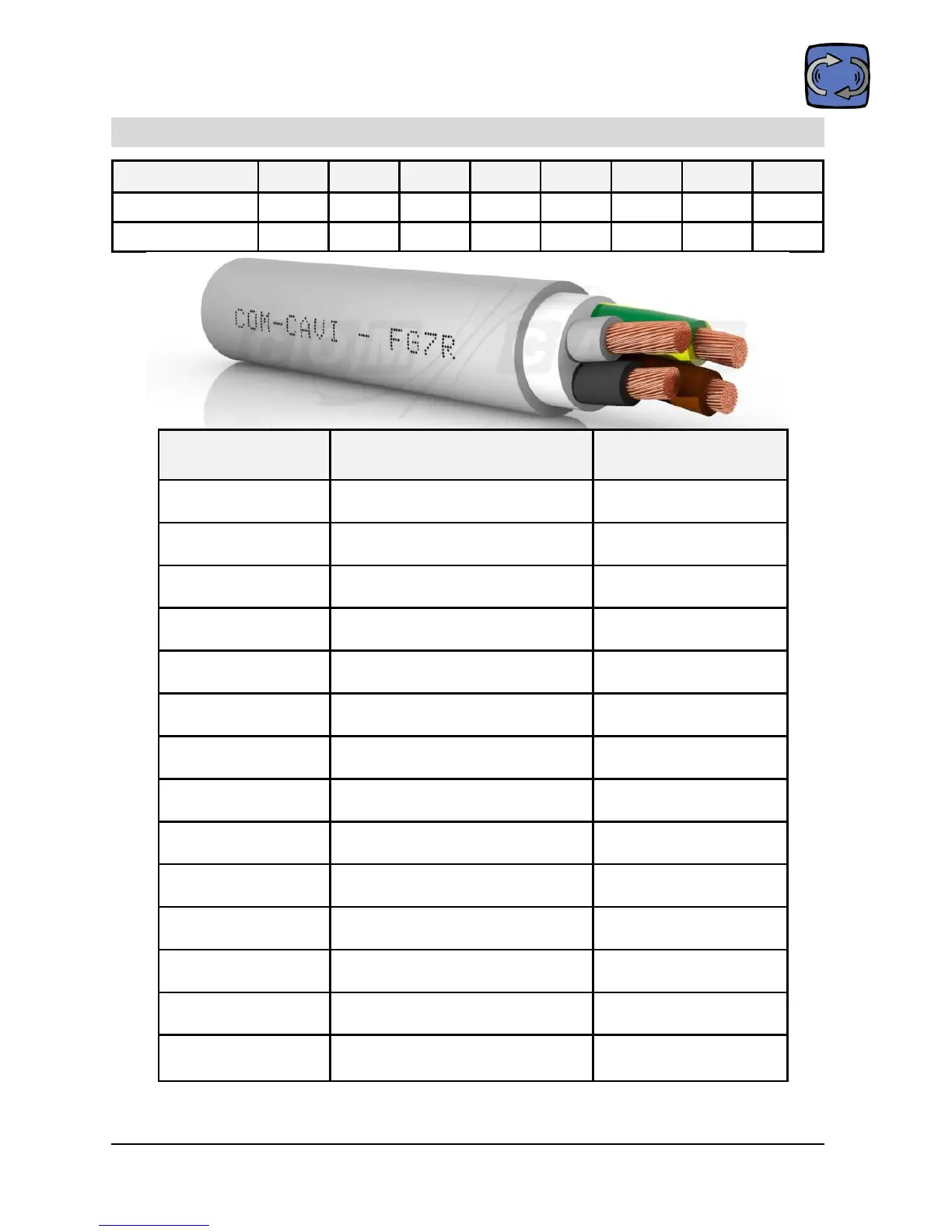

Technical Manual delphi series motors rev.14 page 15 of 74
Wiring Diagrams (DELPHI 3PH)
Motor type 56 63-100
112 132 160-180
200-225
250-355
400
Cable gland M16 M20 M25 M32 2xM40
2xM50
2xM63
3xM63
Cables diam mm
3-7 10-14 9-16 13-20 20-26 25-31 29-35 29-35
Cod. motive cavo descrizione cavo
Corrente motore
In [A]
CAVOFG7-1.5
FG7OR 4G1,5 mm
2
0 ÷ 10
CAVOFG7-2.5MT
FG7OR 4G2,5 mm
2
11 ÷ 16
CAVOFG7-4
FG7OR 4G4 mm
2
17 ÷ 22
CAVOFG7-6
FG7OR 4G6 mm
2
23 ÷ 32
CAVOFG7OR4G10
FG7OR 4G10 mm
2
33 ÷ 50
CAVOFG7OR4G16
FG7OR 4G16 mm
2
51 ÷ 64
CAVOFG7OR4G25
FG7OR 4G25 mm
2
65 ÷ 90
CAVOFG7OR4G35
FG7OR 4G35 mm
2
91 ÷ 110
CAVOFG7OR4G50
FG7OR 4G50 mm
2
111 ÷ 130
CAVOFG7OR4G70
FG7OR 4G70 mm
2
131 ÷ 170
CAVOFG7OR4G90
FG7OR 4G90 mm
2
171 ÷ 200
CAVOFG7OR4G120
FG7OR 4G120 mm
2
201 ÷ 240
CAVOFG7OR4G150
FG7OR 4G150 mm
2
241 ÷ 270
CAVOFG7OR4G240
FG7OR 4G240 mm
2
271 ÷ 360
