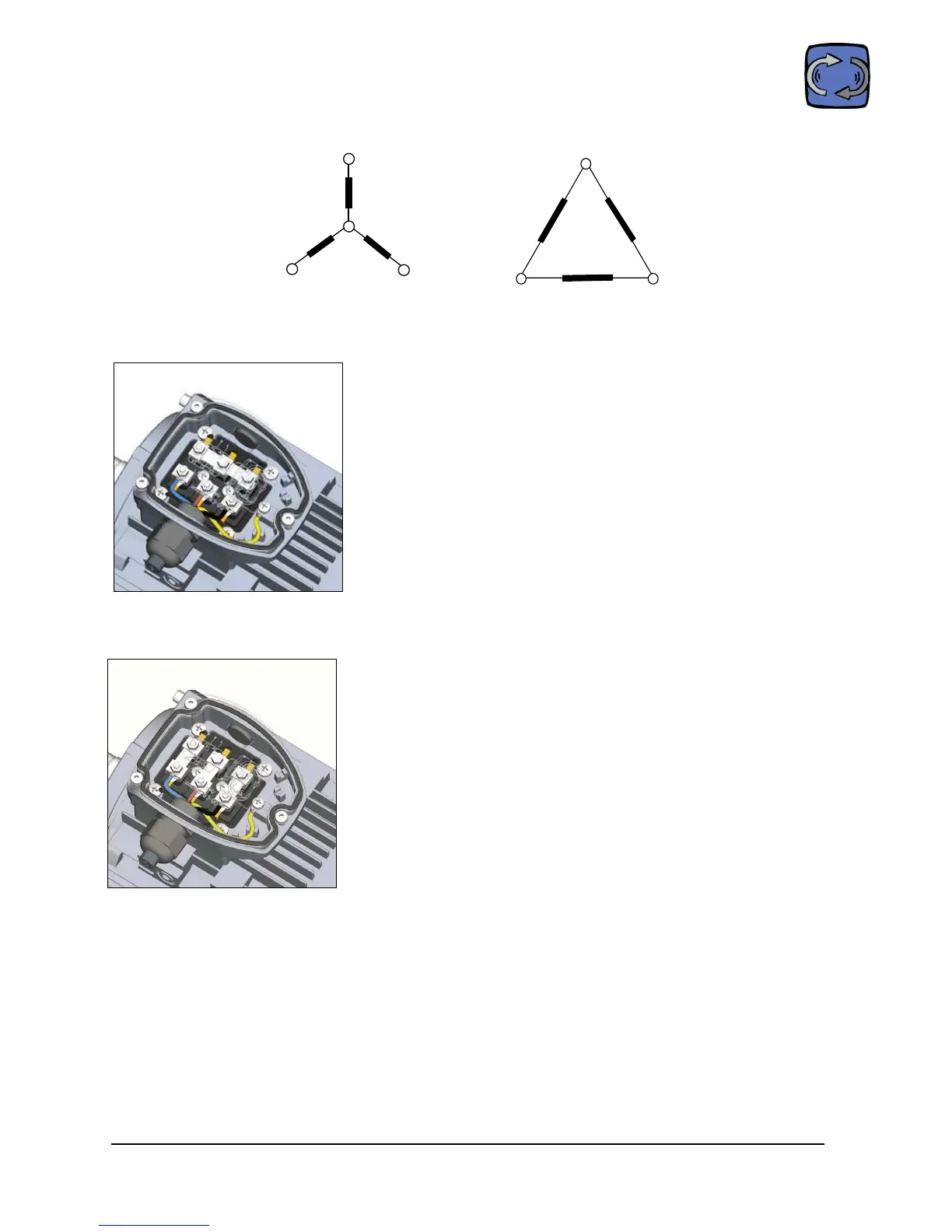

Delphi series three phase motors can be connected “Star” or “Delta” .
W1
U1
V1
W1
U1
V1
Star connection
Star connection is obtained by connecting together the
terminals W2, U2, V2 and supplying the terminals U1, V1,
W1.
Delta connection
Delta connection is obtained by connecting the end of a
phase with the beginning of the following one.
For brake motors wiring diagrams, see “AT.. Delphi series” chapter
