Status Indicator Light Identification

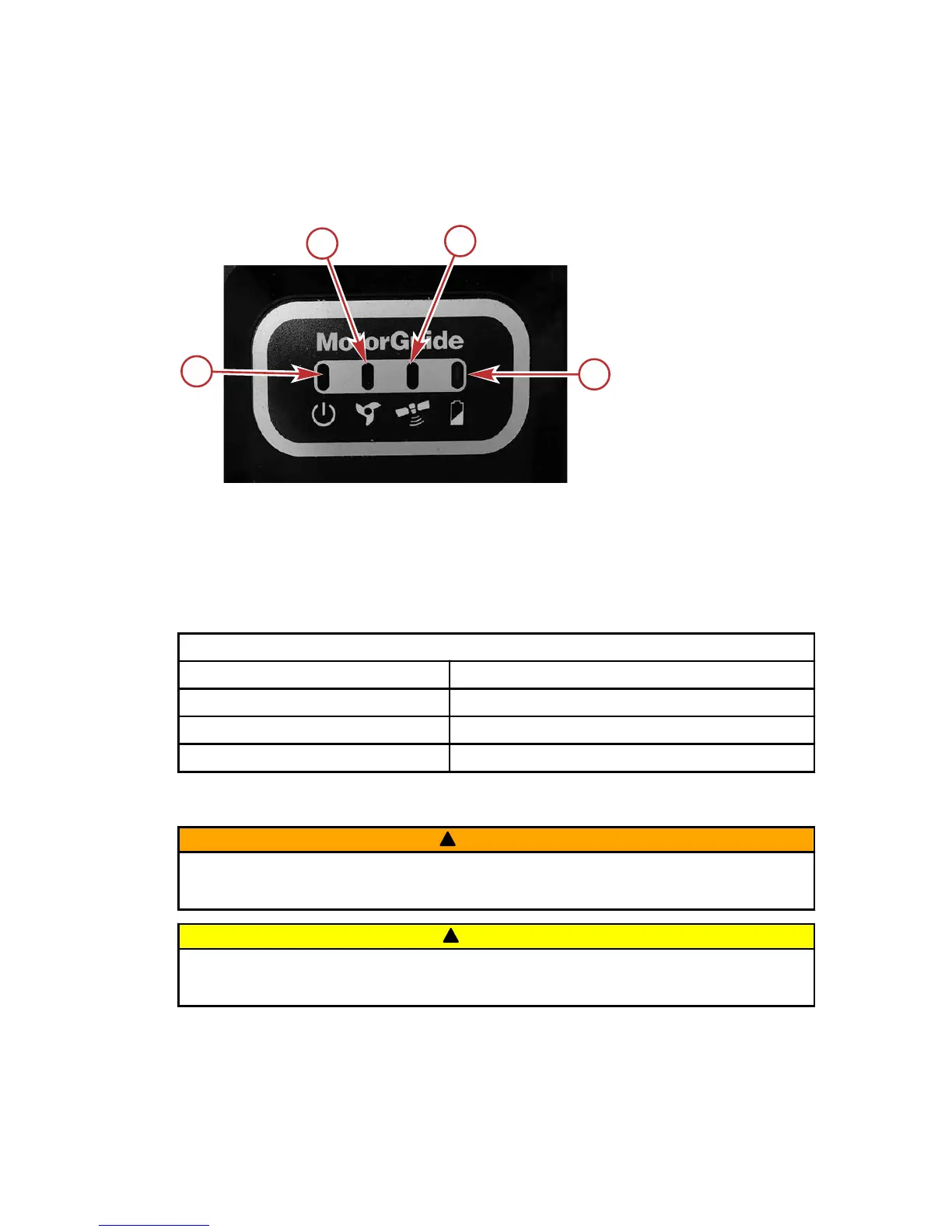

This trolling motor is equipped with a multifunction status indicator light panel. It
can display the on/off status of the motor, propeller, battery charge, and GPS
status for quick and easy reference during operation.
a - Power on/off/sleep indicator light
b - Propeller on/off indicator light
c - GPS navigation indicator light
d - Battery status light
Battery Status Light Color Code
Color Capacity
Green greater than 30%
Red less than 30%
Flashing red less than 10%
Stowing and Deploying the Trolling Motor
!
WARNING
Rotating propellers can cause serious injury or death. Never start or operate
the motor out of water.
!
CAUTION
Moving parts, such as hinges and pivot points, can cause serious injury.
Keep away from moving parts when stowing, deploying, or tilting the motor.
STOWING THE TROLLING MOTOR
1. Ensure the propeller is not running.
2. Ensure there is sufficient clearance around the trolling motor before
rotating the motor into stowed position.
