16 AP6522 Access Point
5. Attach an Ethernet cable from the access point to a controller with an 802.3af compatible power source
or use the PWRS-14000-148R power supply to supply power to the AP6522 (once fully cabled).
6. Attach appropriate antennas to the connectors.
7. Attach an Ethernet cable from the access point to the controller with an 802.3af compatible power source.
8. Verify the unit has power by observing the LEDs.
CAUTION If not using an 802.3af capable controller to power the AP6522,
ensure only the AP6522’s designated power supply
(PWRS-14000-148R) is used to supply power to the access point.
Using an incorrectly rated power supply could damage the unit and
void the product warranty. Do not actually connect to the power
source until the cabling portion of the installation is complete.

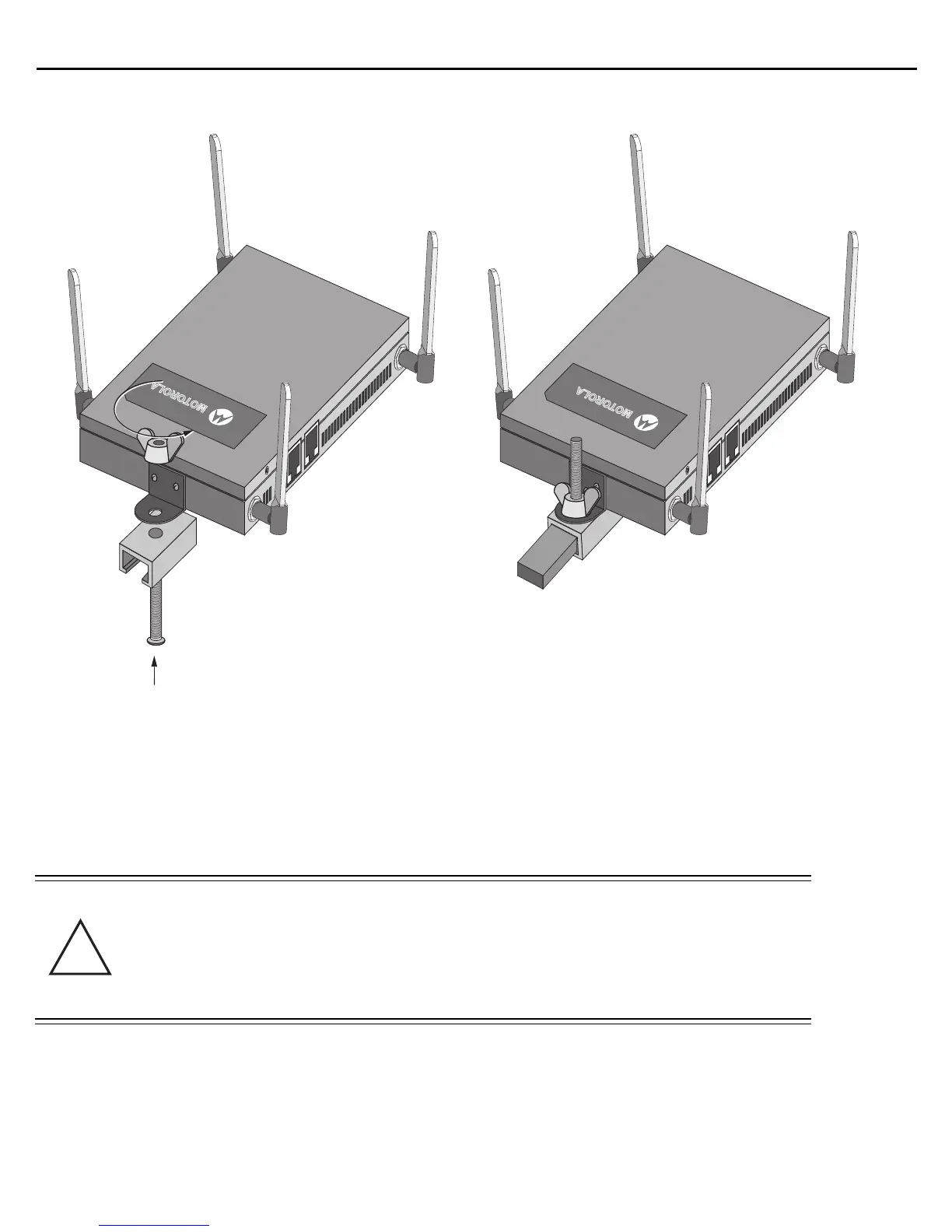

RADIO2-1 RADIO1-0
DC 12V GE1/PoE Console
RADIO2-1 RADIO1-0
DC 12V GE1/PoE Console
