28 AP6522 Access Point

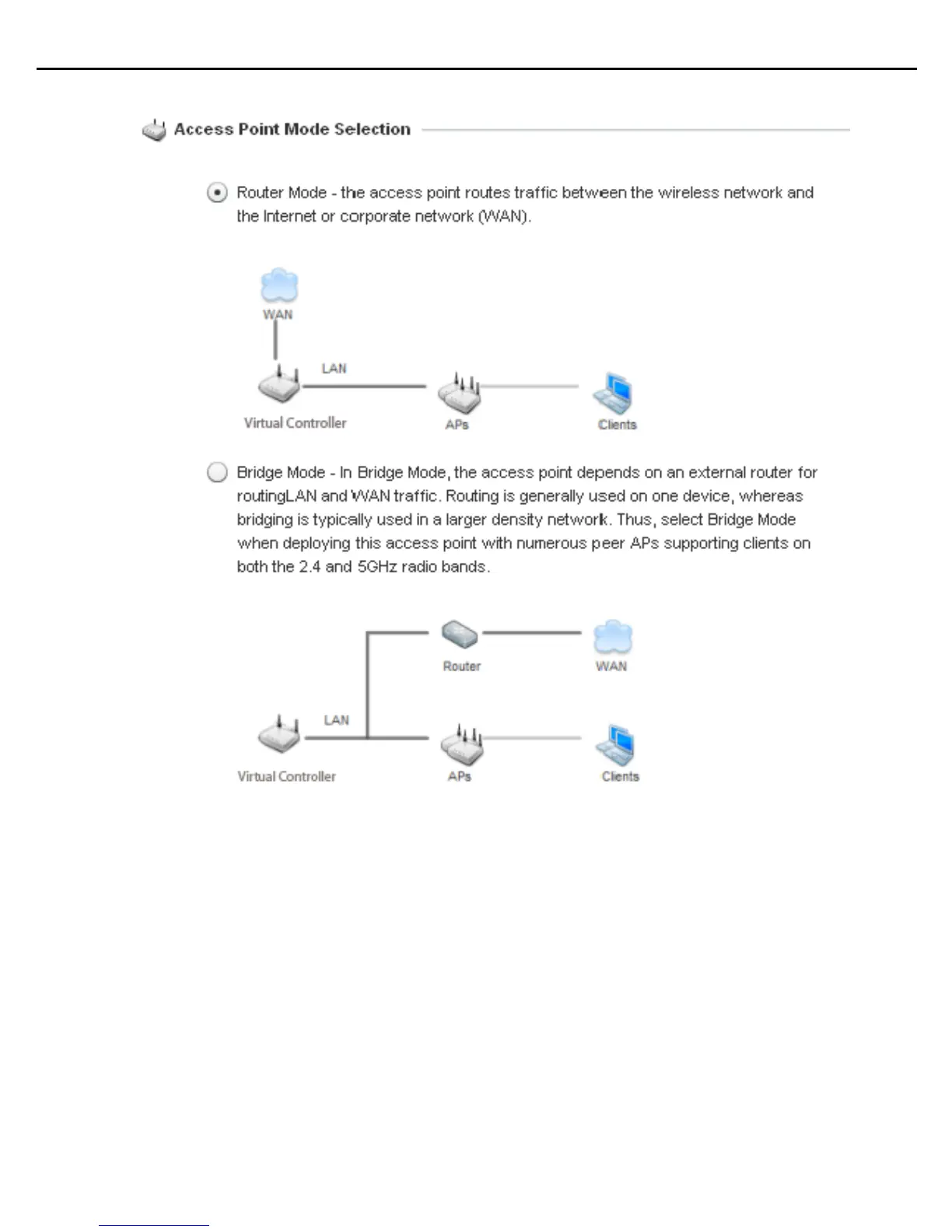

12. Select an Access Point Mode from the available options.
• Router Mode - In Router Mode, the access point routes traffic between the local network (LAN) and
the Internet or external network (WAN). Router mode is recommended in a deployment supported by
just a single access point.
• Bridge Mode - In Bridge Mode, the AP depends on an external router for routing LAN and WAN traffic.
Routing is generally used on one device, whereas bridging is typically used in a larger network. Thus,
select Bridge Mode when deploying this access point with numerous peer APs supporting clients on
both the 2.4 and 5GHz radio bands.
13. Select Next. The Initial AP Setup Wizard displays the LAN Configuration screen to set the access
point's LAN interface configuration.
