English

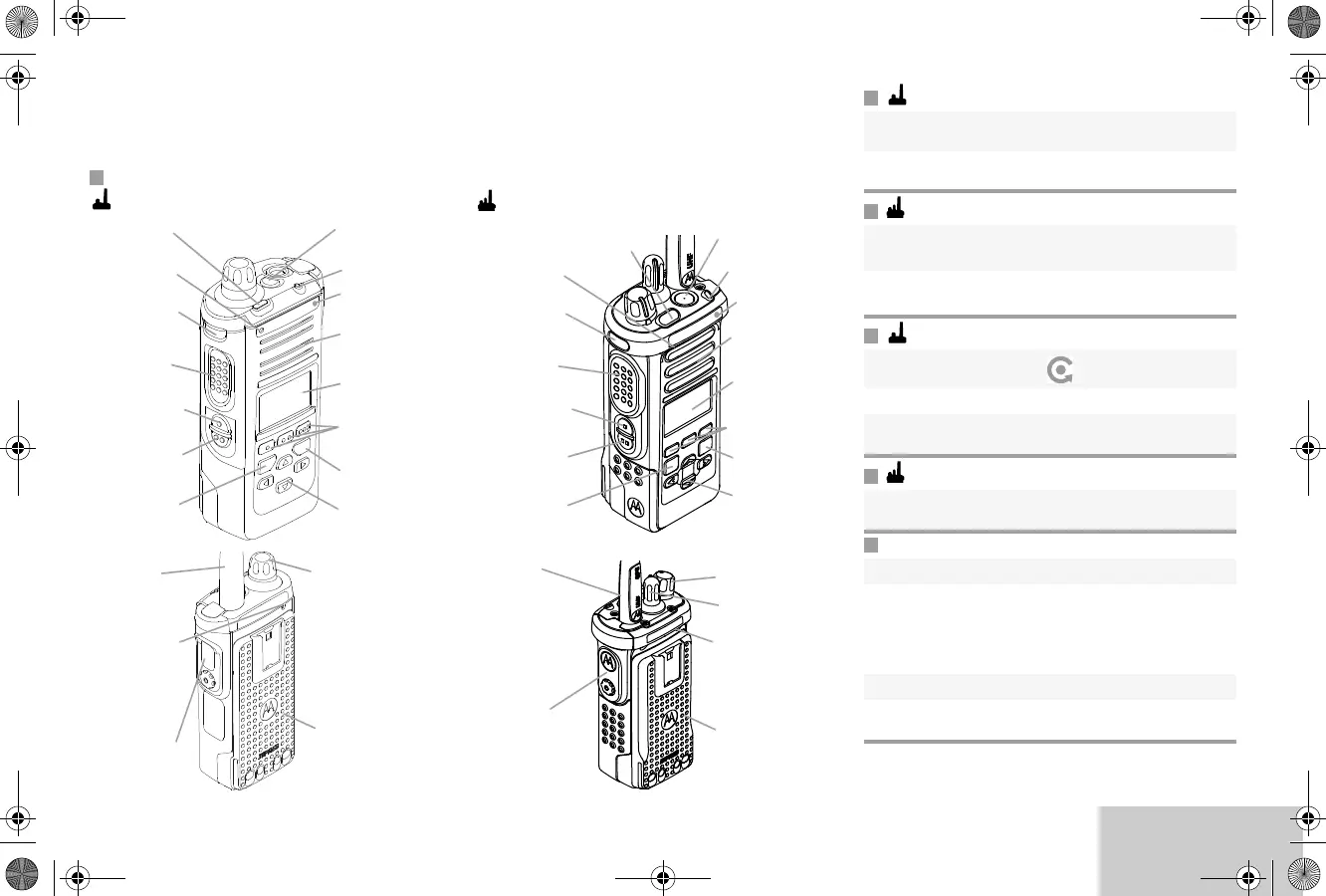

Radio Controls
Single Knob Radio
Two Knobs Radio
Radio On/Off
Radio On/Off
Select Zone and Channel
Select Zone and Channel
Receiving and Transmitting
Data Feature
Button
Side Button 1
__________
Side Button 2
__________
PTT Button
Microphone
Top Lightbar
Indicator
Top Side (Select)
Button
__________
Main
Speaker
Main Display
Top (Orange) Button
___________
LED
Menu Select
Buttons
4-Way Navigation
Button
Home Button
Bluetooth Pair
Location Indicator
Battery
Multi Function Knob
(MFK):
Primary Feature:
_________________
Secondary Feature:
_________________
Accessory
Connector
Microphone
Antenna
Data Feature
Button
Side Button 1
__________
Side Button 2
__________
PTT Button
Microphone
Top Lightbar
Indicator
Top Side (Select)
Button
__________
Main
Speaker
Main Display
Top (Orange) Button
___________
LED
Menu Select
Buttons
4-Way
Navigation
Button
Home Button
Bluetooth Pair
Location Indicator
Battery
Accessory
Connector
Microphone
Antenna
On/Off/Volume
Control Knob
16-Position Select
Knob
• On – Press and hold the MFK until the display
lights up.
• Off – Press and hold the MFK until you see Power
off?, then press Menu Select button below Yes.
• On – Rotate the On/Off/Volume Control Knob
clockwise until you hear a click.
• Off – Rotate the On/Off/ Volume Control Knob
counterclockwise until you hear a click.
1 Press the MFK to see on the screen.
2 Turn the MFK to scroll to desired zone or channel.
3 Press MFK to select the desired zone or channel
and exit Mode Change.
1 Rotate the preprogrammed 16-Position Select
Knob to the desired channel.
1 Select zone/channel.
2 Listen for a transmission.
OR
Press and hold Volume Set button.
OR
Press Monitor button and listen for activity.
3 Adjust volume, if necessary.
4 Press the PTT button to transmit; release to
receive.
m ASTRO
®
APX™ 2000 Model 2 Digital Portable Radios Quick Reference Card
RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only. Before using the radio, read the RF Energy Exposure and Product Safety Guide for Portable
Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with
applicable standards and Regulations.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license.
All other trademarks are the property of their respective owners. © 2013–2015 by Motorola Solutions, Inc. All Rights Reserved.
