ASTRO
®
6000XE Series
Digital Portable Radios
Quick Reference Card
RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only. Before using
the radio, read the RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios which contains important
operating instructions for safe usage and RF energy awareness
and control for Compliance with applicable standards and
Regulations.

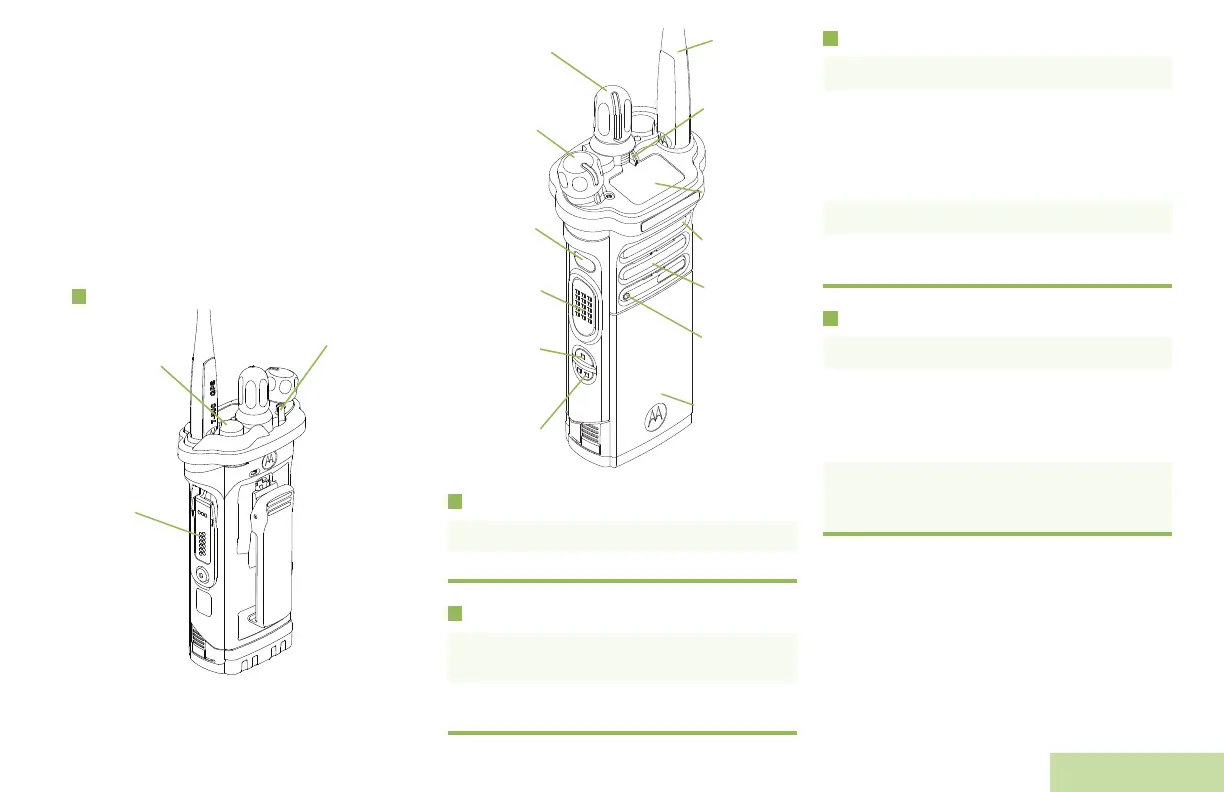

Radio Controls
Radio On/Off
Zones and Channels
Receiving and Transmitting
Sending an Emergency Alarm
*Default timer of Emergency button press to
activate Emergency is 50 milliseconds. This
timer is programmable, see Emergency
Operation in the user guide for details.
To exit emergency at any time, press and hold
the Emergency button.
3-Position A/B/C Switch
__________________
Accessory
Connector
Top (Orange)
Button
__________
• On – On/Off/Volume knob clockwise.
• Off – On/Off/Volume knob counterclockwise.
• Zone – Toggle the Zone switch or use the radio
menu to the desired zone.
• Channel – Turn the Channel knob or use the
radio menu to the desired channel.
Battery
Side Button 1
__________
Side Button 2
__________
PTT Button
On/Off/Volume
Control Knob
16-Position
Select Knob
__________
Top Side
(Select) Button
__________
Main
Speaker
Top
Display
Antenna
2-Position
Concentric
Switch
__________
Bluetooth
Pairing
Indicator
Microphone
1 Select zone/channel.
2 Listen for a transmission.
OR
Press and hold Volume Set button.
OR
Press Monitor button and listen for activity.
3 Adjust volume, if necessary.
4 Press the PTT button to transmit; release to
receive.
1 Press and hold the Emergency button*.
2 The display shows EMERGNCY and the
current zone/channel. A short, medium-
pitched tone sounds, and the LED blinks red
momentarily.
3 When acknowledgment is received, you hear
four beeps; alarm ends; and radio exits
emergency.
