6
Introduction

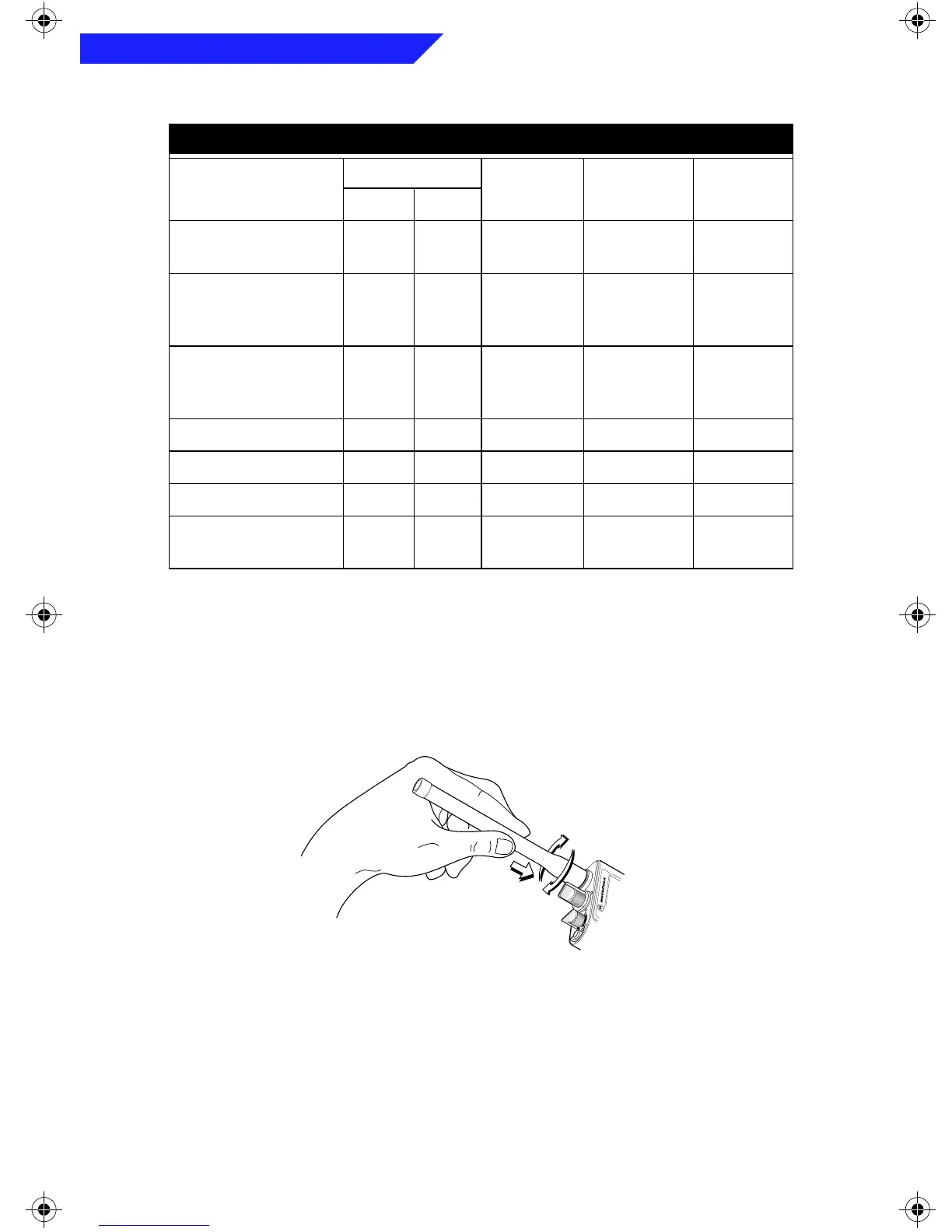

Attach the antenna to the radio by screwing the threaded end of the antenna
into the antenna receptacle on top of the radio. Rotate the antenna clockwise
until it fits firmly against the bushing. Remove the antenna by rotating it in a
counterclockwise direction until its threaded end unscrews from the radio
antenna receptacle.
Antenna Identification Table
Antenna Type Approx. Length Insulator
Color Code
Frequency
Range
Antenna
Kit No.
in. mm
VHF Wide Band
Helical
8.1 203 RED 136-174MHz NAD6563
VHF Helical 7.8
7.3
6.9
195
183
172
YELLOW
BLACK
BLUE
136-151MHz
151-162MHz
162-174MHz
NAD6566
NAD6567
NAD6568
UHF Helical 3.3
3.2
3.2
83
80
79
RED
GREEN
BLACK
403-435˙MHz
435-470MHz
470-512MHz
NAE6546
NAE6547
NAE6548
UHF Wide Band Whip 5.2 130 GREY 403-512MHz NAE6549
800MHz Whip 7 175 RED 806-870MHz NAF5037
800MHz Dipole 8 200 RED 806-870MHz NAF5039
800MHz Stubby,
Quarterwave
3.3 83 WHITE 806-870MHz NAF5042
7
9
5
3
1
1
A
Introduction Page 6 Wednesday, April 10, 1996 12:11 PM
