Disassembly/Reassembly Procedures: Radio Disassembly – Detailed 5-11

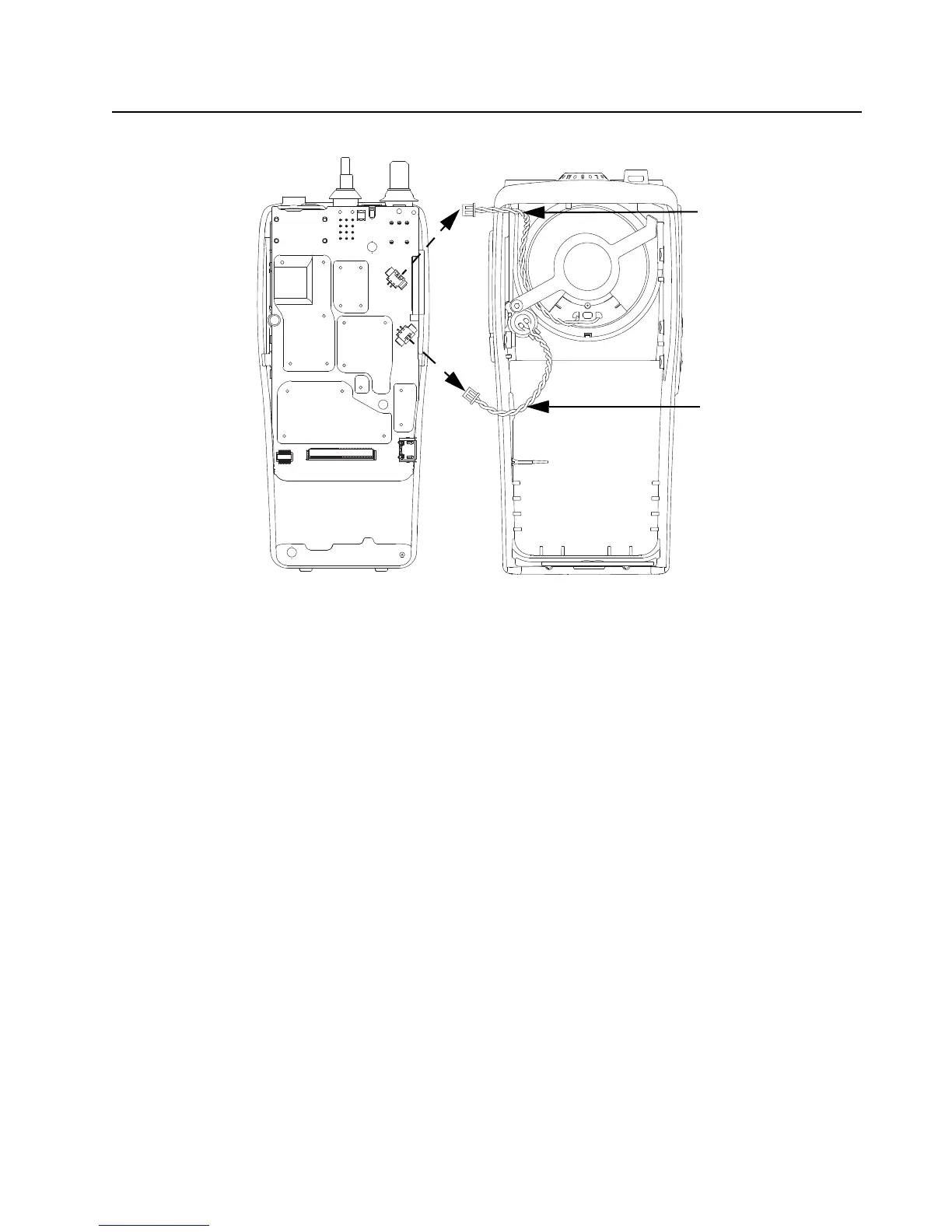

Figure 5-6. Speaker and Microphone Wires Removal
8. Rotate the chassis counterclockwise out of the housing, and position them side by side.
9. Peel off the poron pad on back kit.
10. Unplug the speaker wire and microphone wire from the 2-pin connector on the main board.
Microphone Wire
Speaker Wire
