Motorola DP1400 Series

Disassembly/Reassembly Procedures: Radio Reassembly - Detailed 5-27
5. Assemble the main board to the chassis by aligning the board to the PCB guide protruded
from the chassis, with the volume and frequency switches facing downward. The top control
seal link must be tucked under the PCB guide as shown in Figure 5-23.
.

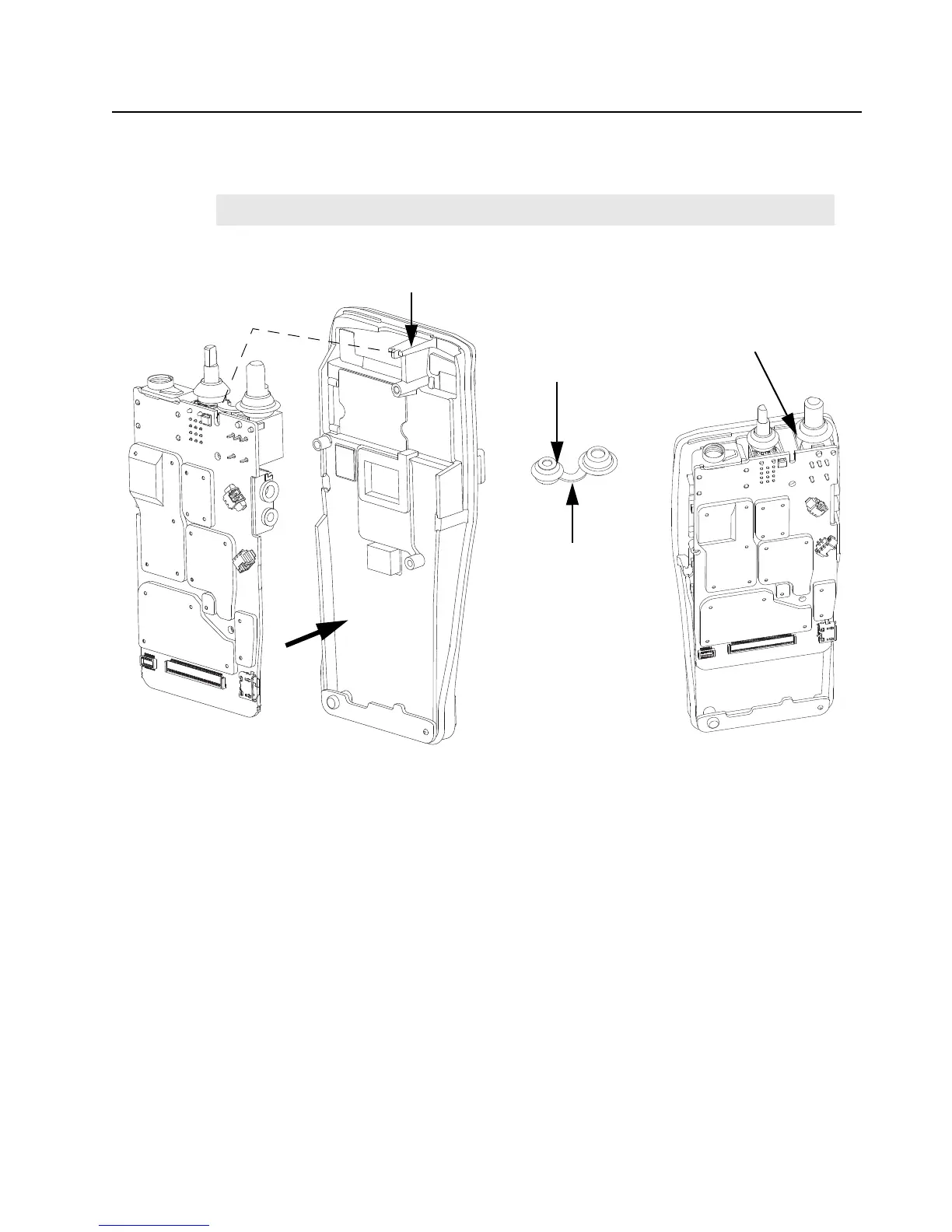

Figure 5-23. PCB and Top Control Seal Assembly
6. Align the 3 screw holes to the screw bosses on the chassis.
7. Use a T6 TORX screwdriver to fasten the screws holding the main board to the chassis.
Tighten torque should be between 3.7 to 3.9 lb/in. (refer back to Figure 5-12).
NOTE
Make sure the battery contact seal is not pinched under the chassis.
PCB Guide
Align board to
the PCB Guide
Link
Top Control Seal
Top Control Seal
must be tucked under
the PCB Guide
